MaineDOT Asset Management - Highways

Below is MaineDOT's methodology to provide a fair, structured framework to prioritize programs and projects. There are two parts - the Highway Corridor Priority (HCP), and the Customer Service Level (CSL).

See the glossary for the descriptions of each level in the priorities.

This data is available for viewing in the MaineDOT Map Viewer. Go to our " Search Map by Town" page to view maps by town.

  • Highway Corridor
    Priority (HCP)
  • Customer Service
    Level (CSL)
  • CSL Mileage
    Summary

Highway Corridor Priority (HCP)

The first part of the method, the Highway Corridor Priority (HCP), categorizes our highway assets into six levels of priorities.

Highway Corridor Priority
Miles
% Miles % Traffic Example
(click on thumbnail to view image)

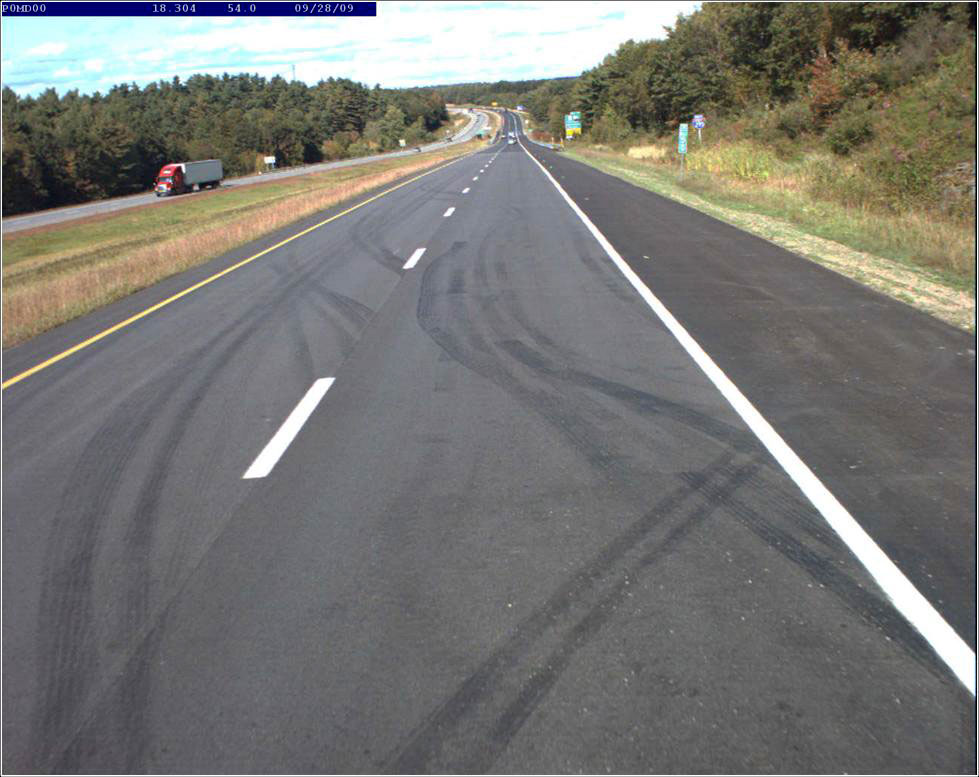

Priority 1 1873 8% 40% The Interstate and all other National Hwy System corridors, such as Brewer-Calais Rte 9, Newport-Gilead Rte 2, Houlton-Madawaska Rte 1
Priority 1 Highway

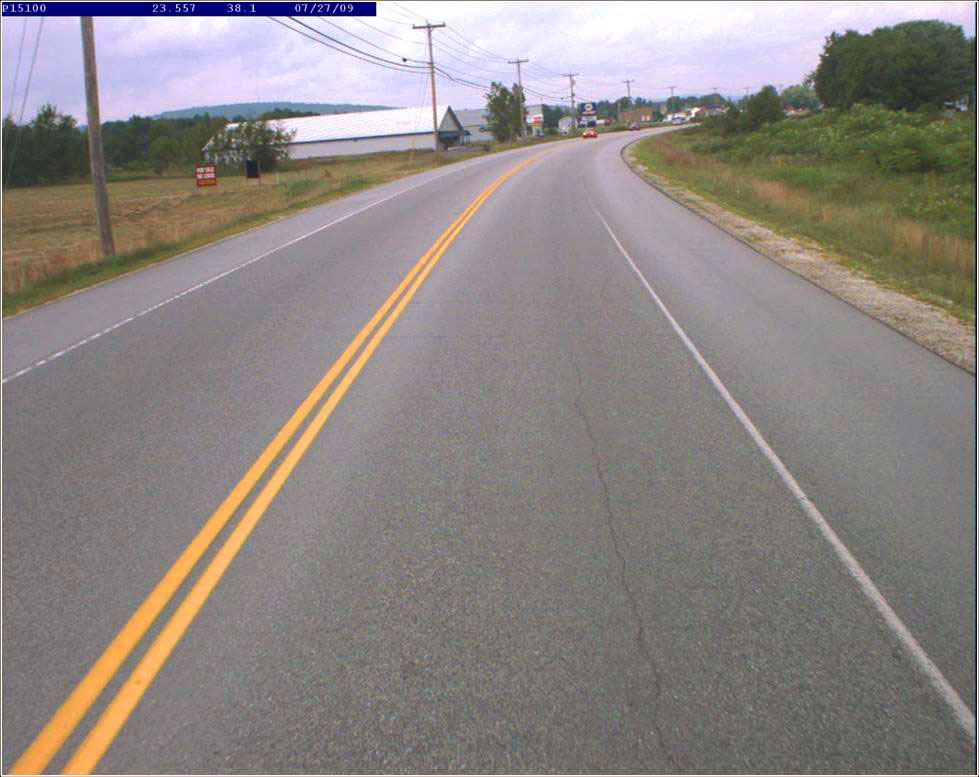

Priority 2 1251 5% 18% High-priority, non-NHS such as Caribou-Ft. Kent Rte 161, Bangor-Greenville Rte 15, Ellsworth-Eastport Rte 1, Farmington to Rangeley Rte 4 Priority 2 Highway

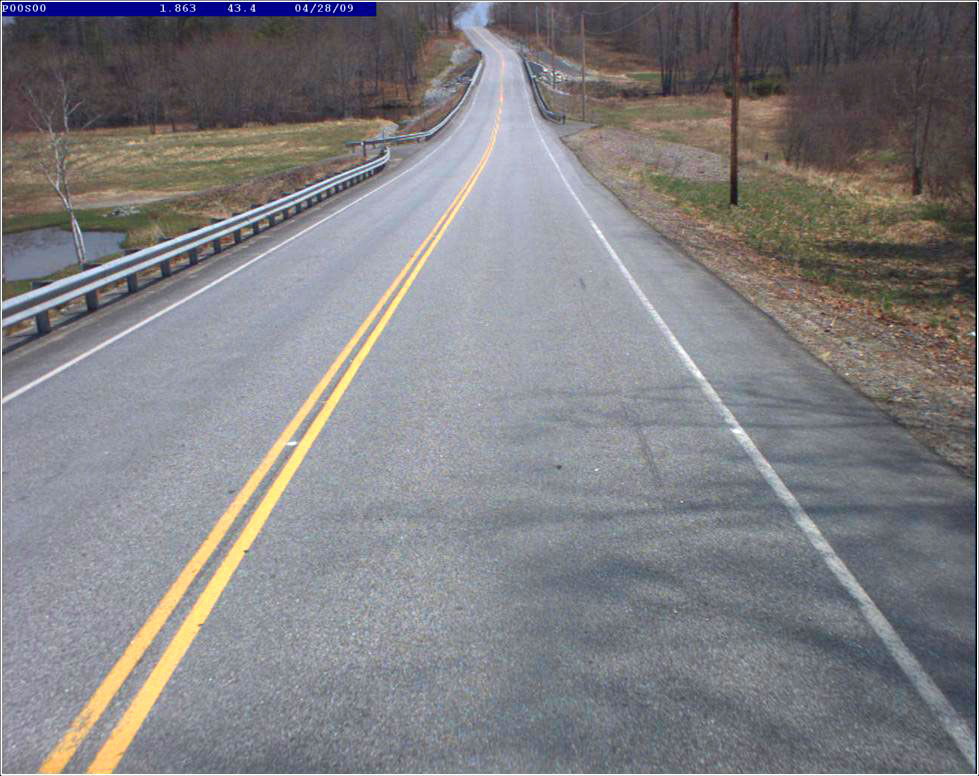

Priority 3 1257 5% 12% China-Hampden Rte 202, Cornish-Fryburg Rte 5, Lincoln-Topsfield Rte 6, Baileyville to Houlton Rte 1 Priority 3 Highway

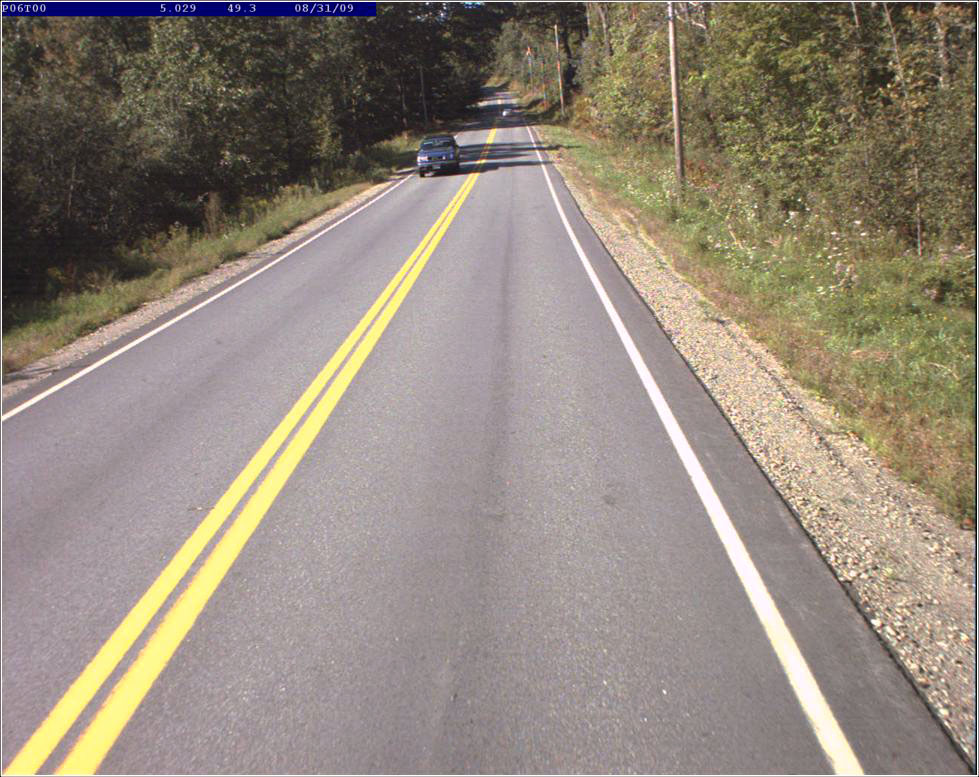

Priority 4 4670 20% 17% Major/Minor Collectors not included above (including 3 miles of marine highway) Priority 4 Highway

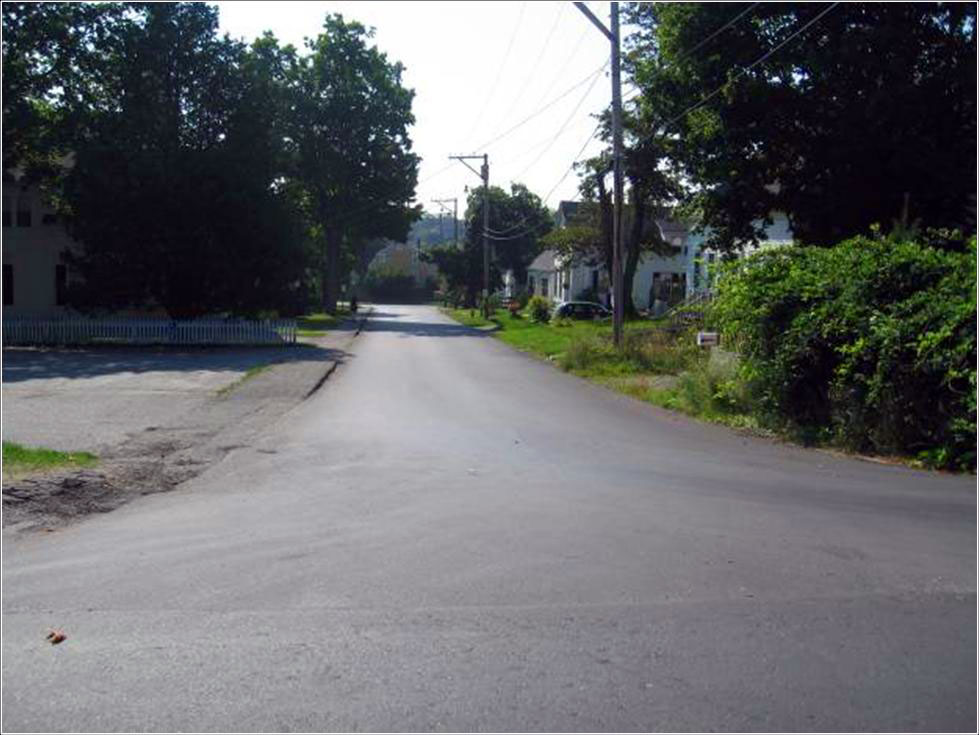

Priority 6 14446 61% 13% Local Roads & Streets Priority 6 Highway
* Data based on 2021 asset inventory.

Customer Service Level (CSL)

The second part of the method is determining the Customer Service Level (CSL) that measures MaineDOT managed highway assets (Priority 1-5) in three areas. The CSL uses customer-focused engineering measures to track highway (1) Safety, (2) Condition and (3) Serviceability, and grades them similar to a report card (A – F). The information below lists the individual measures that make up the overall service level grade. To view this data in our map viewer, click on a header below.

Safety

Condition

Service

CSL Mileage Summary Charts

Highway Corridor Priority and Customer Service levels are overlaid to show an aggregated state-wide view of the different priority roads with their corresponding service levels. Percentages do not reflect highway assets not managed by MaineDOT. The data below reflects the 2014 inventory.

CSL by HCP
Current Highway CSL Miles by Priority
Updated for projects with Construction Complete Actual dates on or before Monday, June 07, 2021.




Condition
HCP
A
B
C
D
F
Total
1 442 343 443 157 109 1,494 7% 10% 30% 23% 30%
2 316 291 274 215 125 1,219 10% 18% 22% 24% 26%
3 488 366 220 125 43 1,242 3% 10% 18% 29% 39%
4 2,059 1,540 632 298 124 4,653 3% 6% 14% 33% 44%
Total 3,304 2,539 1,569 794 401 8,608 5% 9% 18% 29% 38%
Condition chart



Safety
HCP
A
B
C
D
F
Total
1 208 569 367 244 126 1,513 8% 16% 24% 38% 14%
2 158 459 336 202 83 1,239 7% 16% 27% 37% 13%
3 347 428 288 129 62 1,255 5% 10% 23% 34% 28%
4 716 1,635 1,059 805 453 4,668 10% 17% 23% 35% 15%
Total 1,429 3,092 2,049 1,381 724 8,675 8% 16% 24% 36% 16%
Safety Chart



Service
HCP
A
B
C
D
F
Total
1 1,116 333 57 2 5 1,513 0% 0% 4% 22% 74%
2 947 223 54 9 6 1,239 1% 1% 4% 18% 76%
3 1,010 166 29 47 3 1,255 0% 4% 2% 13% 80%
4 2,201 78 2,188 200 1 4,668 0% 4% 47% 2% 47%
Total 5,274 800 2,328 258 15 8,675 0% 3% 27% 9% 61%
Service Chart
