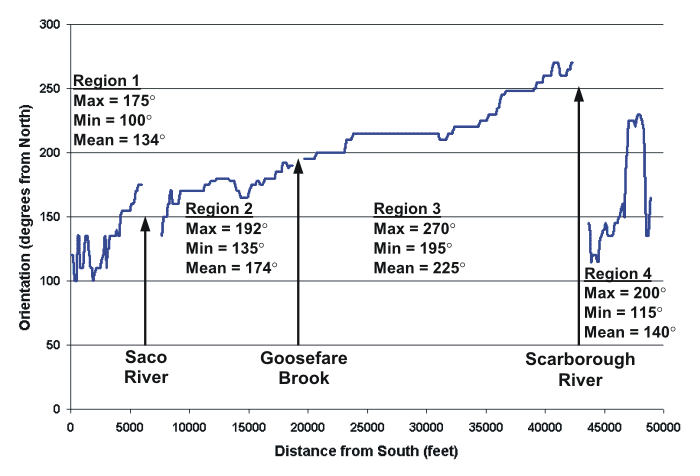

Figure 6. Longshore variation of coastline orientation (meteorological convention, degrees from North). Note the dramatic increase in orientation within region 1 (0-6,000 ft), and the gradual increase in orientation through regions 2 and 3.
