Desert Road Photo Gallery
February 2024

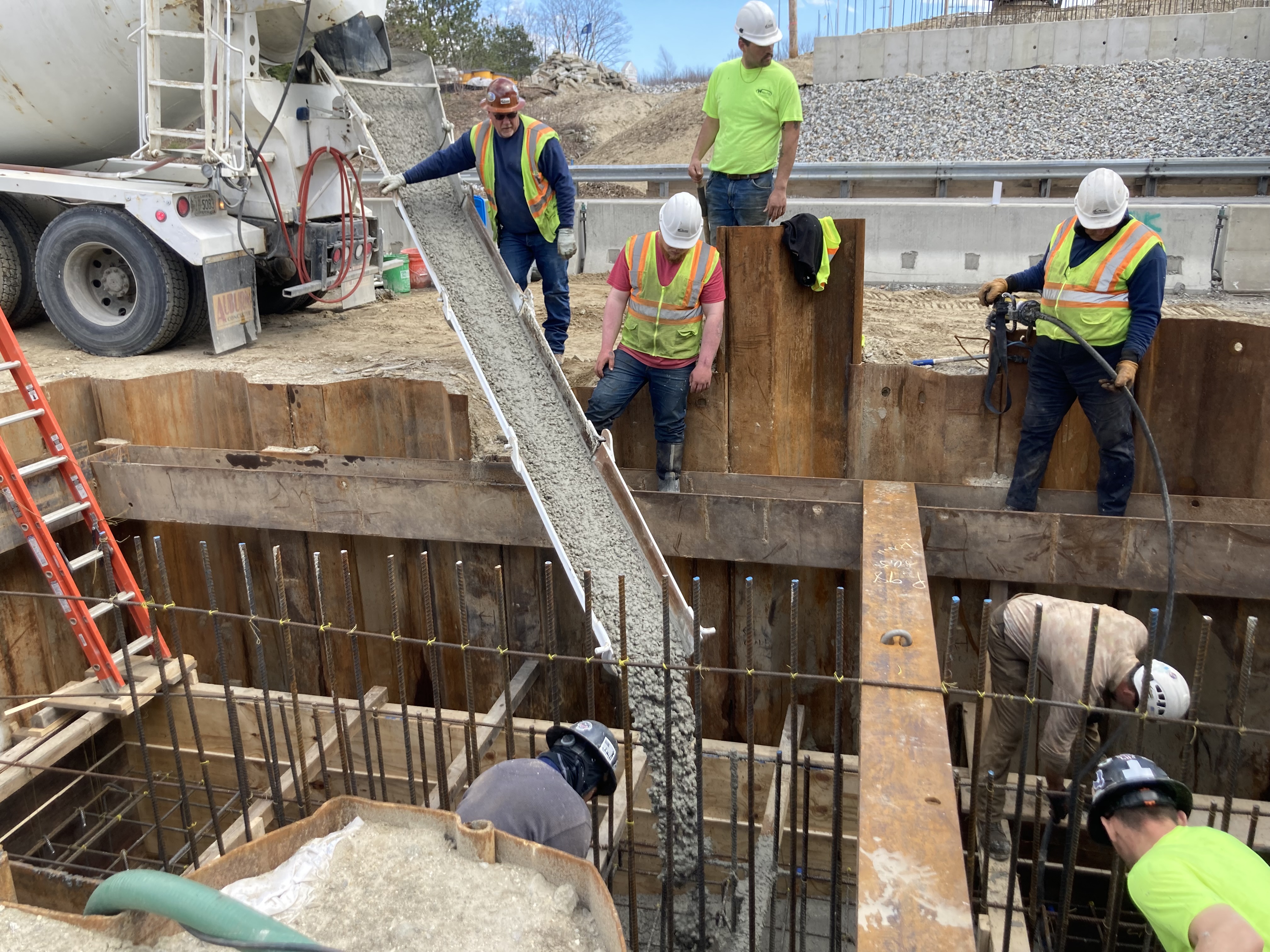

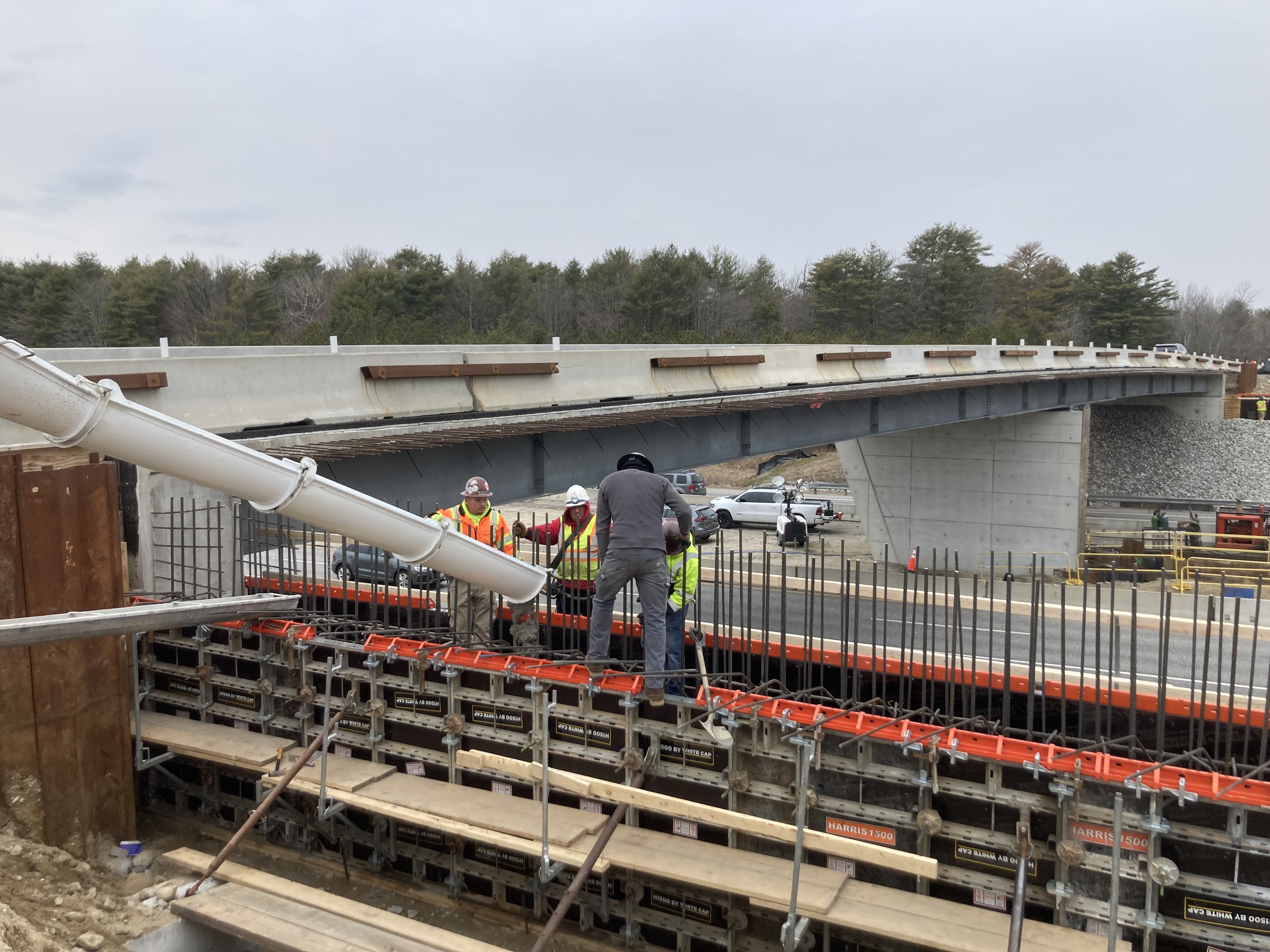

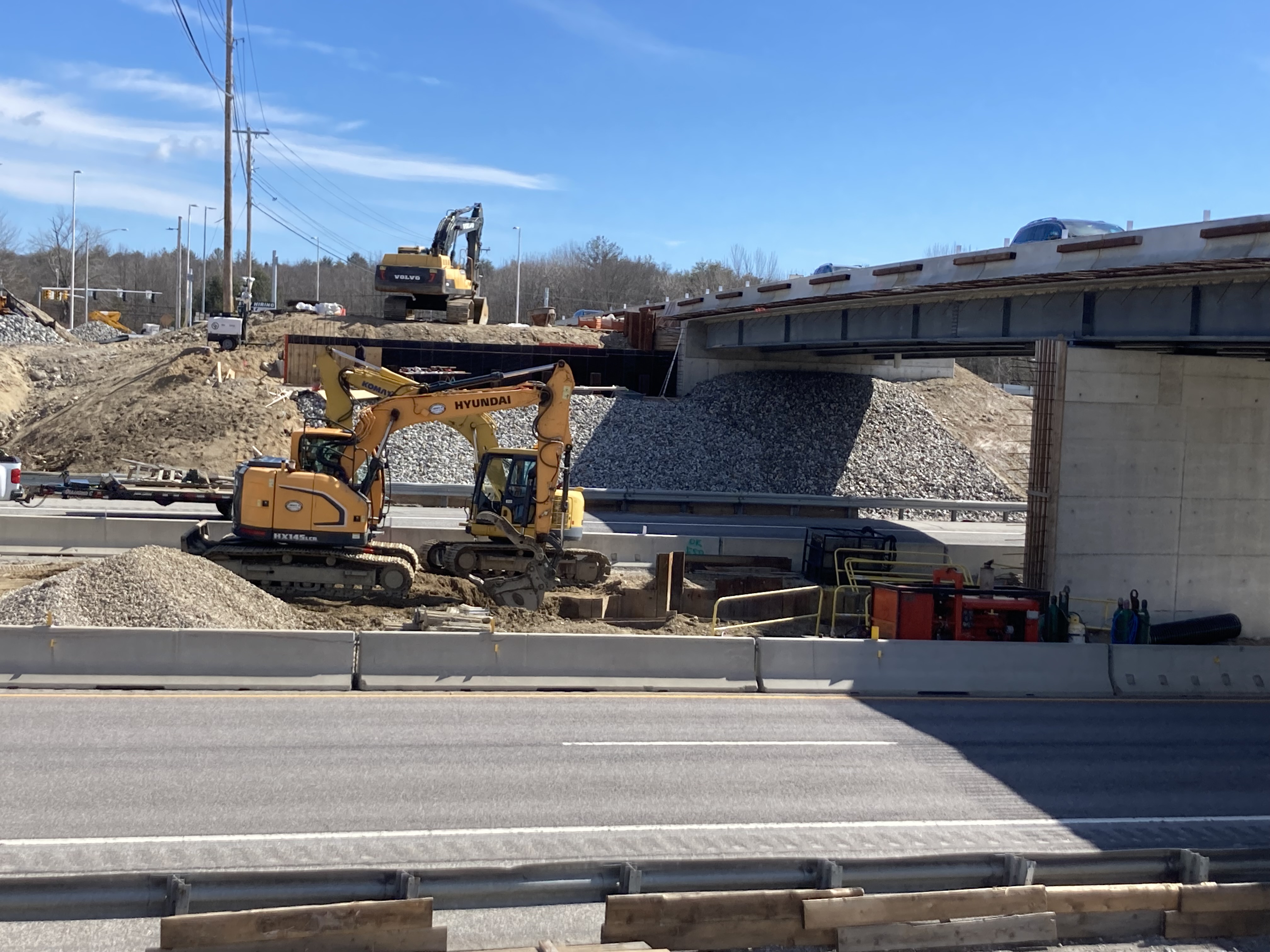

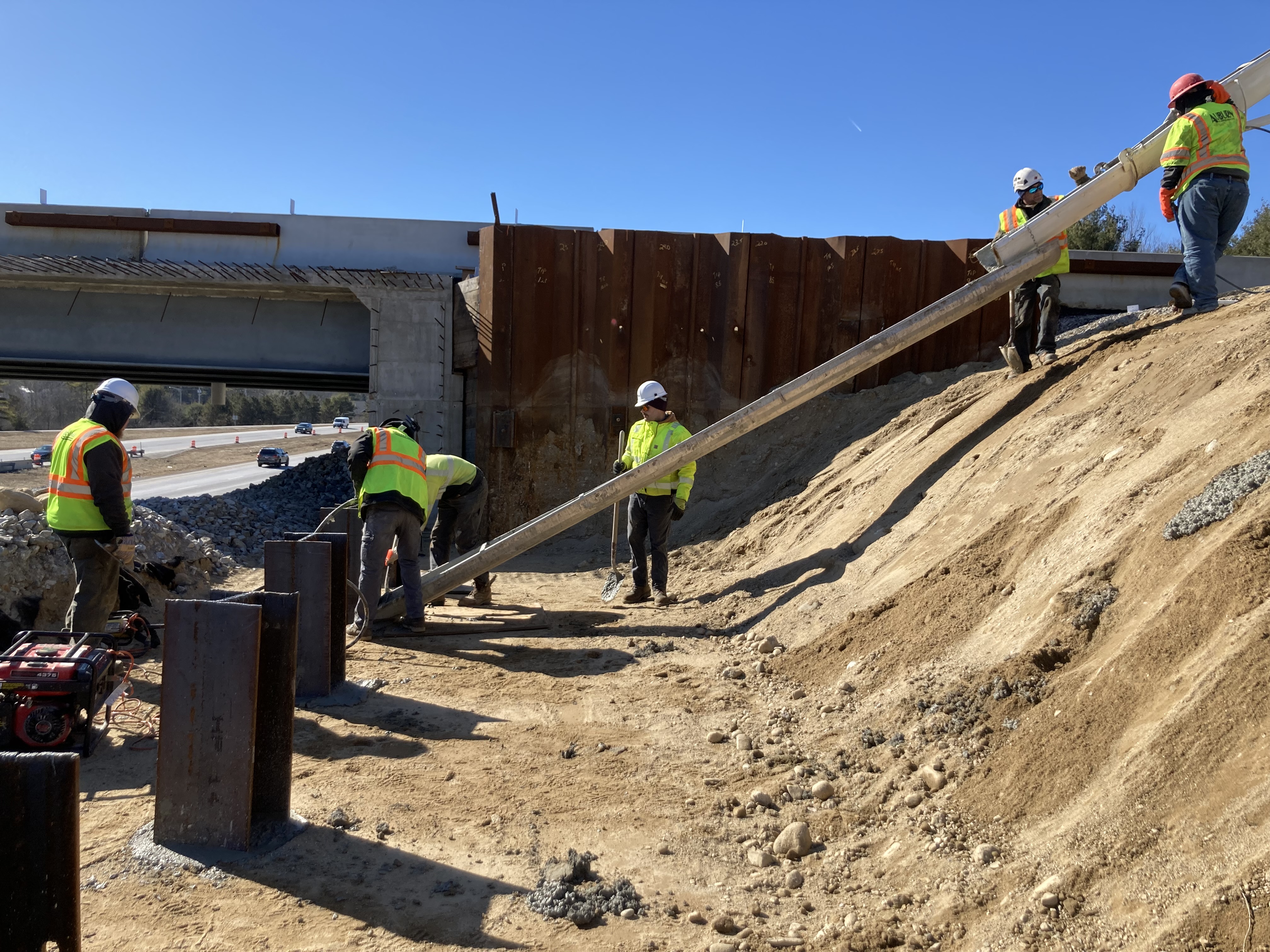

H-Piles were successfully set and driven for Abutment 1 Phase 2, alongside the installation of 3’ diameter pile sleeves at both Abutment 1 and 2, which were subsequently filled with concrete. Additionally, the installation of light poles and mast arm poles was completed, along with ongoing intersection signal improvements. Excavation for the center pier was initiated, while preparations for driving piles at the center pier commenced. Formwork and rebar tying for Abutments 1 and 2 were initiated, and mast arms for signal installation at the intersection of the northbound ramps and Desert Rd were installed. Phase 2 pier H-Piles were driven, phase 2 Abutment 2 concrete was placed, and form and rebar work for phase 2 Abutment 1 was ongoing.
February 2024

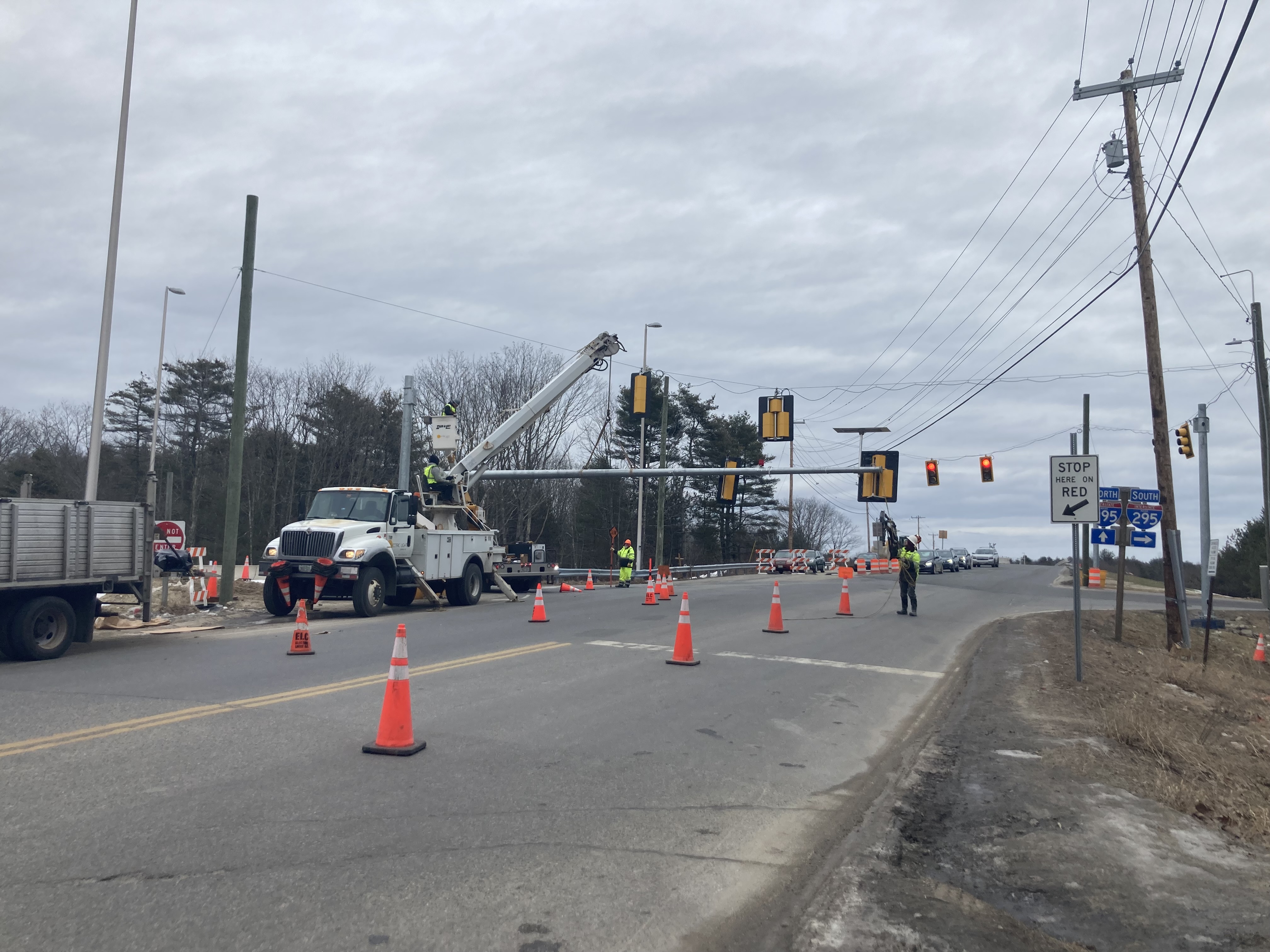

Crews working on Desert Road site have installed a traffic signal mast arms at the intersection with the south bound ramps and Desert Road. Workers have continued with highway lighting improvements and driving stage 2 H-piles for abutment 2.
January 2024

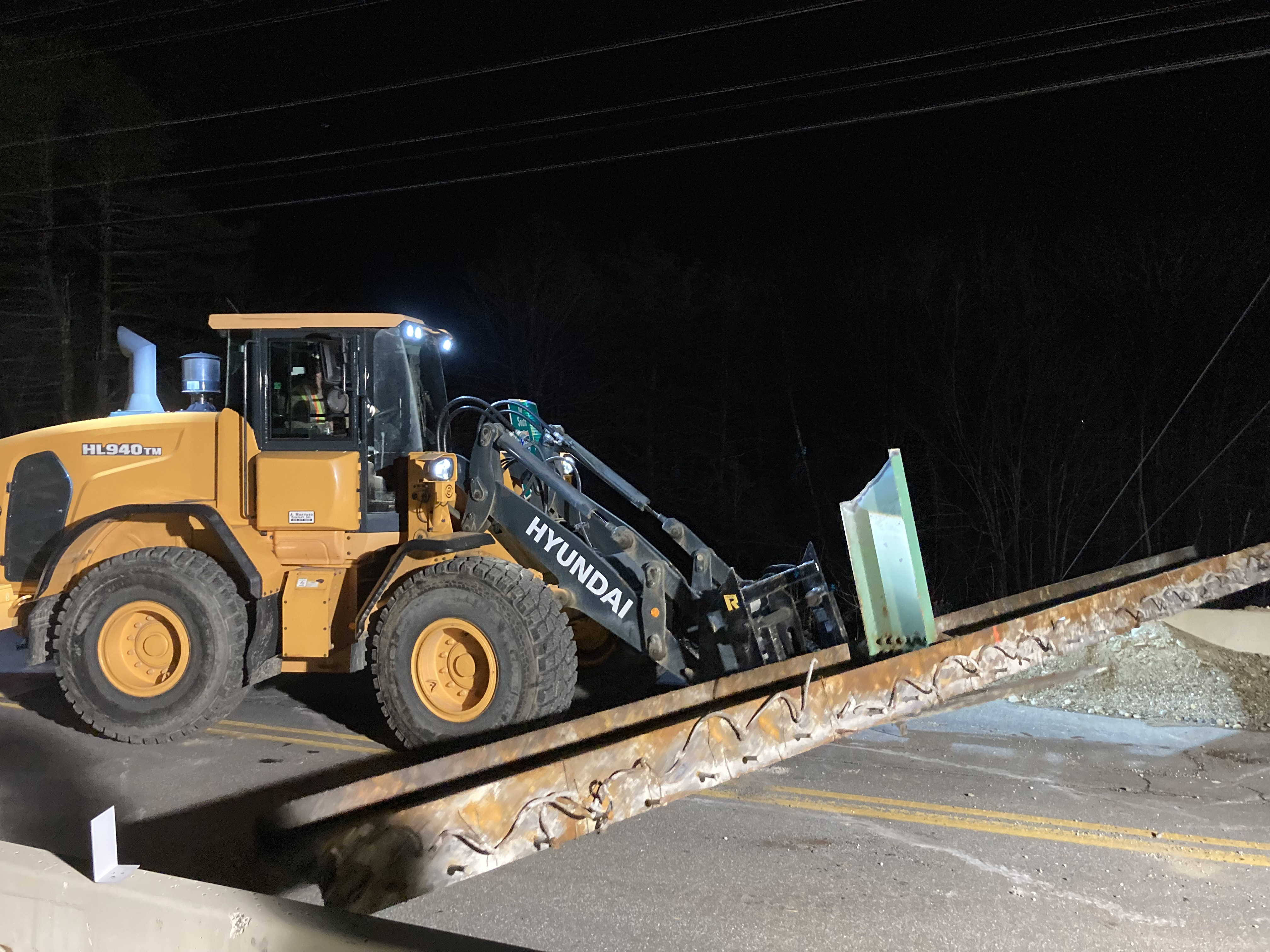

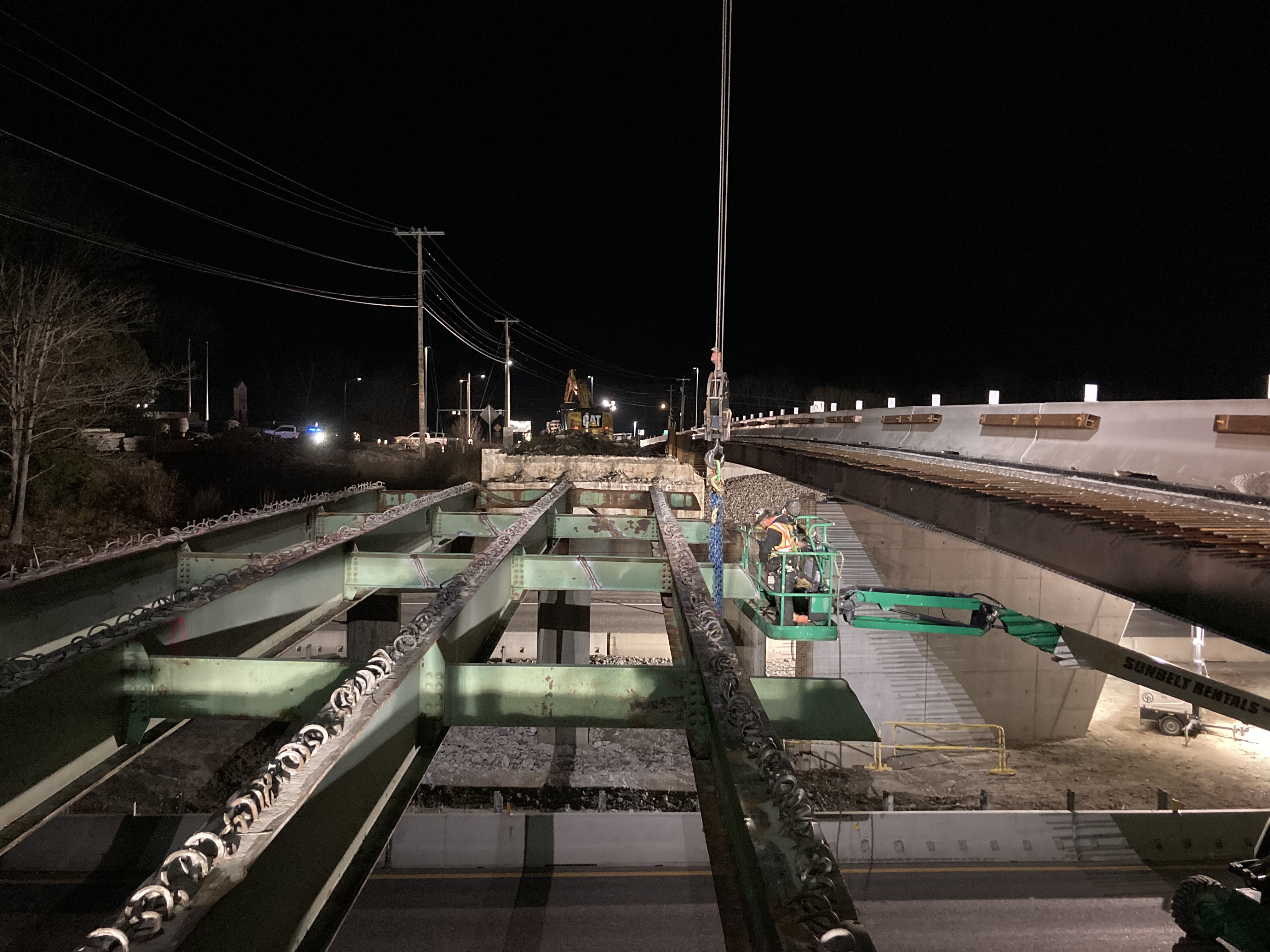

Crews continued to remove stage 2 structural beams from the existing bridge and began stage 2 removal of both abutments and approach slabs. Workers continued stage 2 demo of existing bridge. Electric Light worked on installing various light pole foundations.
December 2023

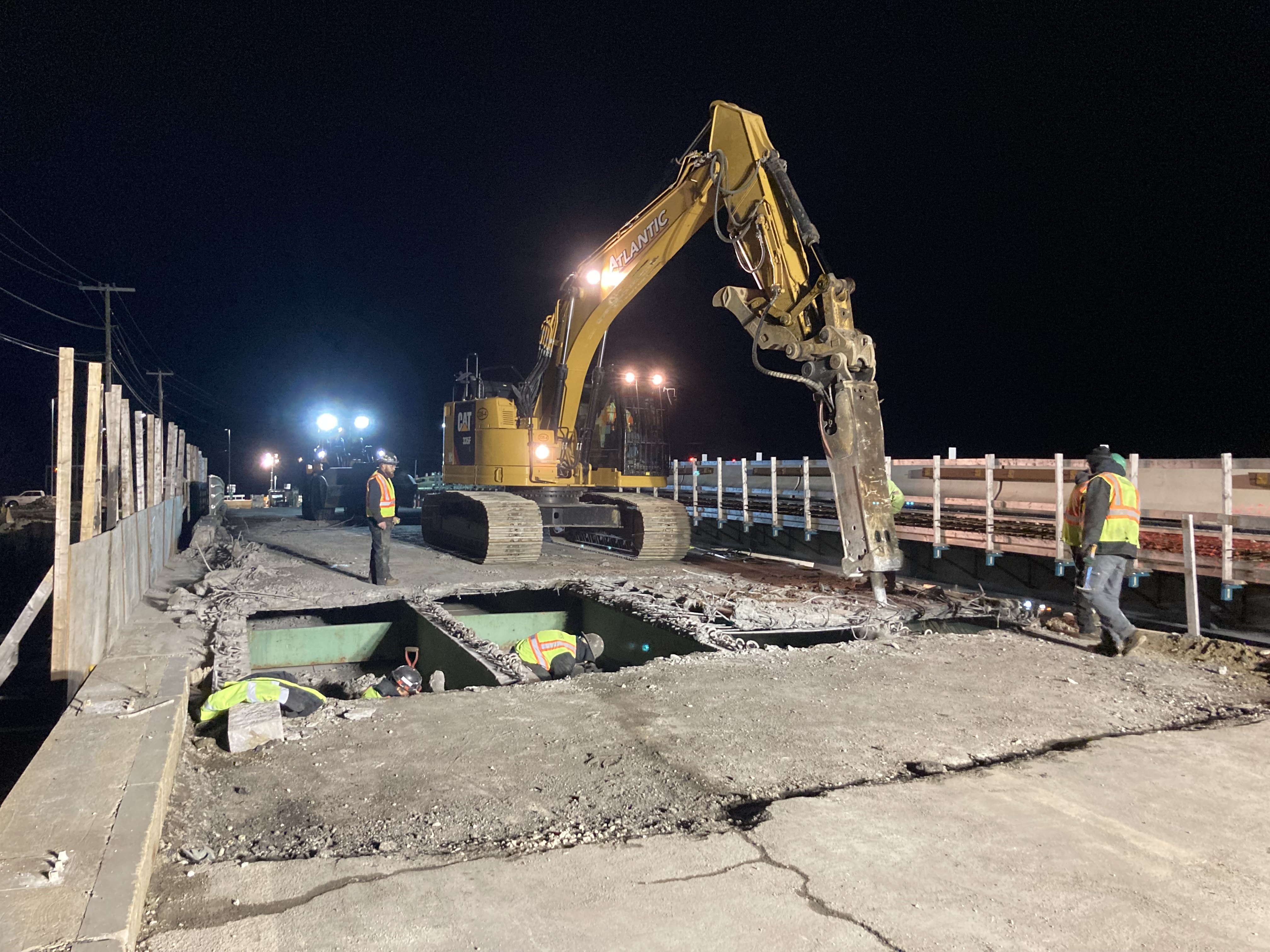

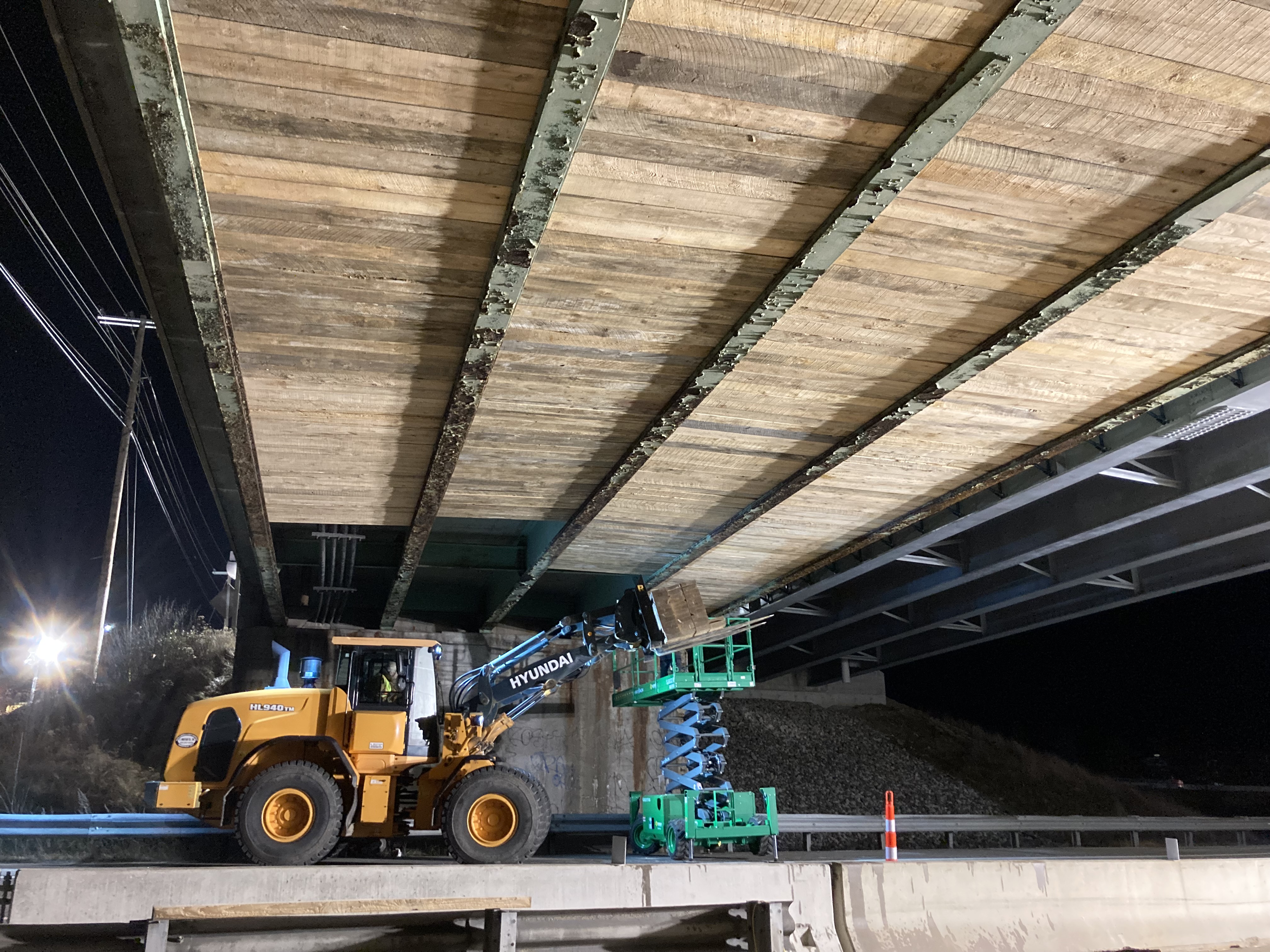

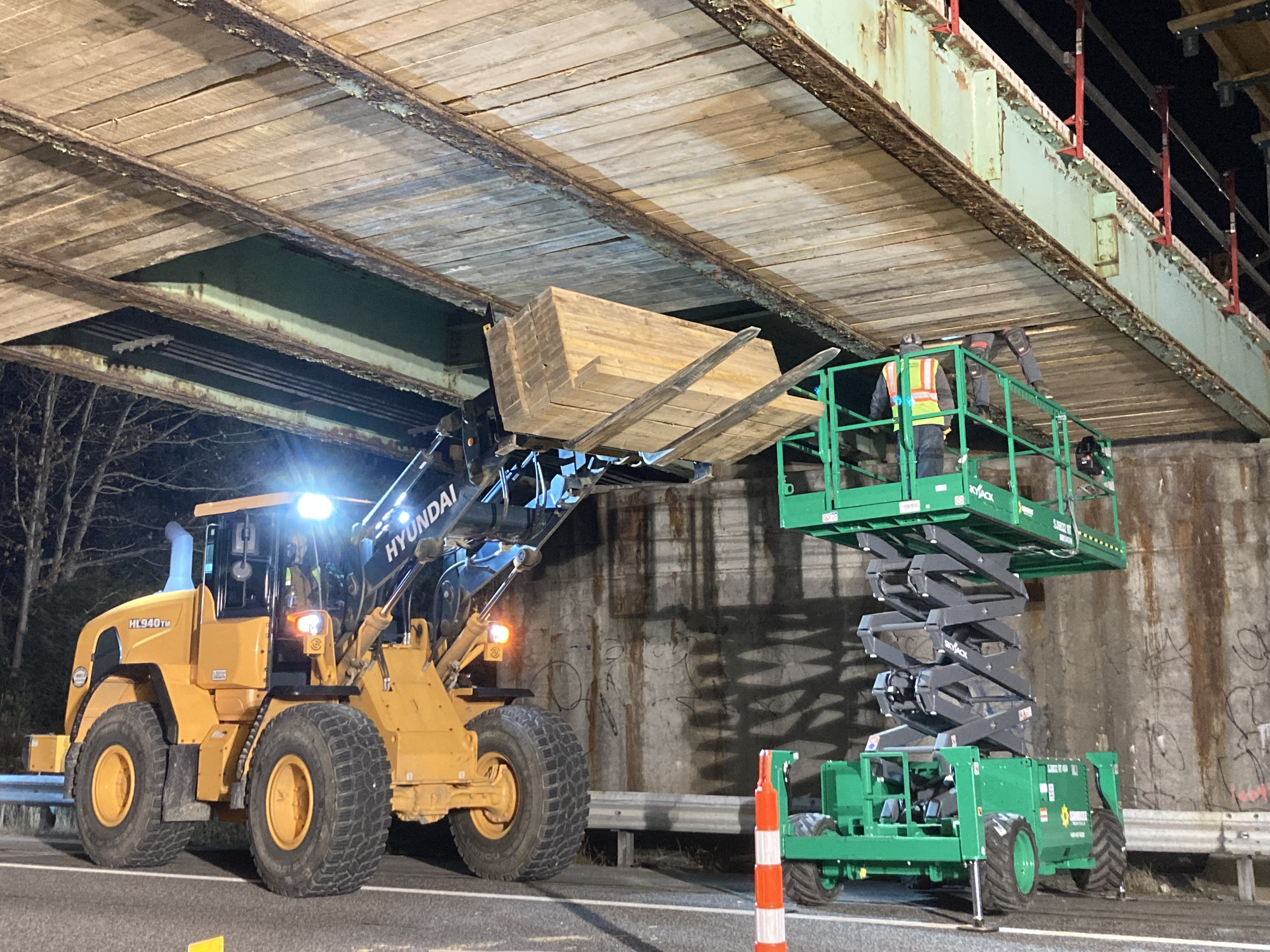

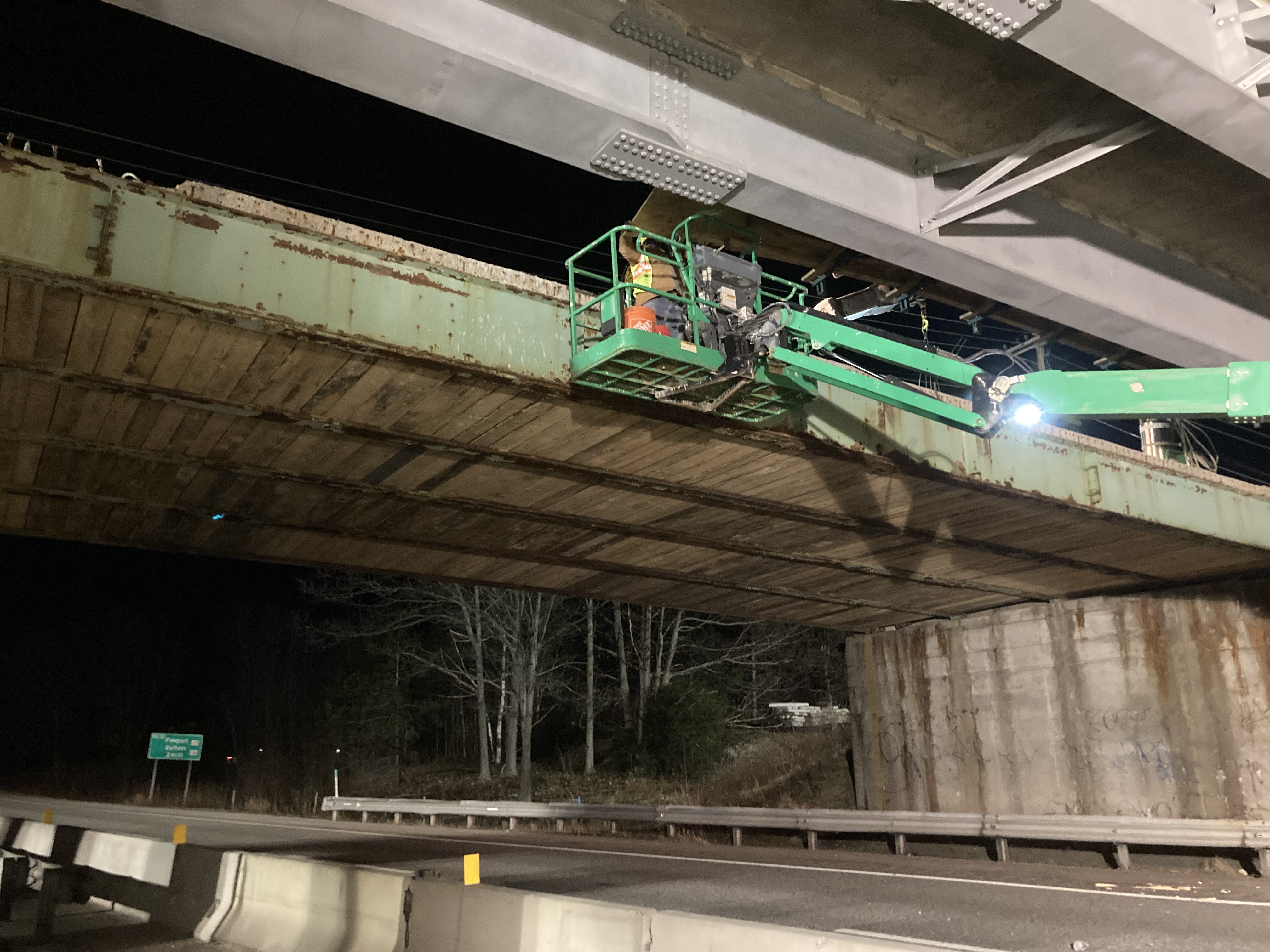

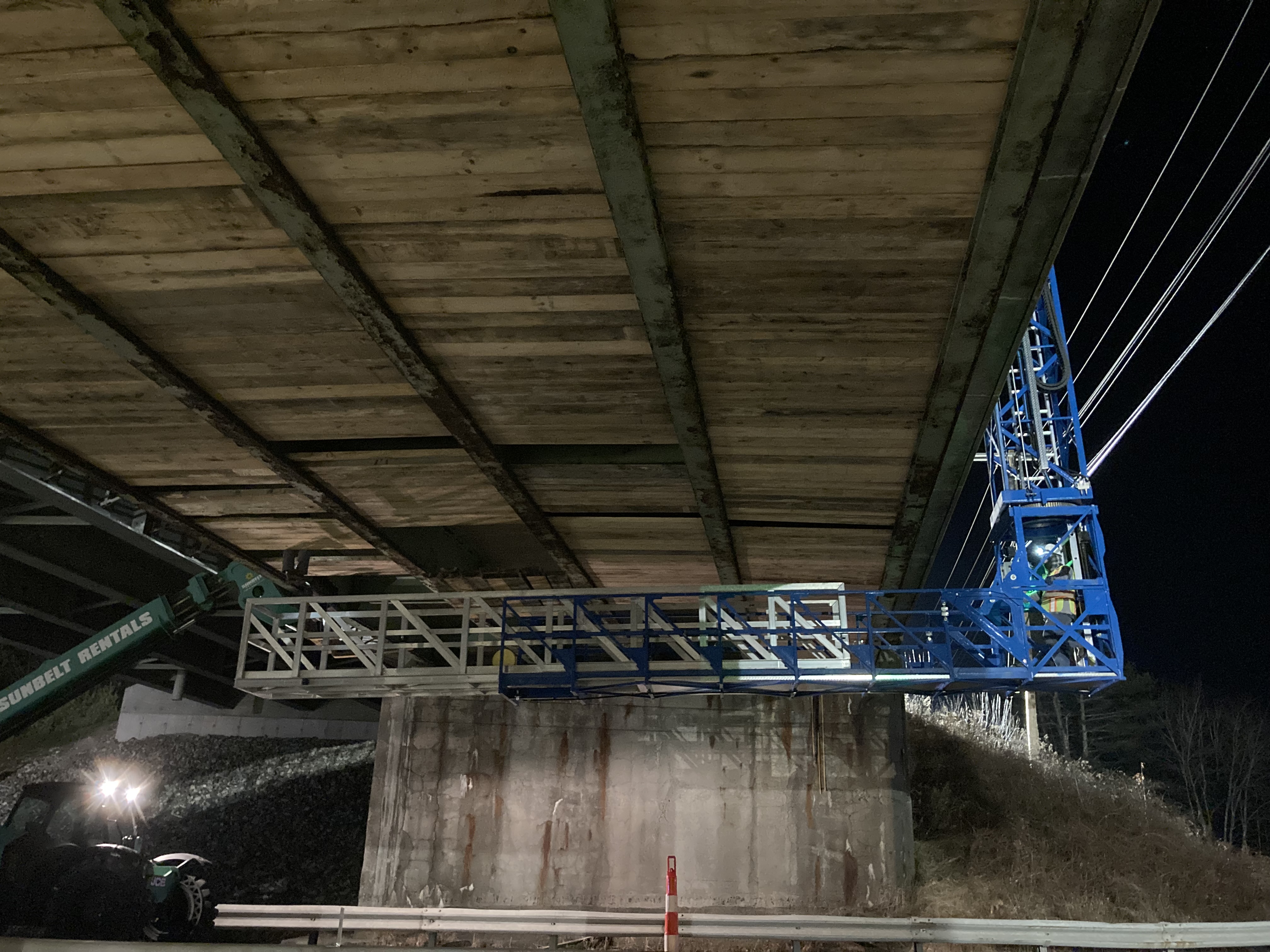

Workers have spent December conducting stage 2 demolition, involving the demolition and removal of the bridge deck and steel beams.
November 2023
L&D painted lane lines and pavement markings, with the project switching to stage 2 traffic pattern. Workers started to remove the overhang forms for the stage one concrete deck.

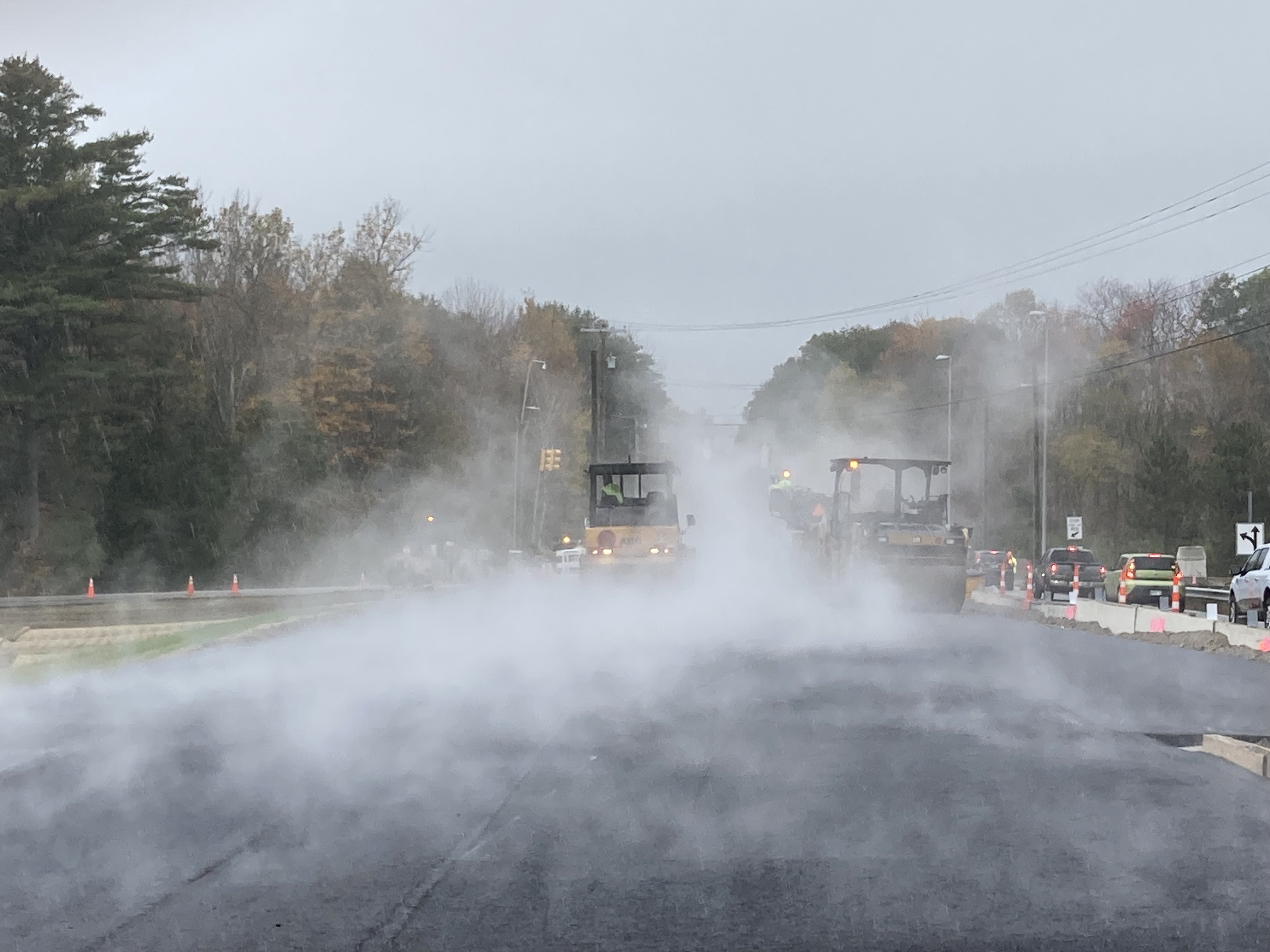

October 2023

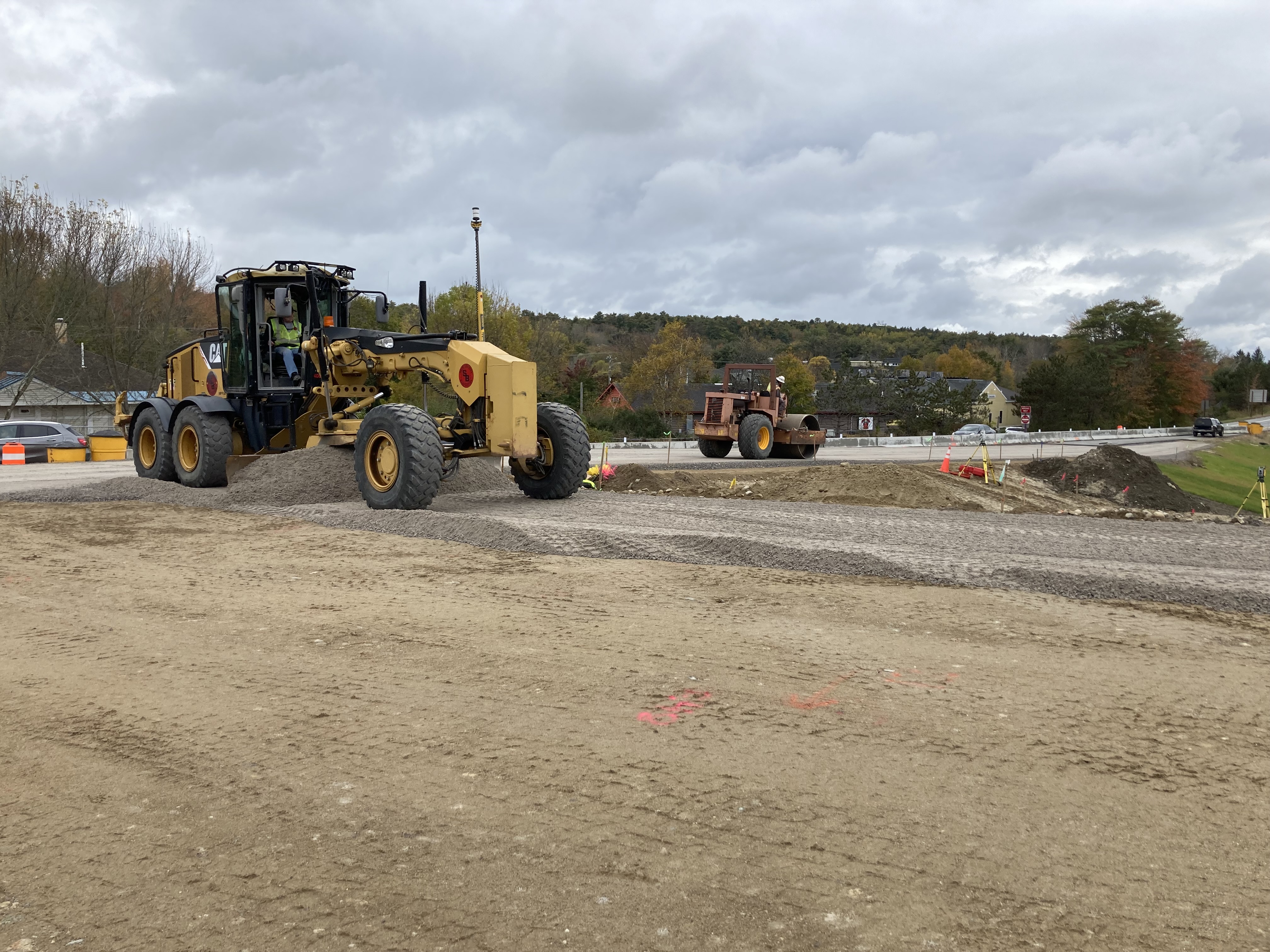

Work at Durham Road saw the placement of concrete for the pier stem. Workers placed concrete for the 48” mast arm. Work at Desert Road continued with the grading of side slopes along north bound off ramp and the approaches of abutments one and two. Workers began form and rebar work for stage one Texas bridge rail. Workers began preparations and layout for stage two traffic pattern.
September 2023
Work at Durham Road saw the placement of concrete for the pier stem. Workers placed concrete for the 48” mast arm. Work at Desert Road continued with the grading of side slopes along north bound off ramp and the approaches of abutments one and two. Workers began form and rebar work for stage one Texas bridge rail. Workers began preparations and layout for stage two traffic pattern.
August 2023
Applied loam, seed, and mulch along the slopes of the north bound off ramp and the abutment 2 approach. Started to remove forms for the deck. Began preparations for installing electric light mast arm foundations. Installed 2 36” mast arm foundations. Installed a controller cabinet foundation.
July 2023

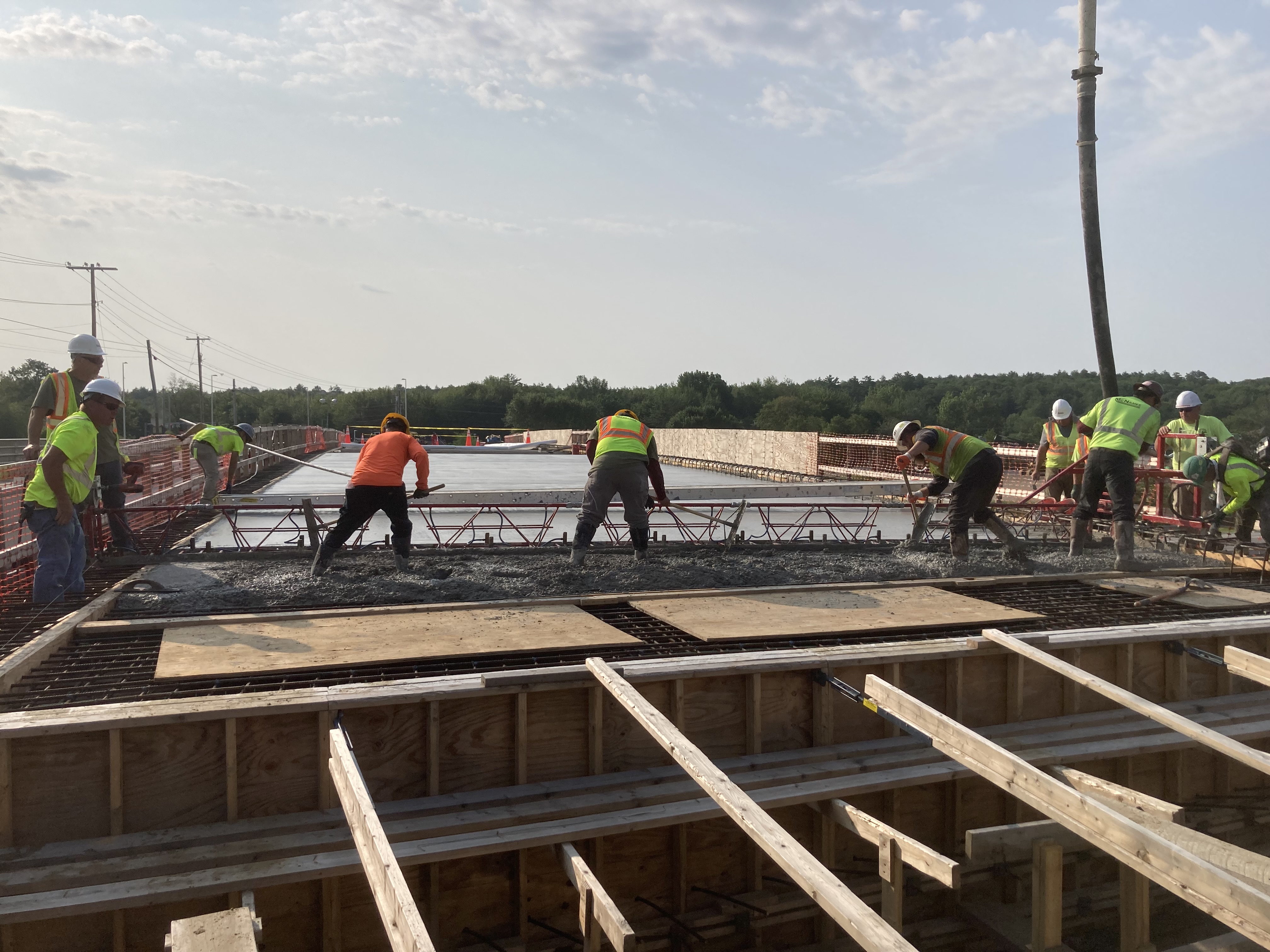

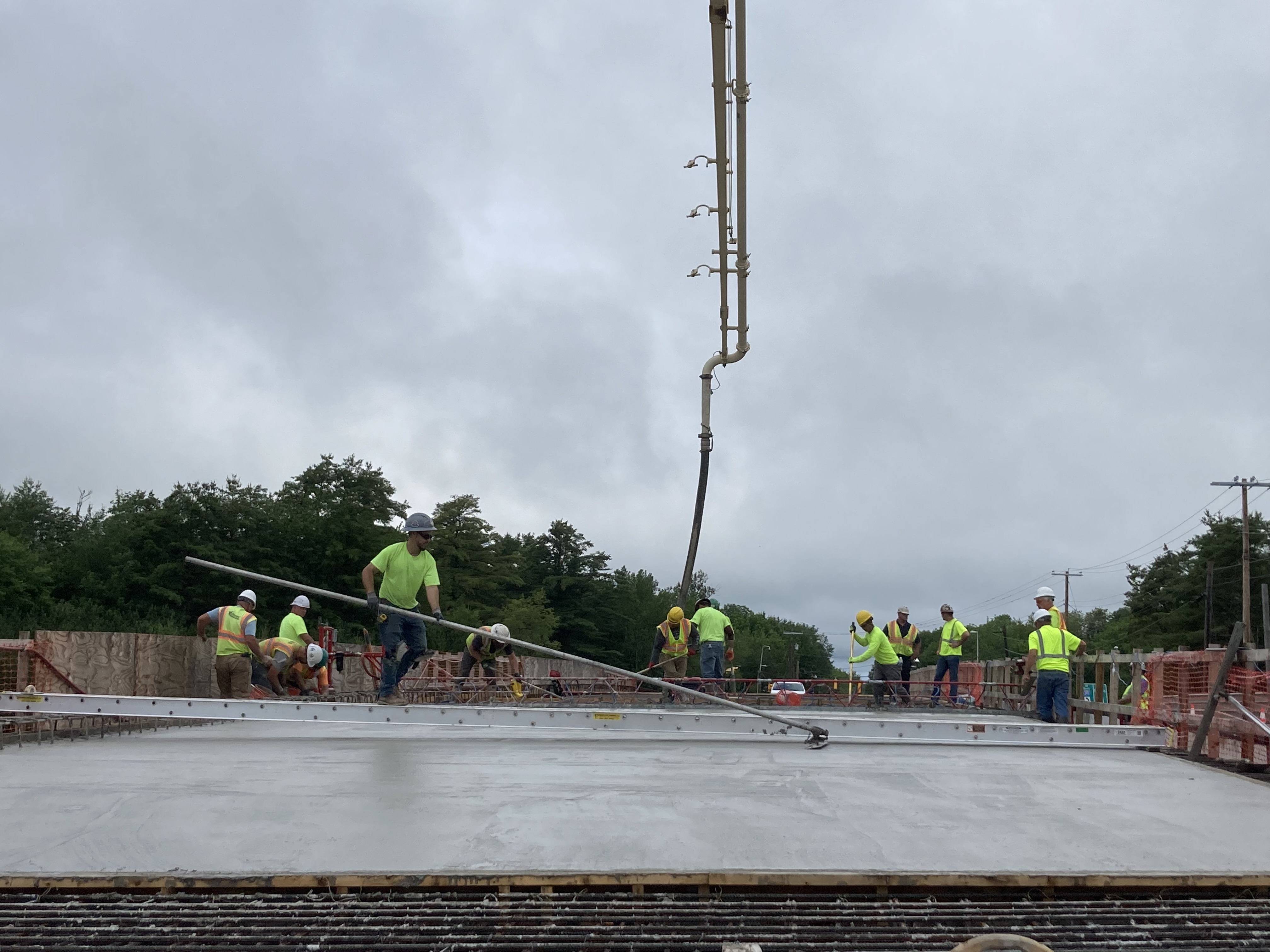

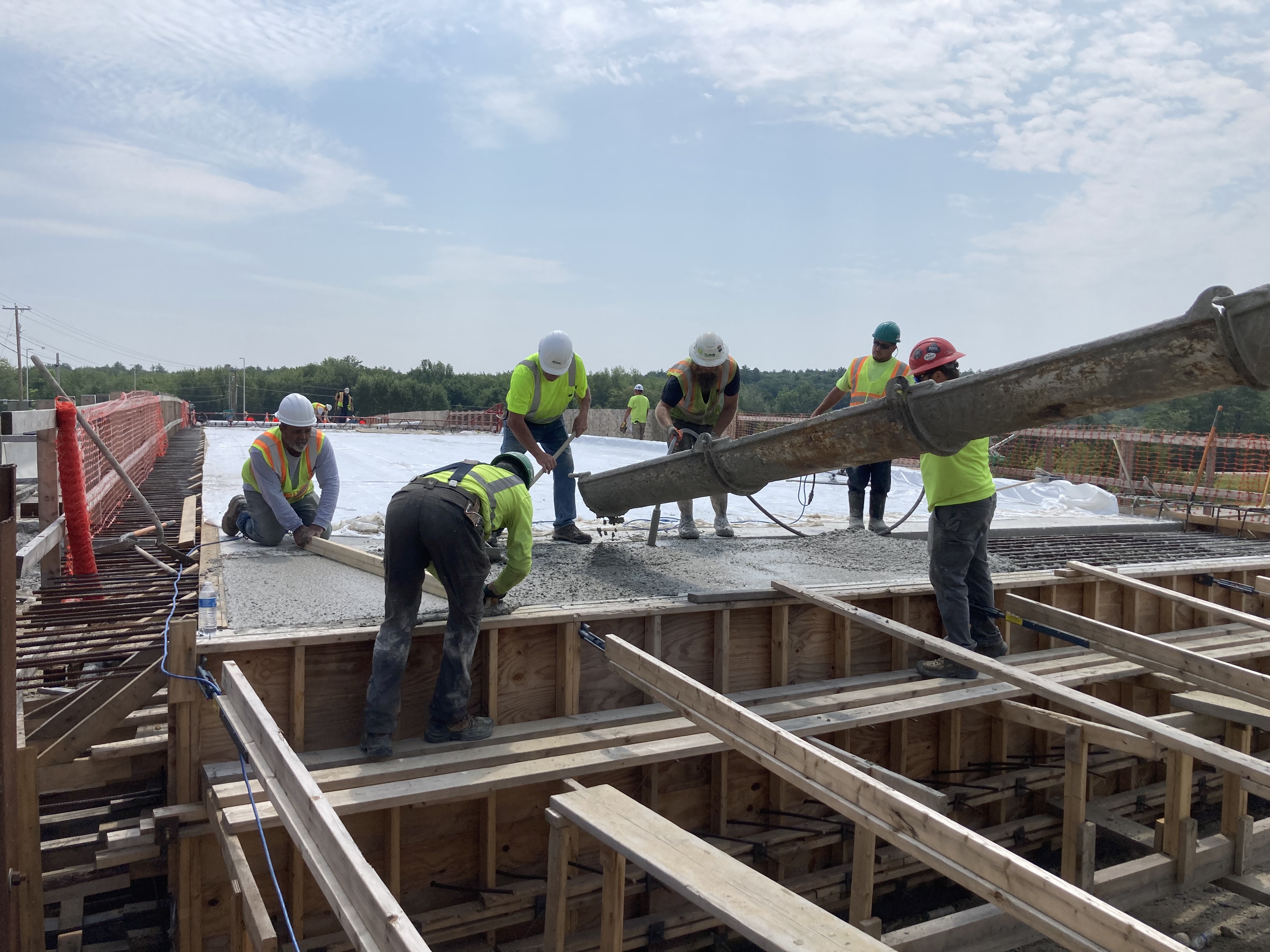

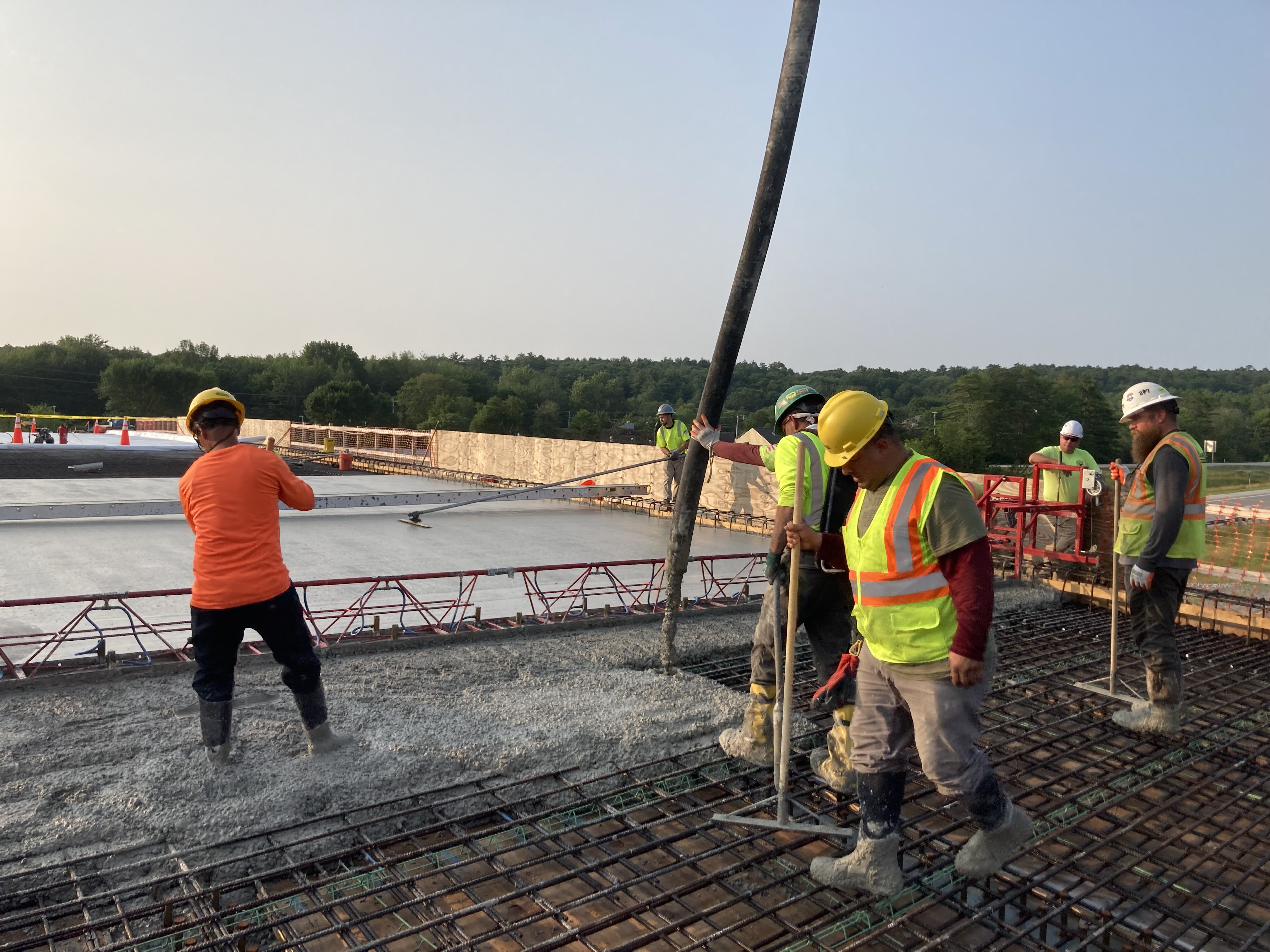

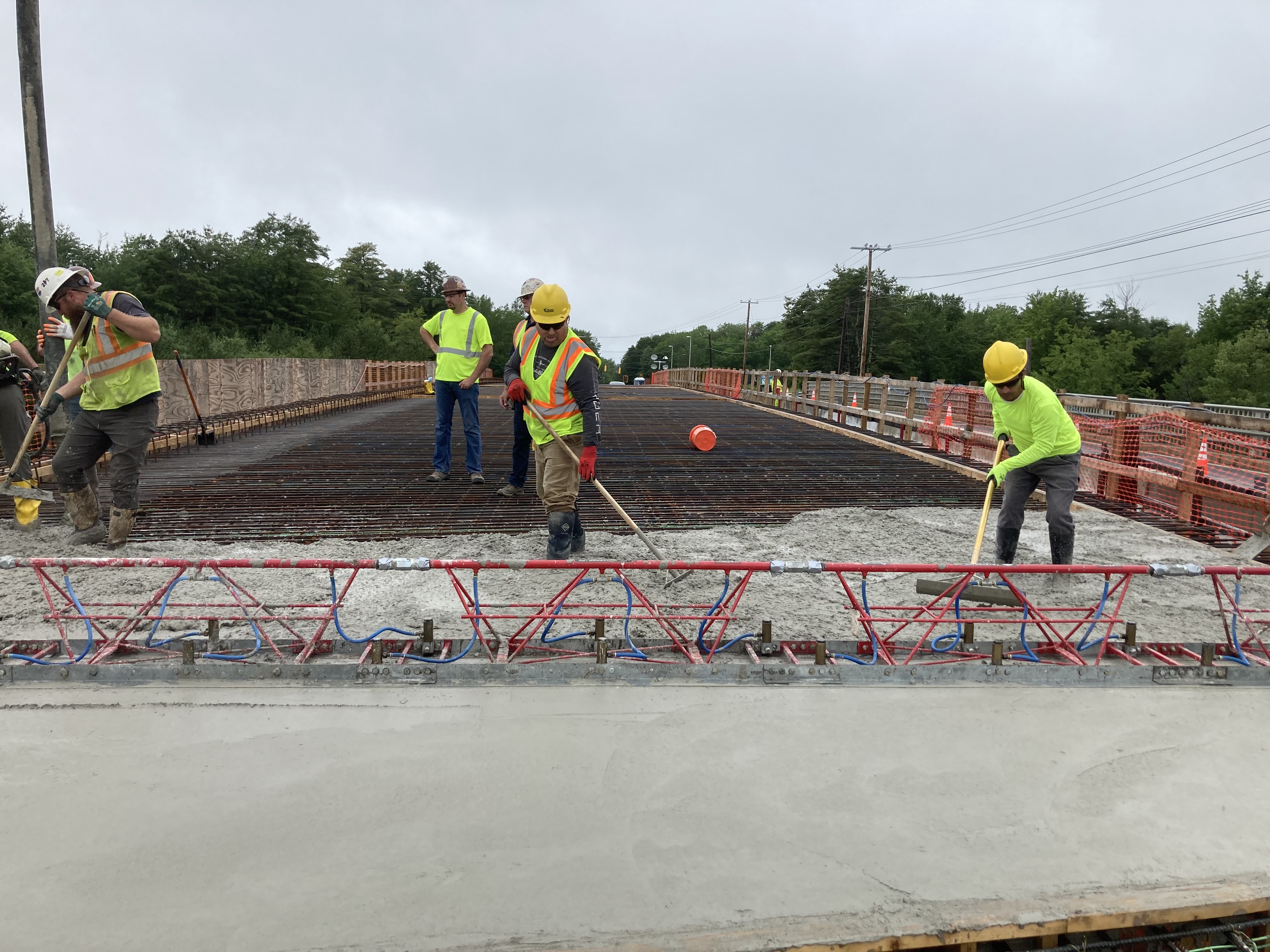

Placed stage 1 deck. Began form work for the parapet sections. Backfilled behind the abutments up to the approach slab elevation. Began preparing for the approach slabs.
June 2023

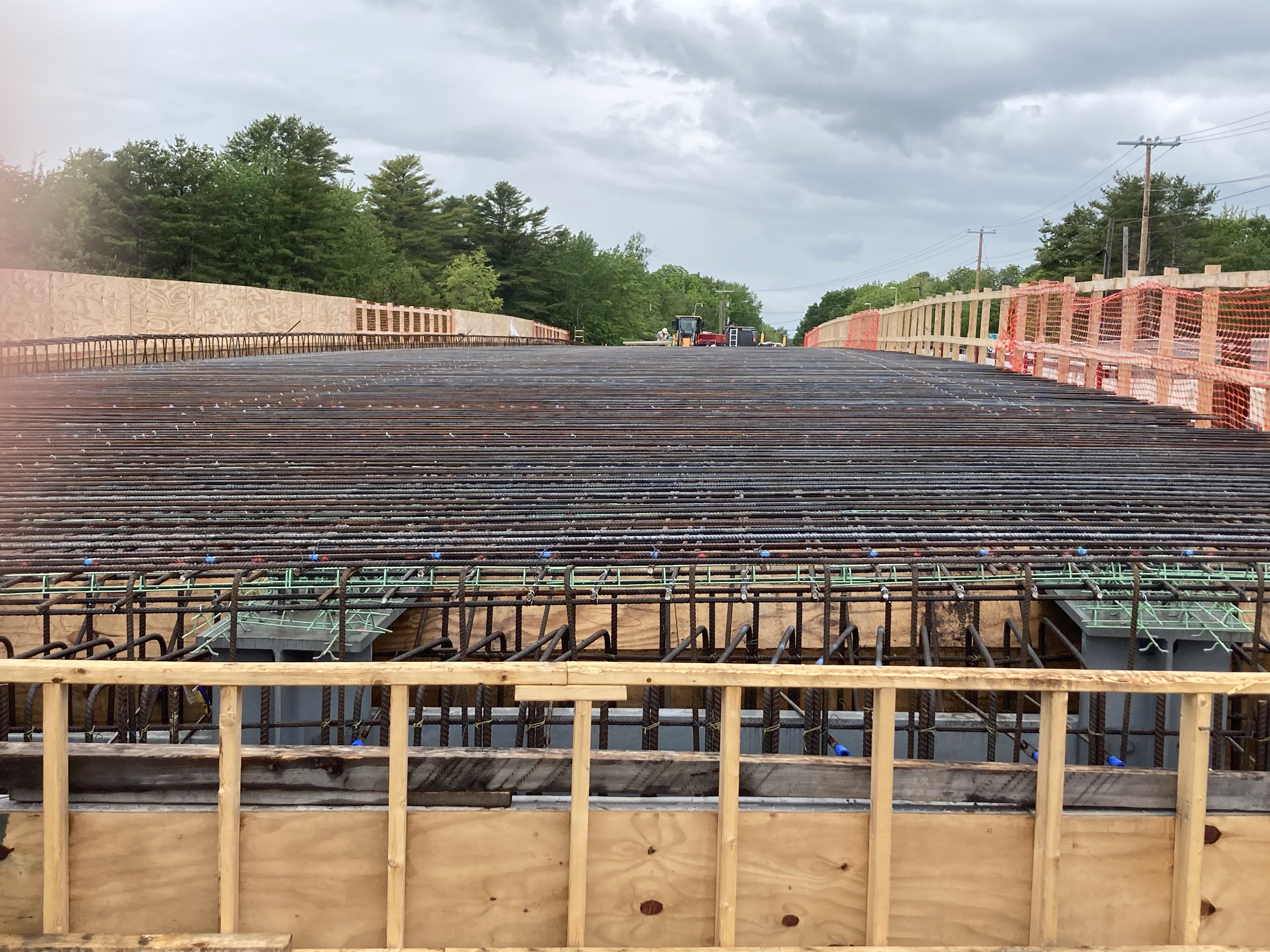

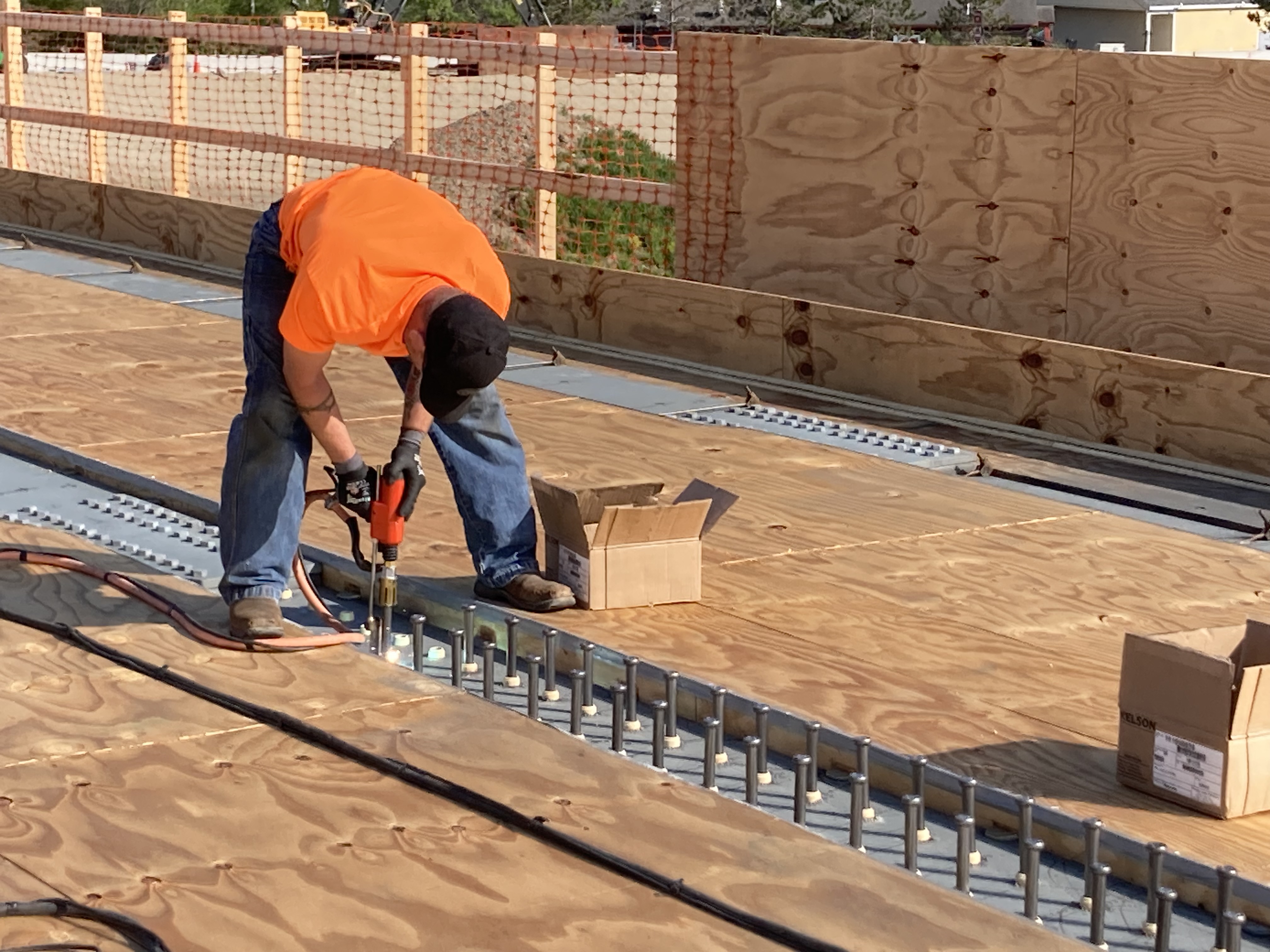

Continued with form work for the concrete deck and tied rebar for the concrete deck
May 2023
Continued with form work for the stage 1 deck and began installing the stage 1 bridge deck drains
April 2023

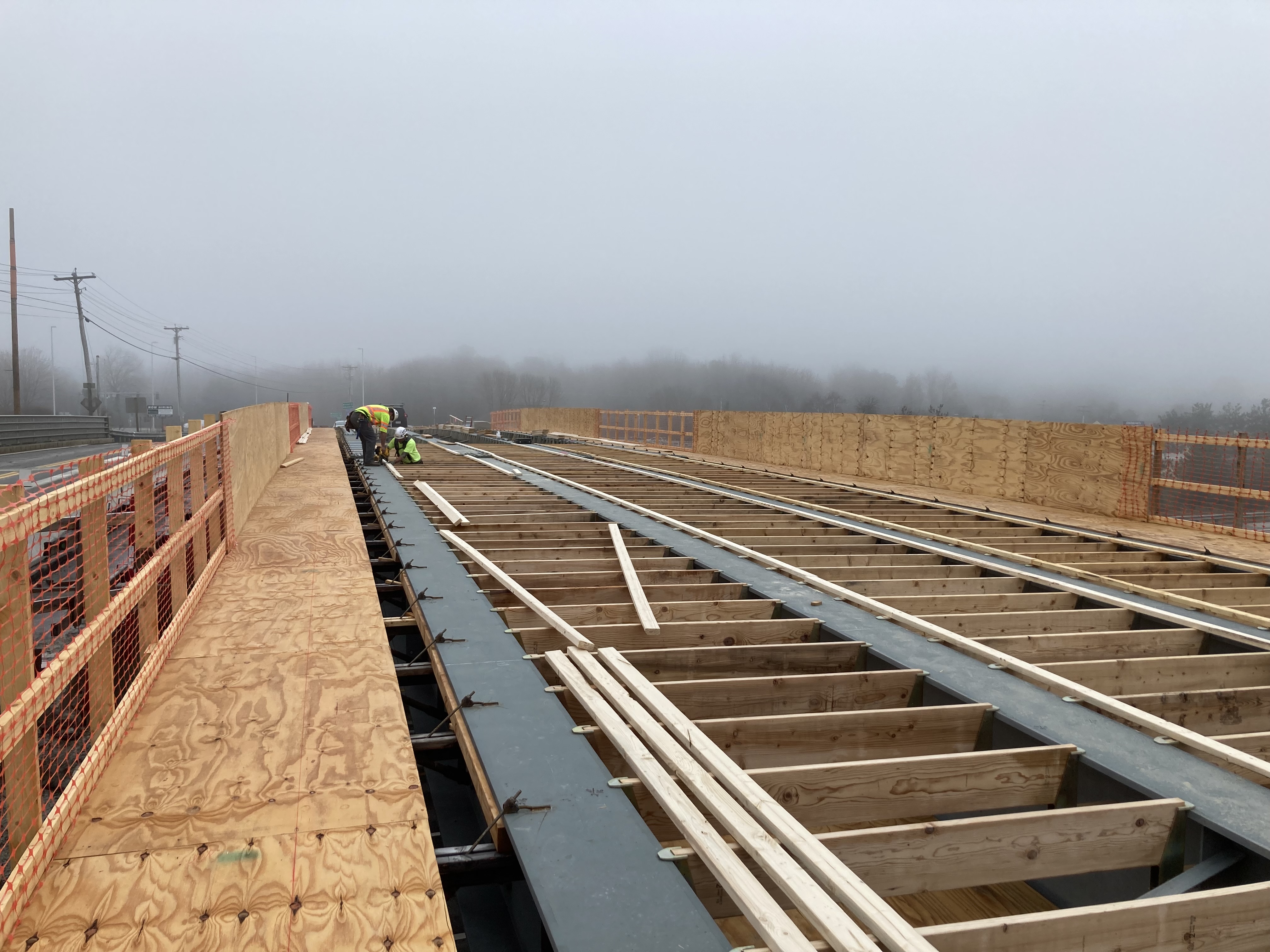

Continued installing Stage 1 deck forms
March 2023
Installed protective shielding between the beams in preparation for building deck forms.

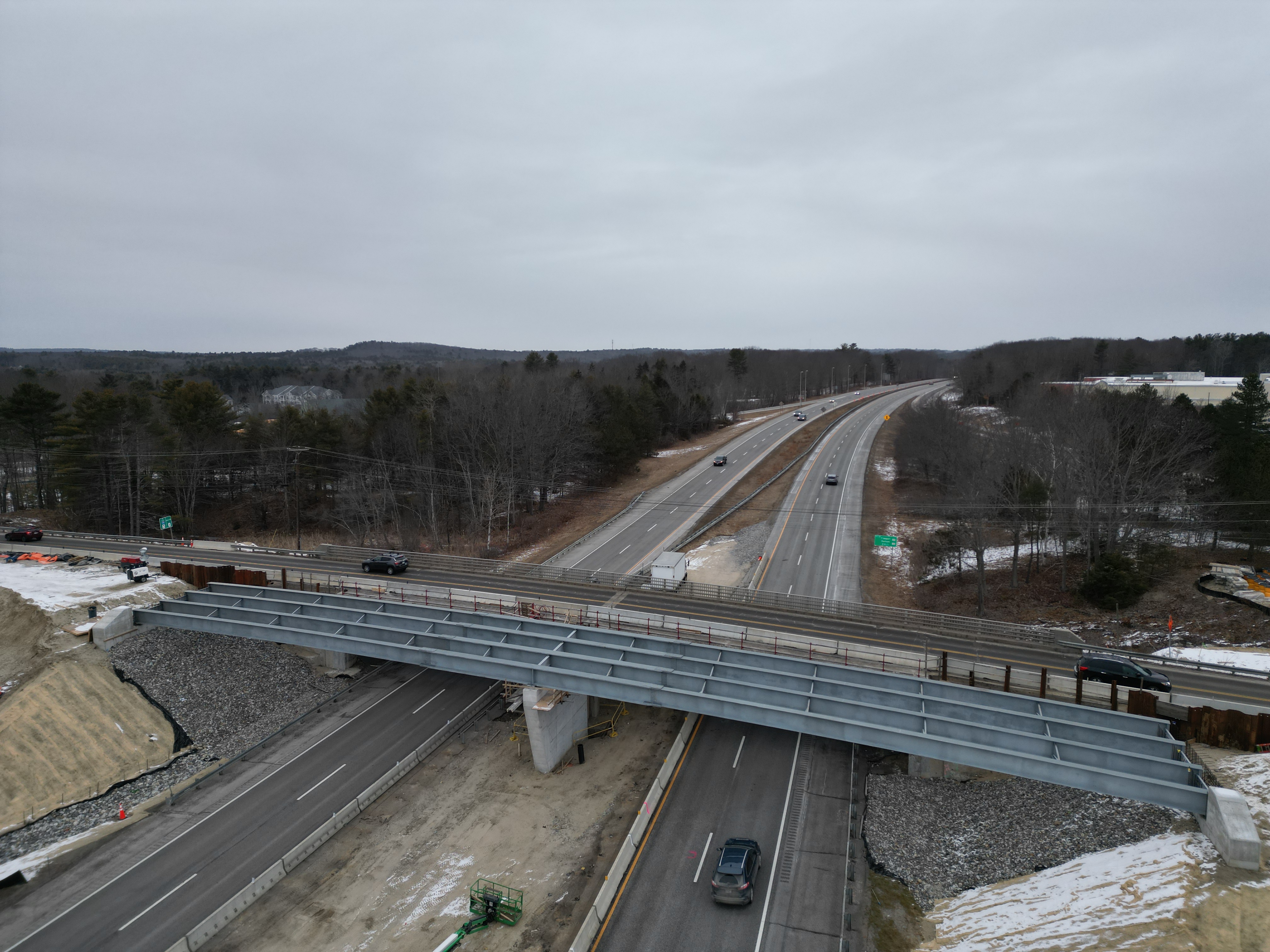

Bridge work continues
Securing the beams

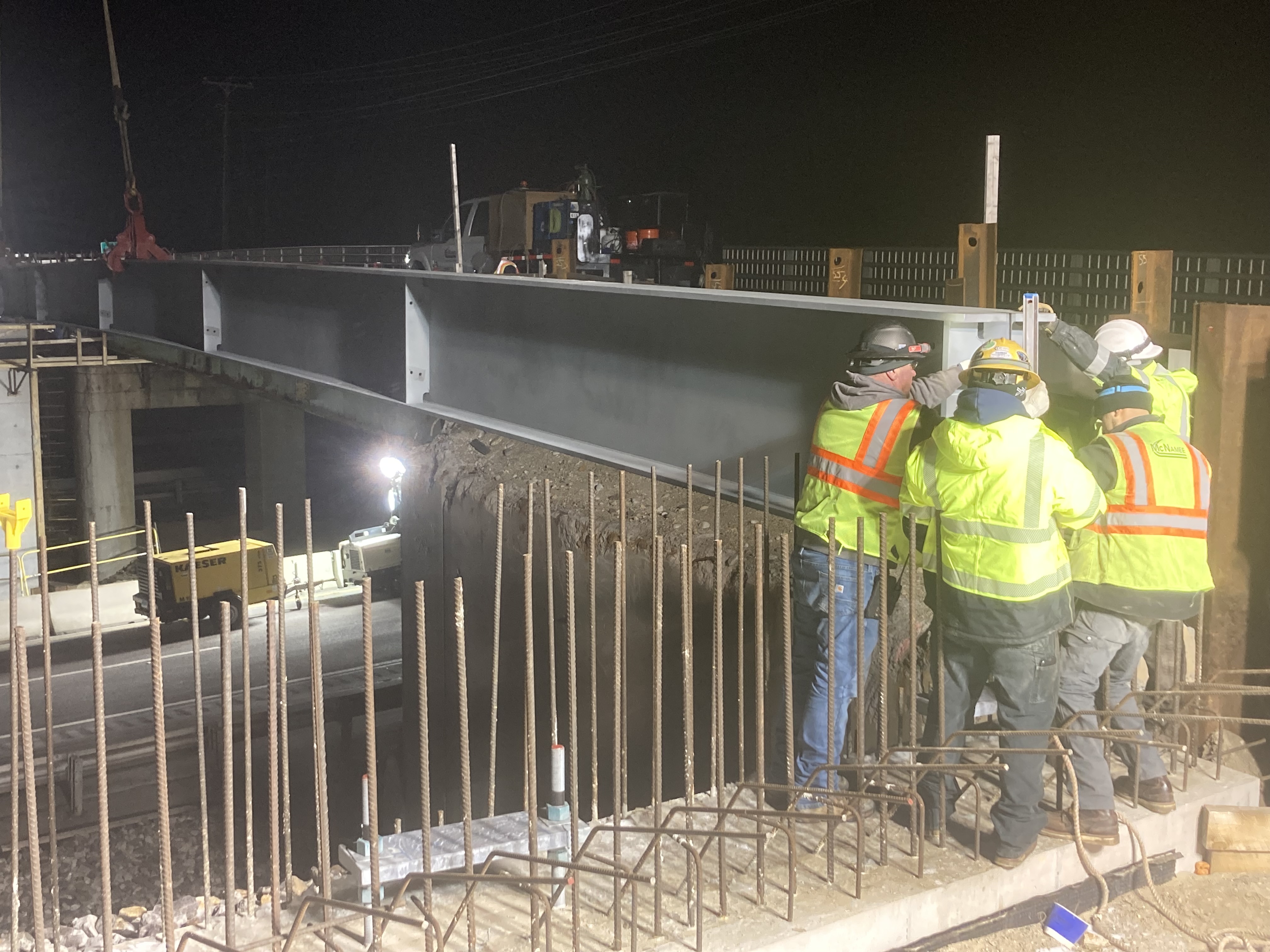

Guiding beams into place

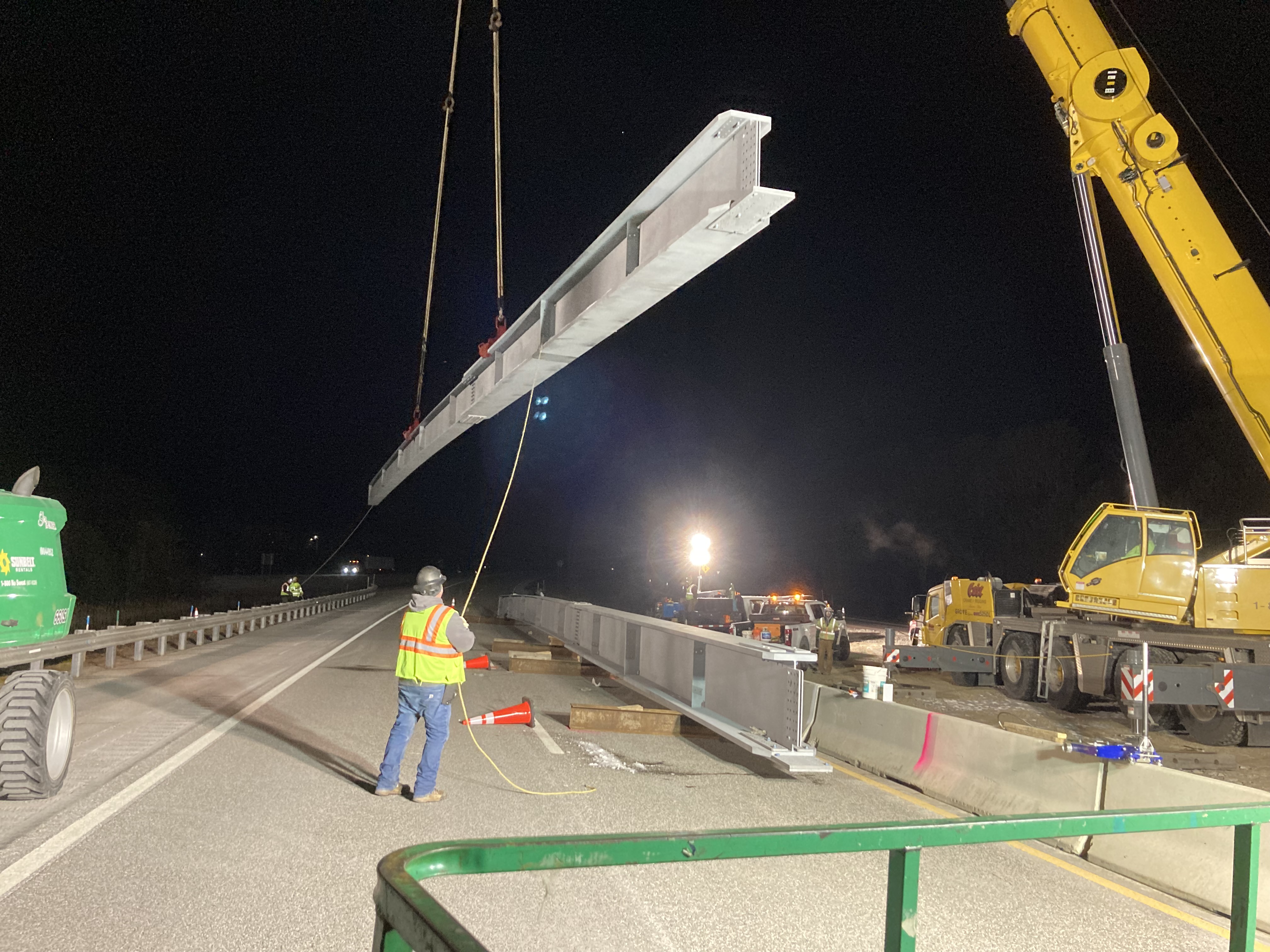

Raising the beams
Protective crushed stone slope installation

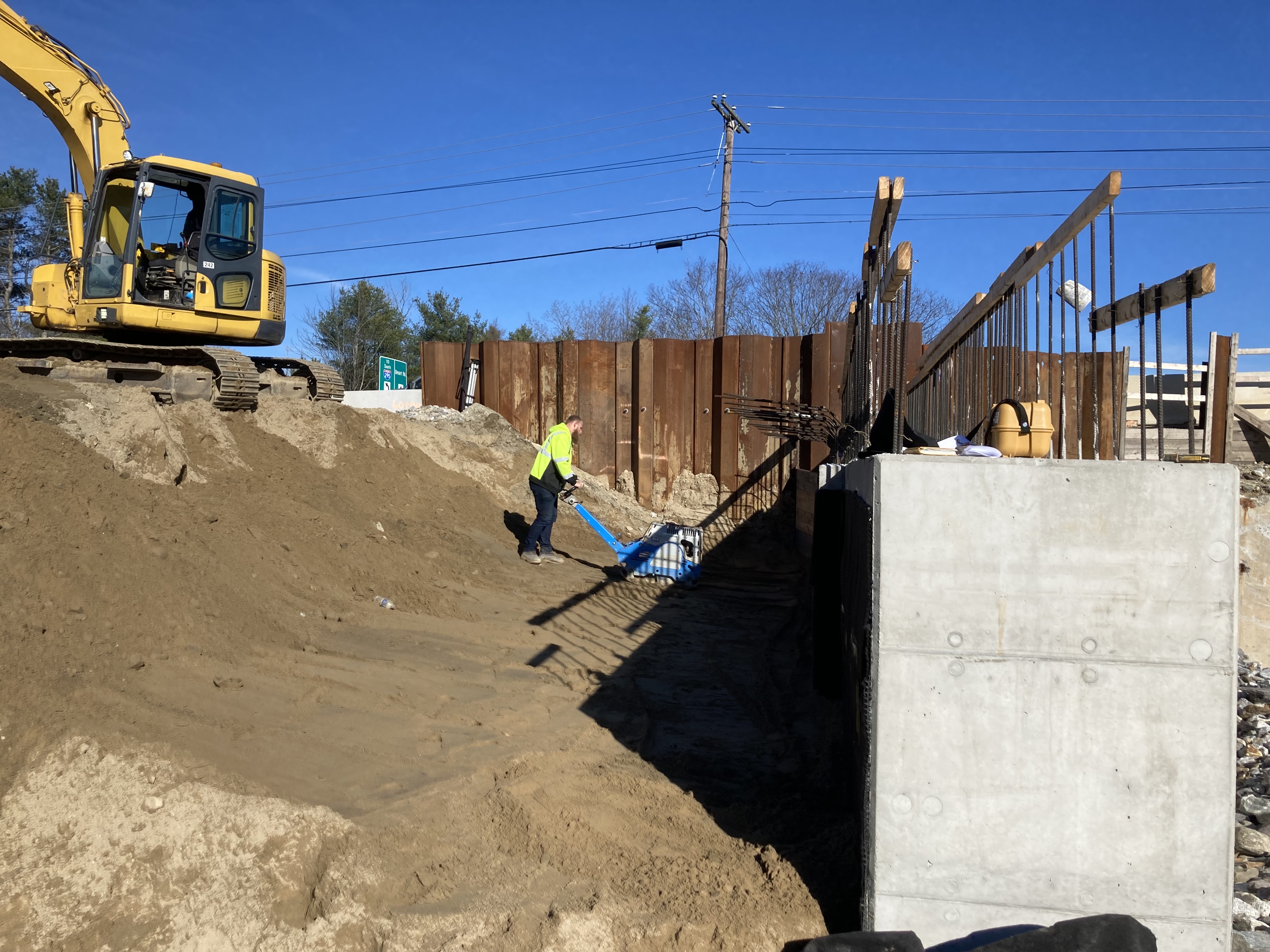

Backfilled behind abutment #1
Placed concrete

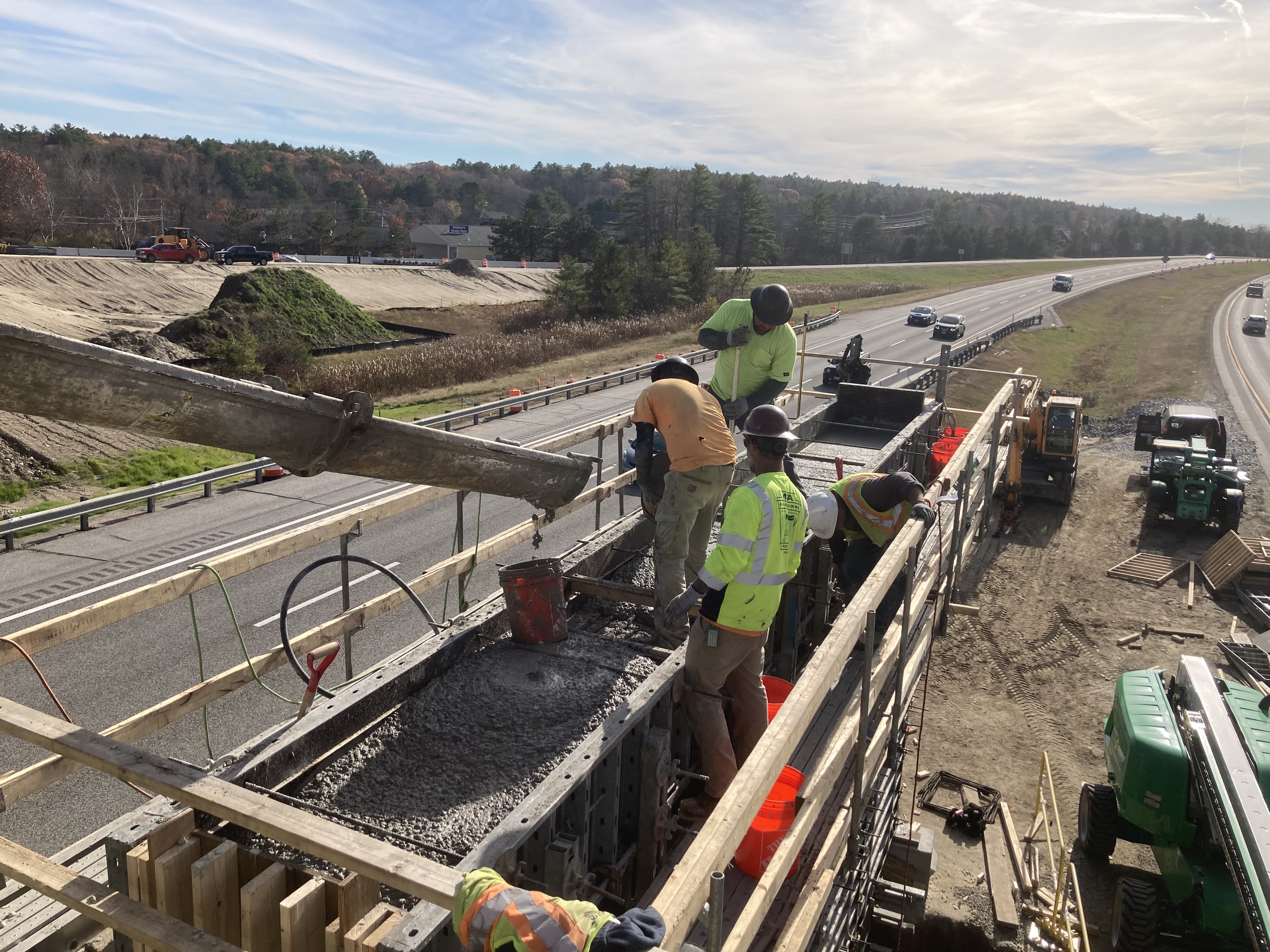

Finished work for the center pier stem
Finished work for the center pier stem
Installed 18” RCP drainage pipe

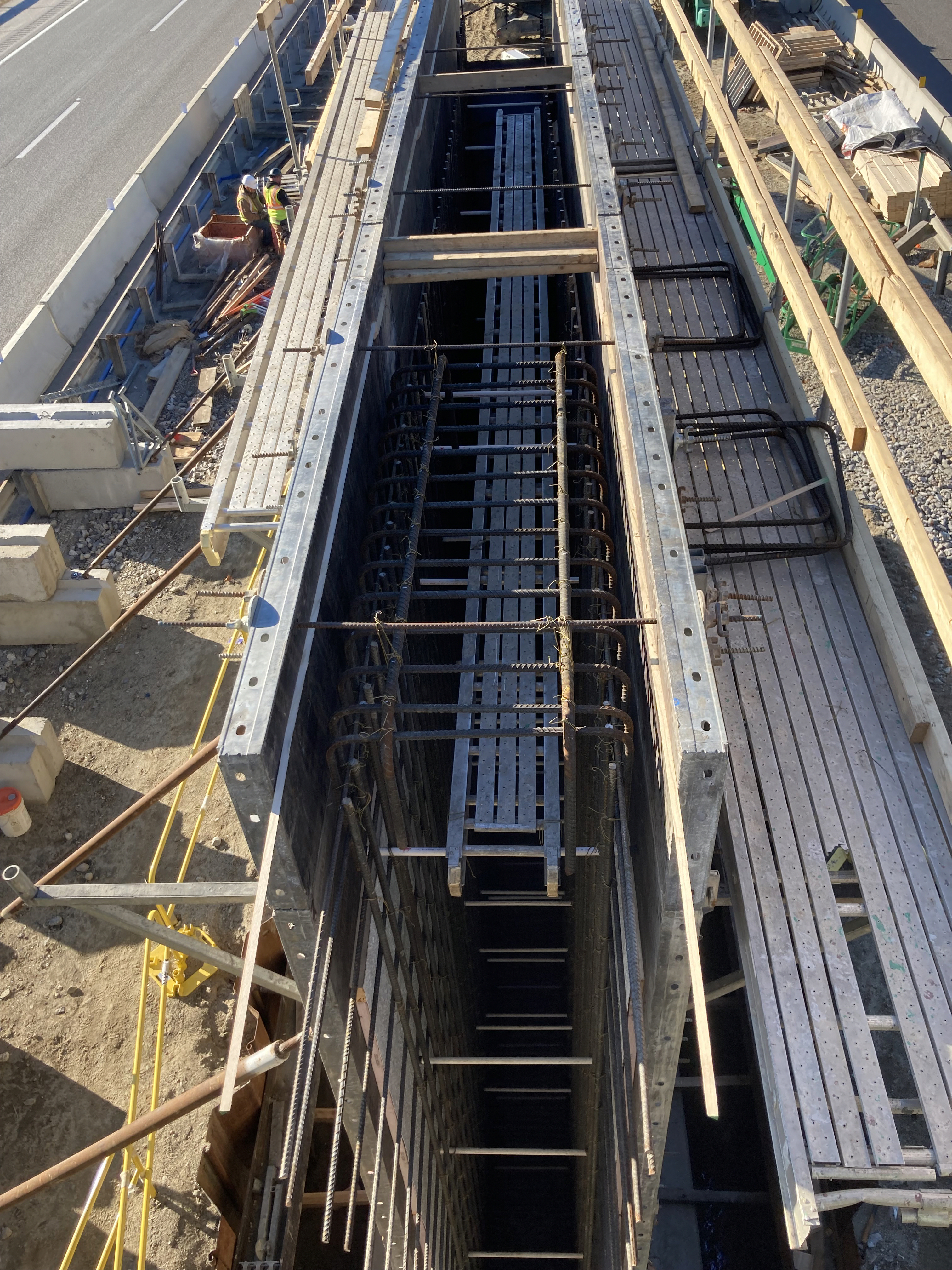

Pier Forms and Rebar

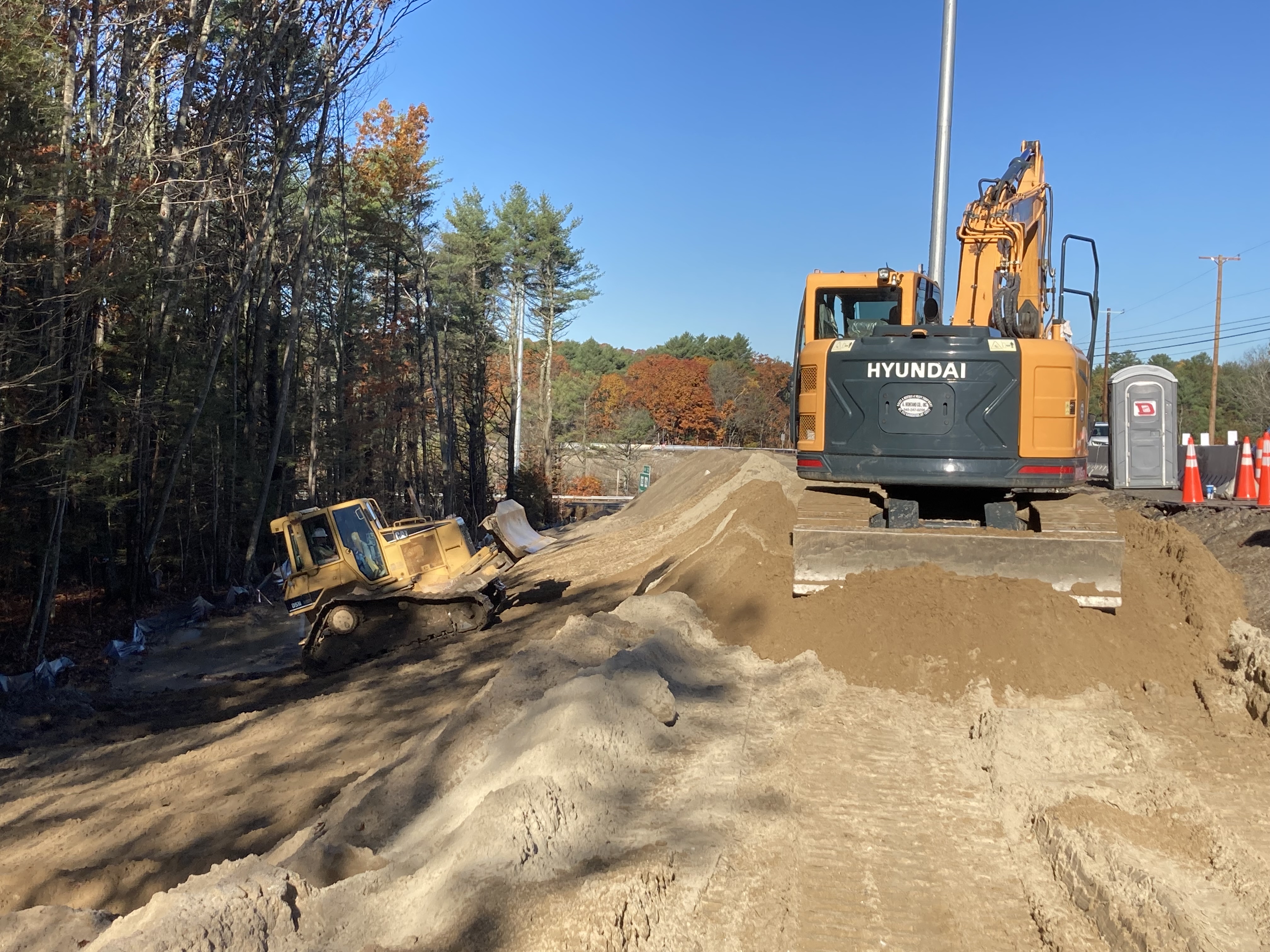

Common Borrow

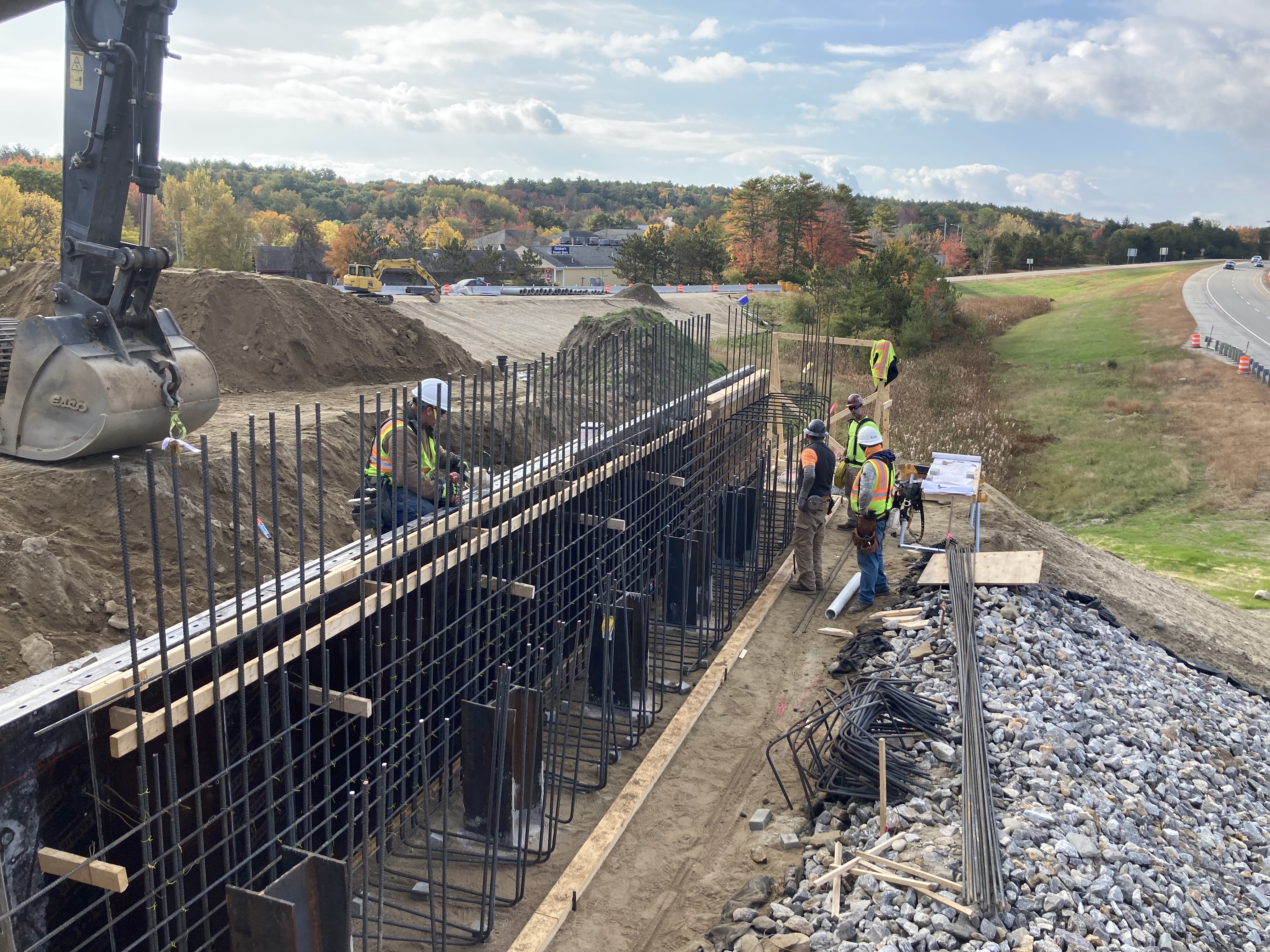

Abutment 2, Rebar 1

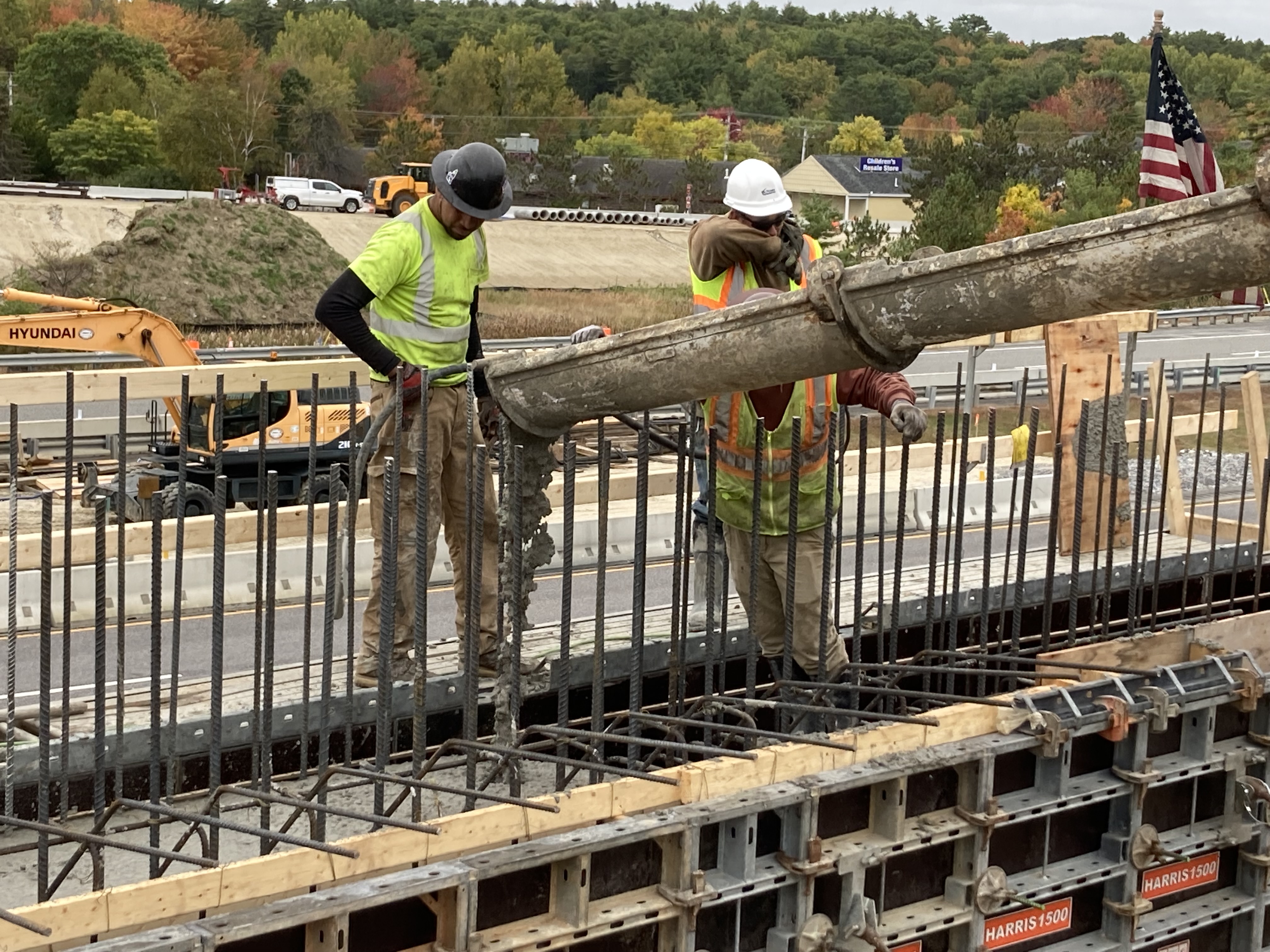

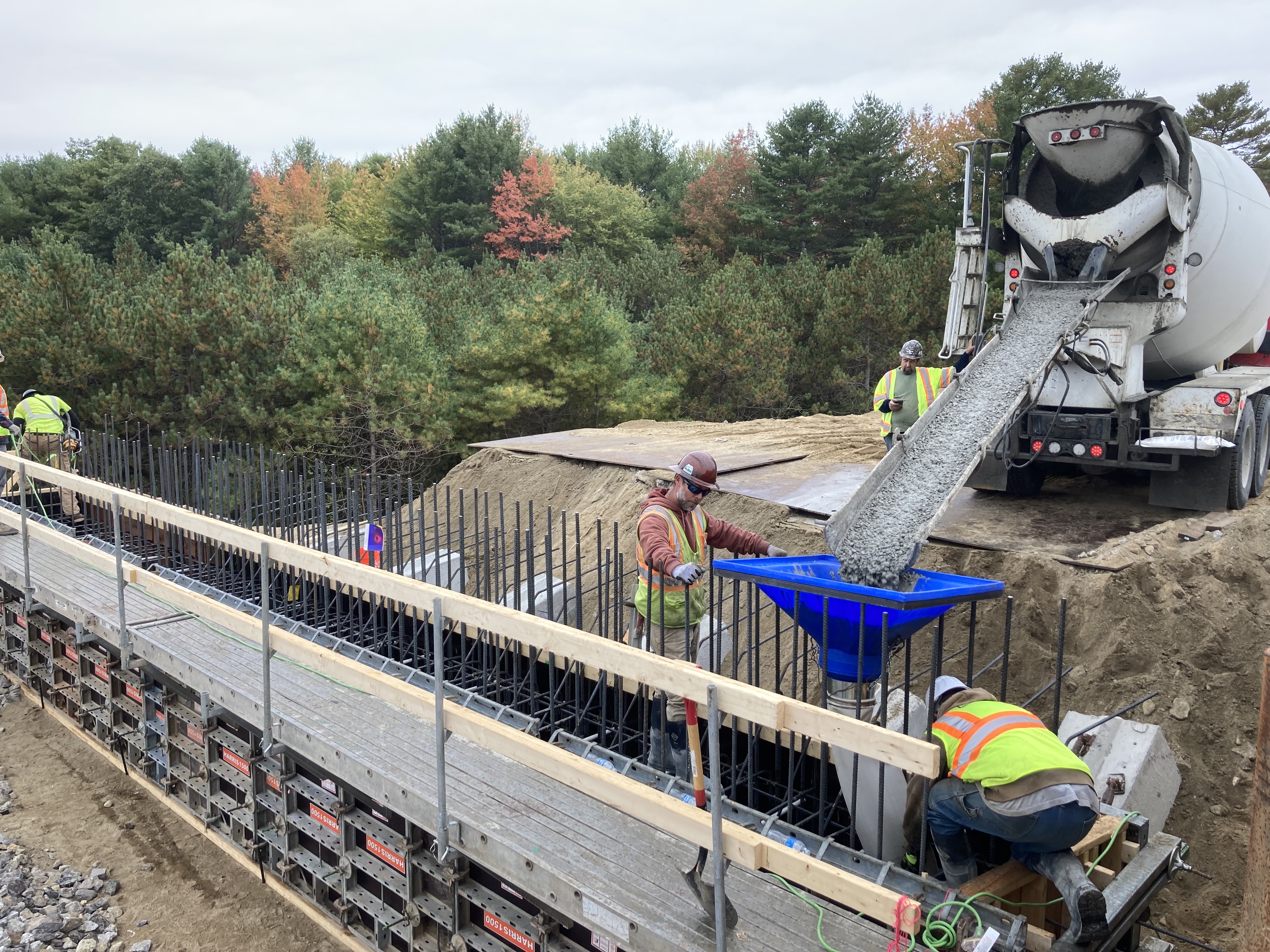

Abutment Concrete Pour
Abutment Concrete Pour

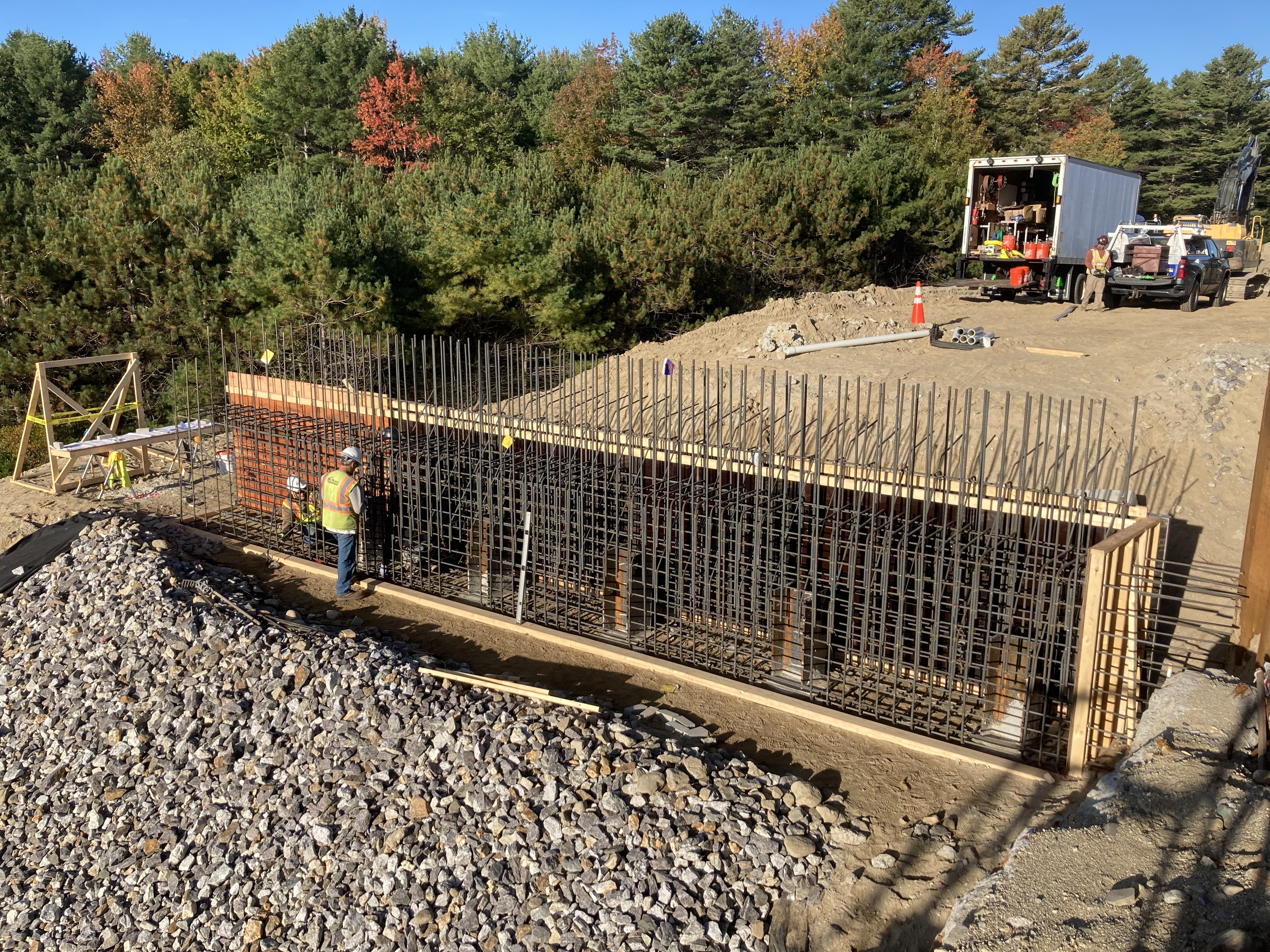

Forms and Rebar

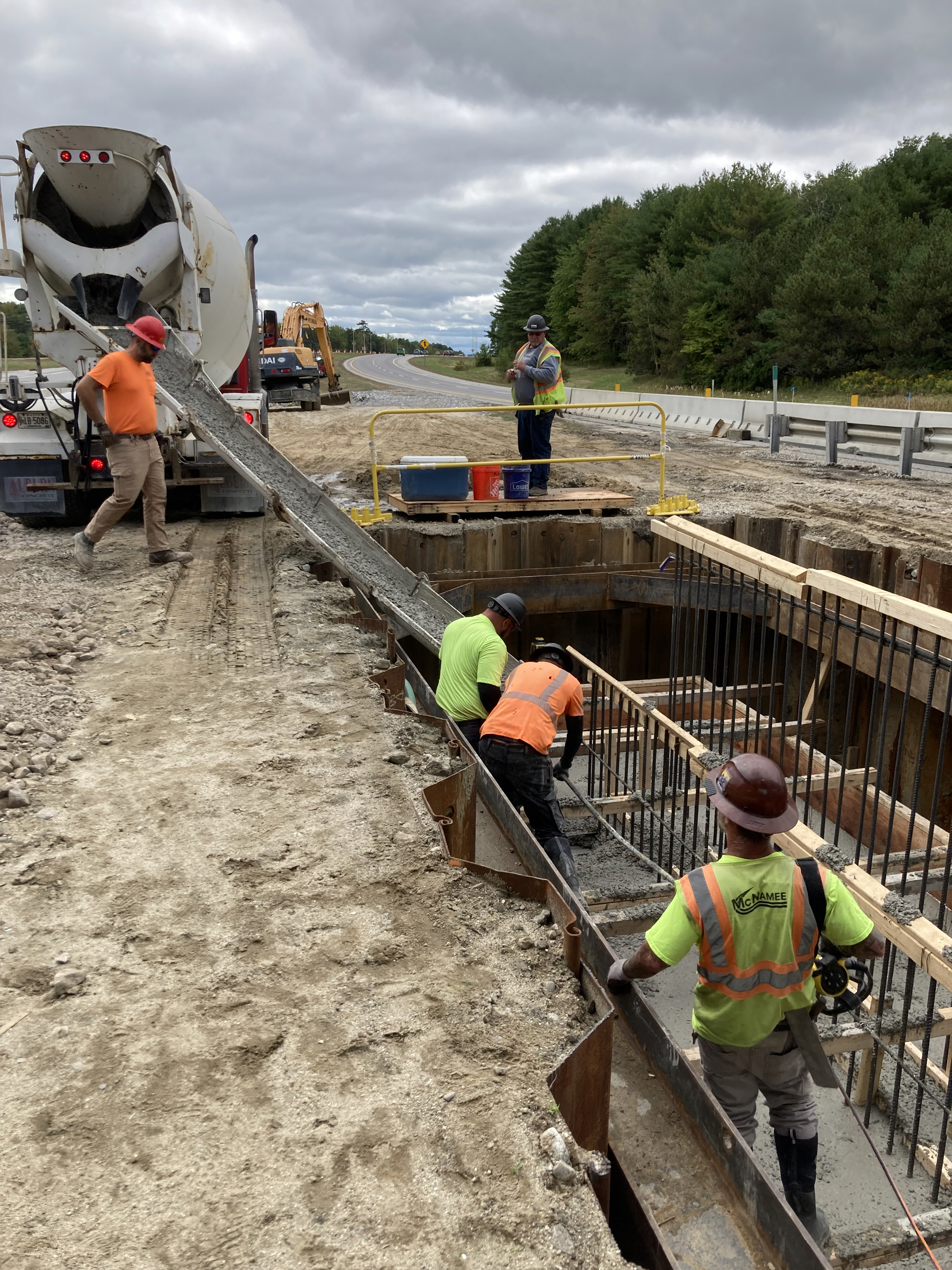

Pier Footing

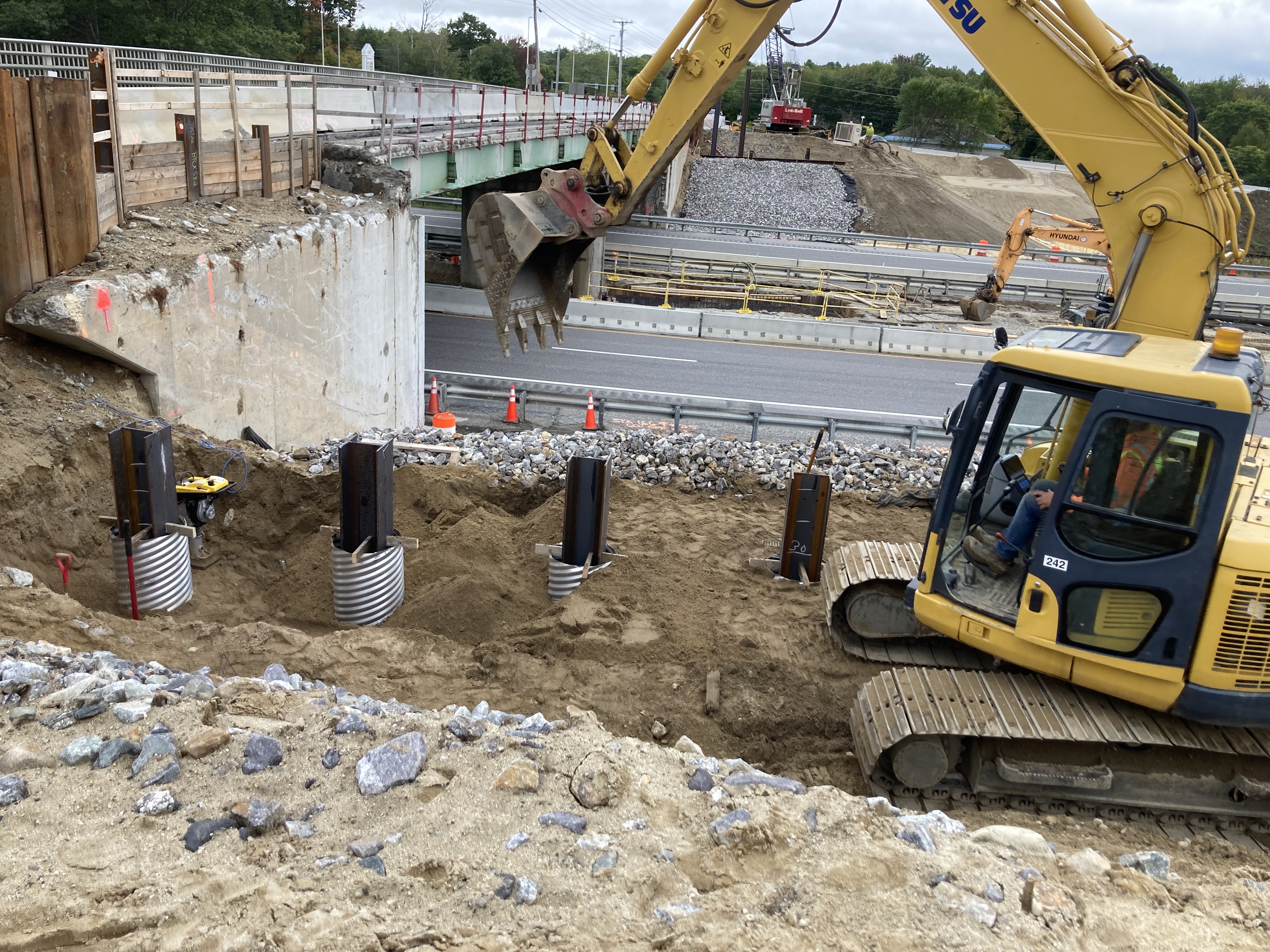

Pile Sleeving

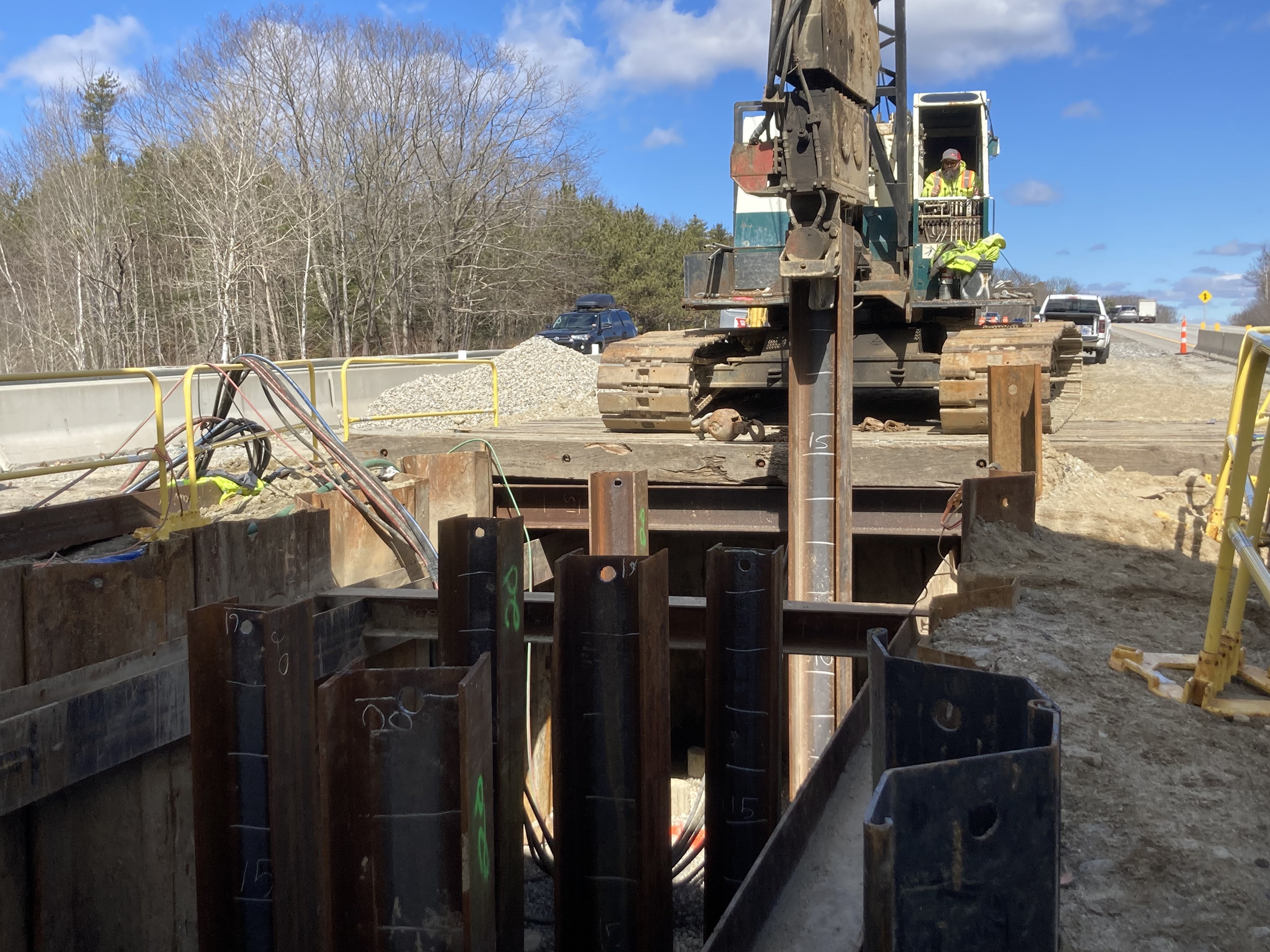

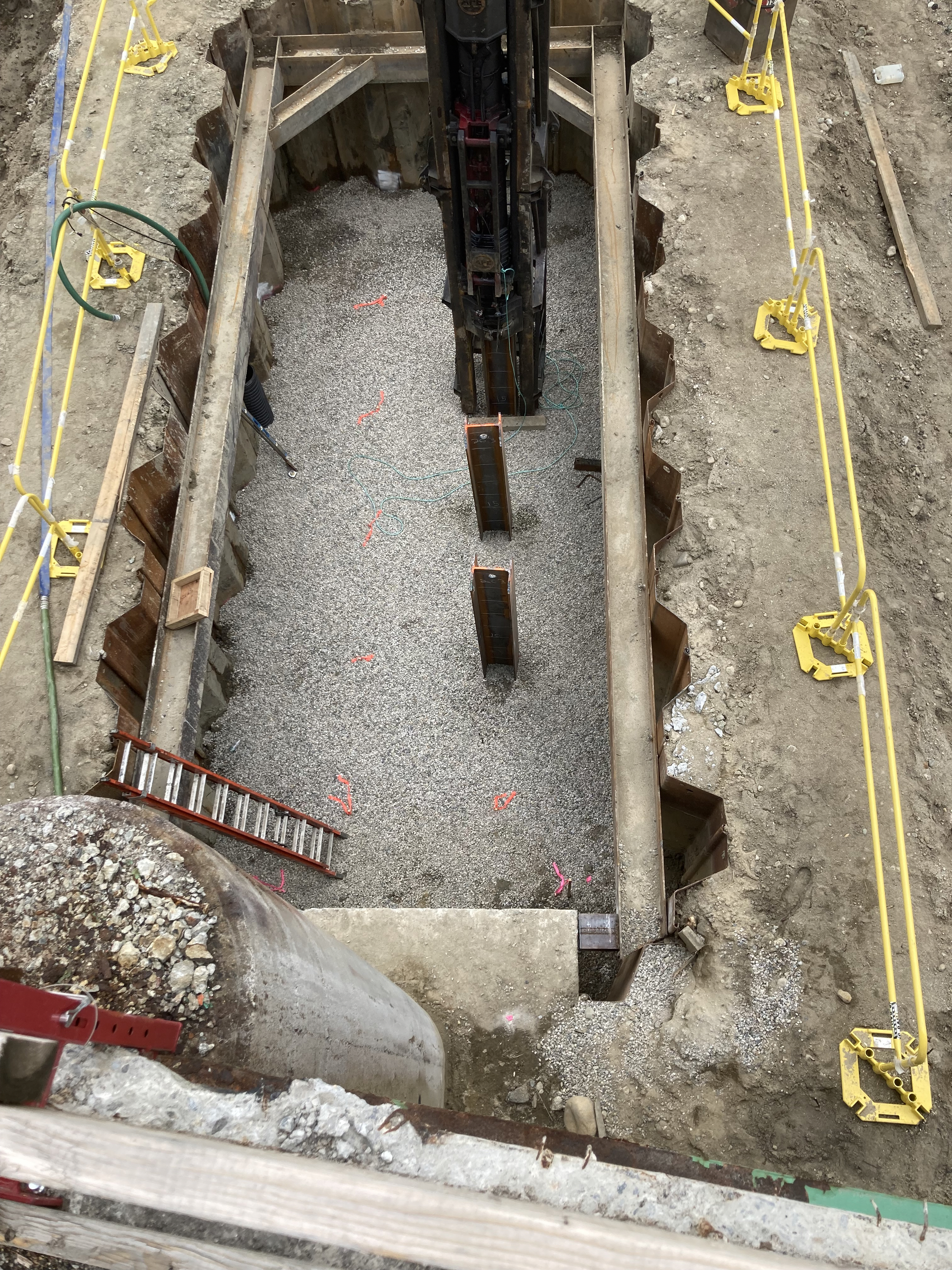

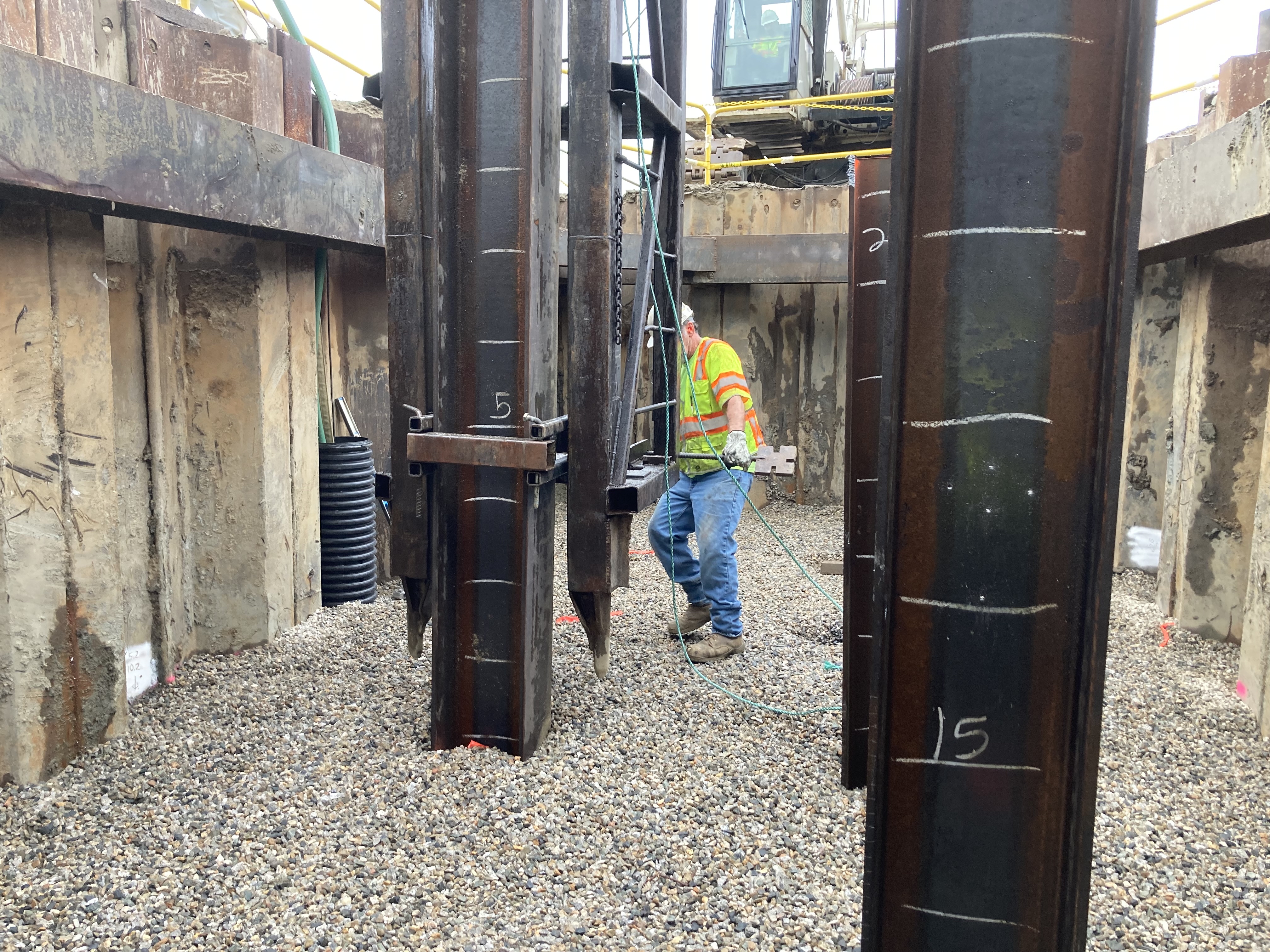

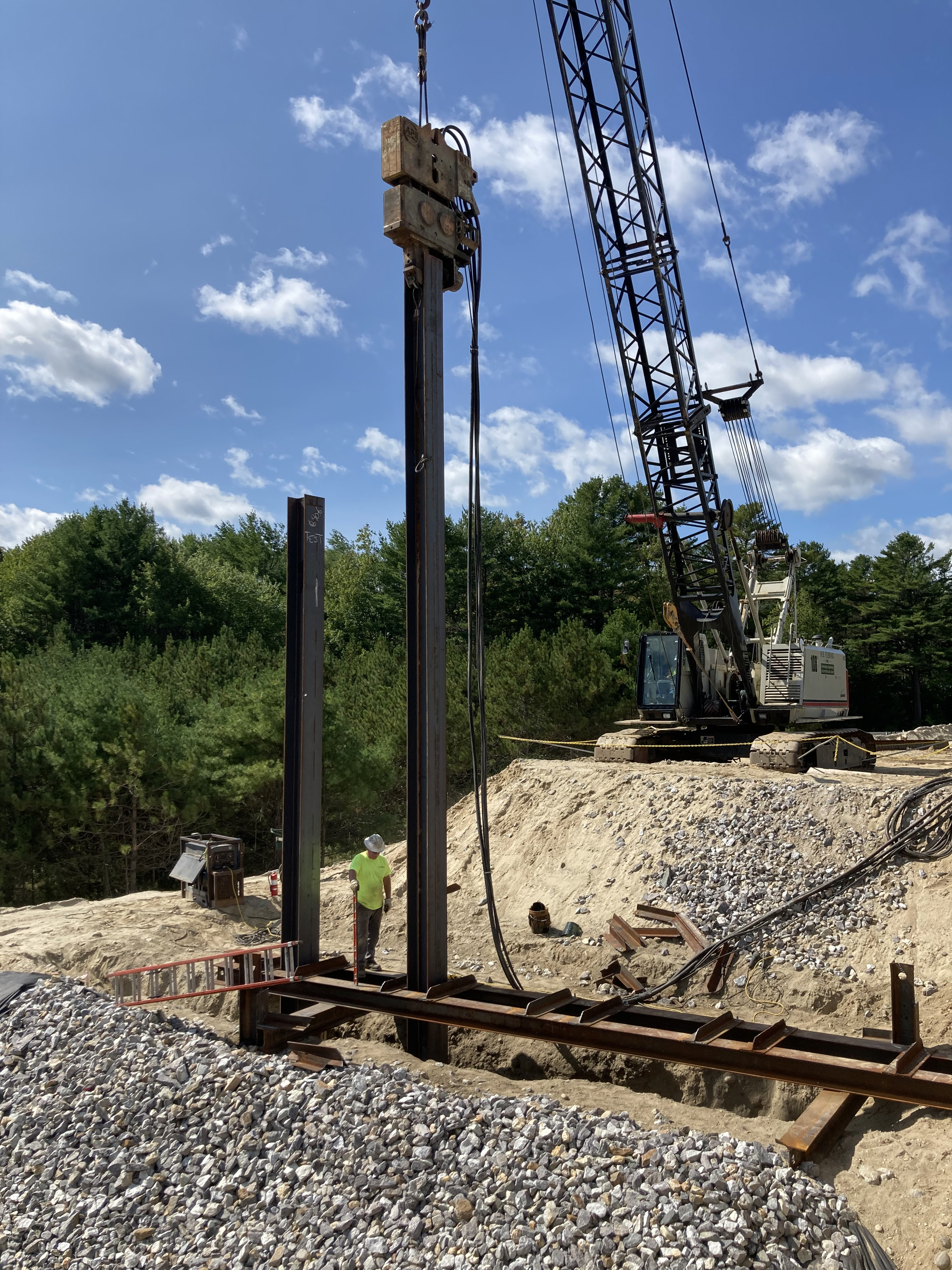

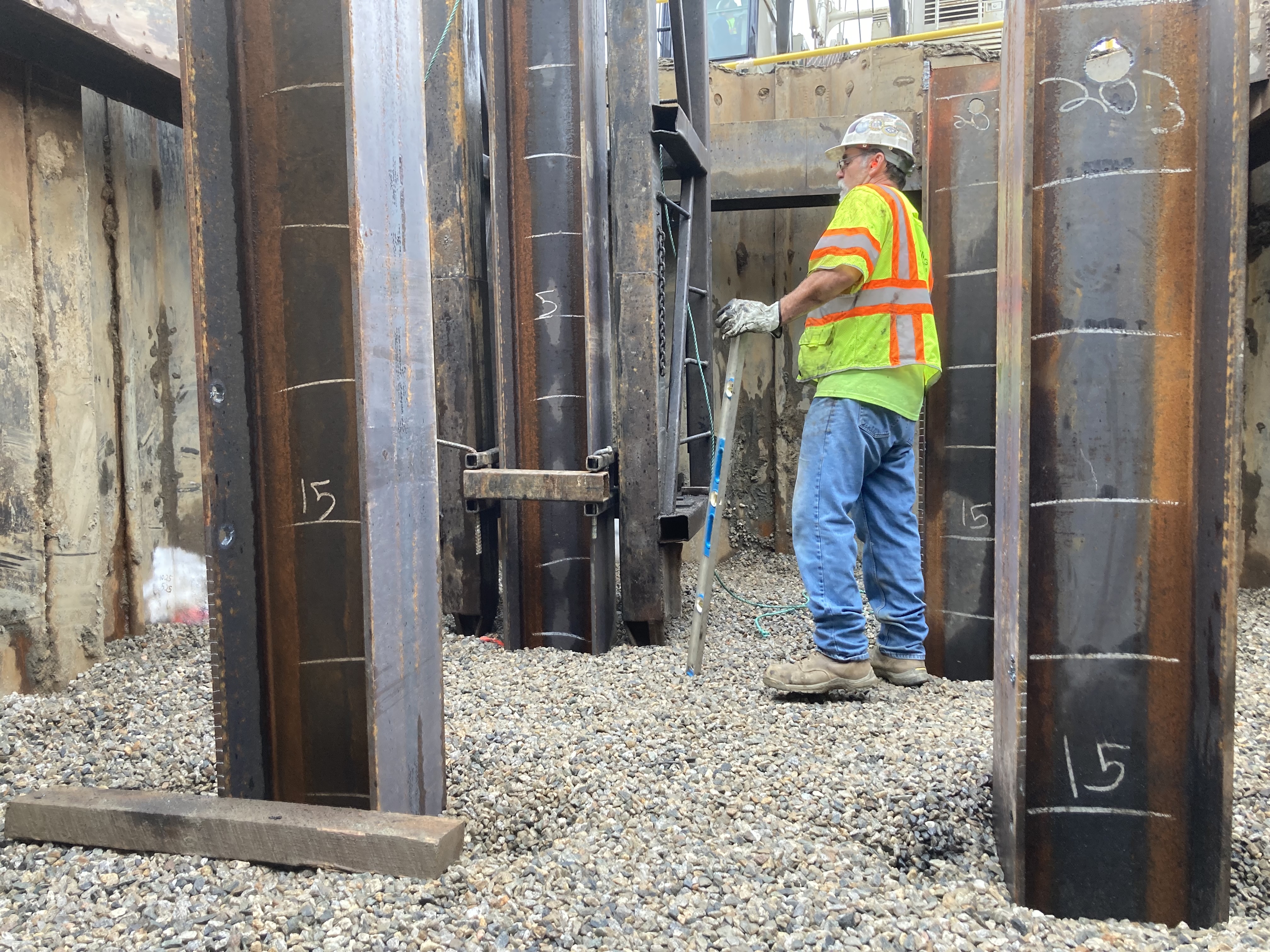

Pile Driving

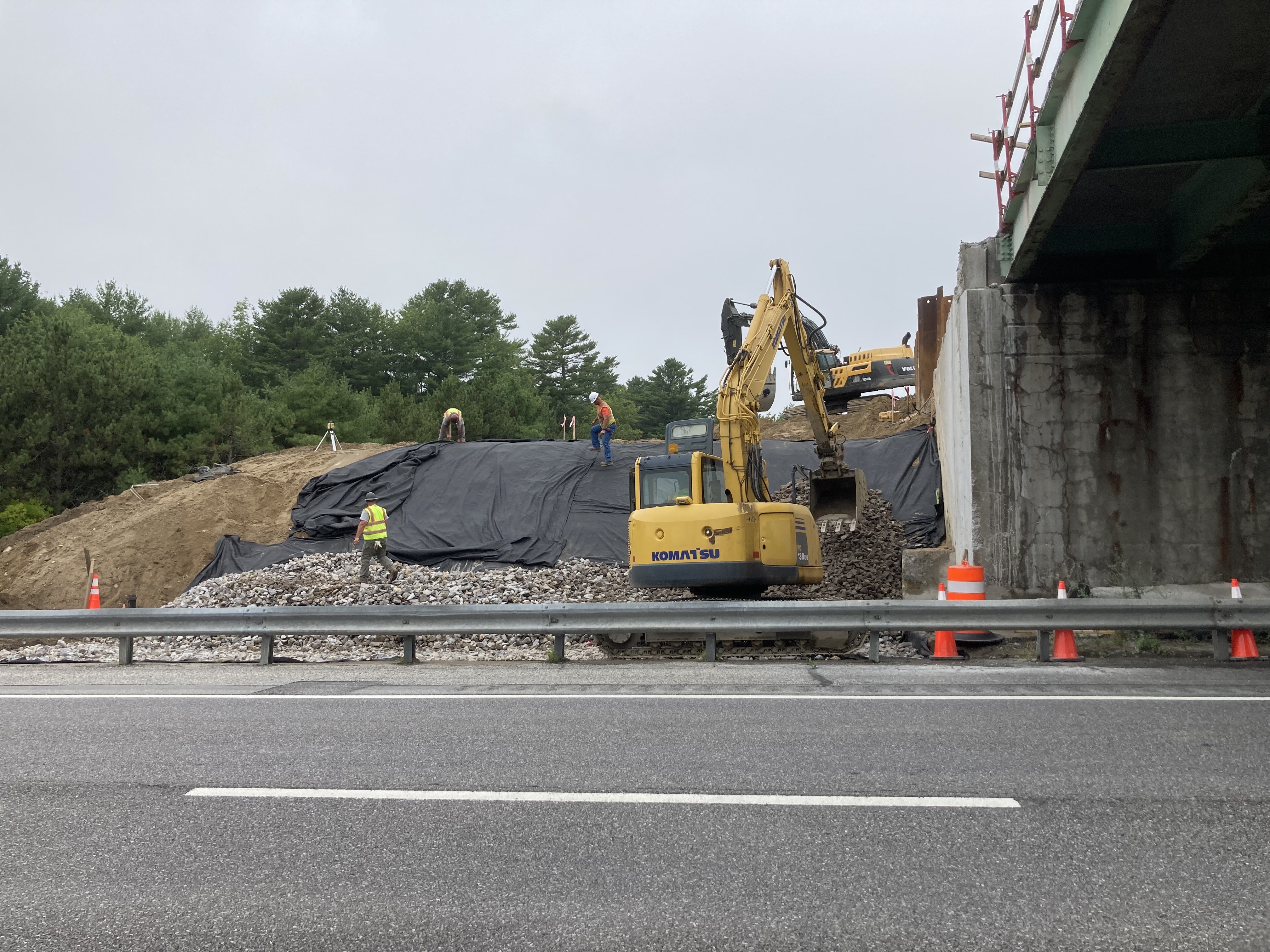

Riprap added
Pile Driving - Foundation
Pile Driving - Foundation
Pile Driving - Ground Level
Pile Driving - Top-Down

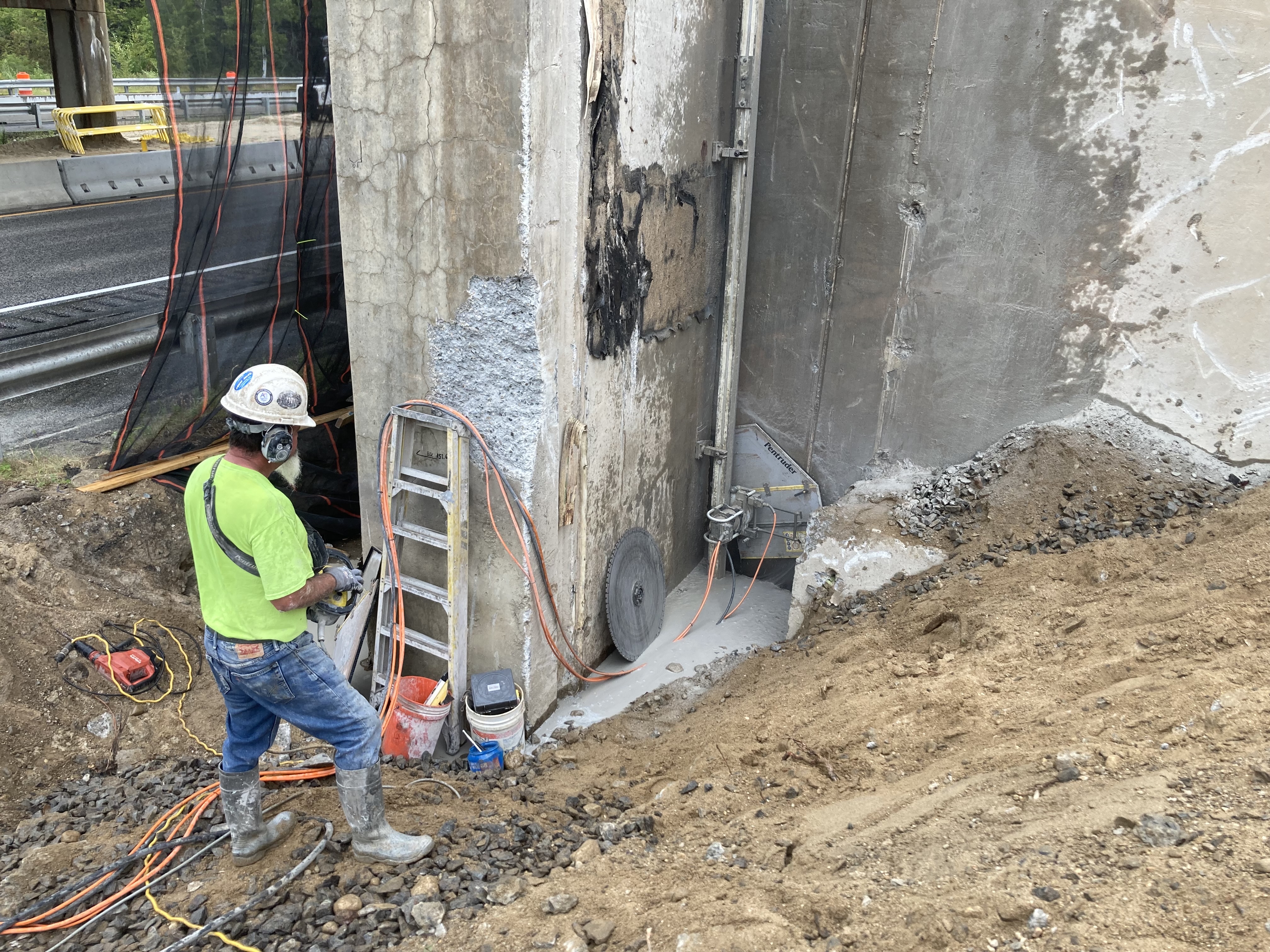

Saw Cutting

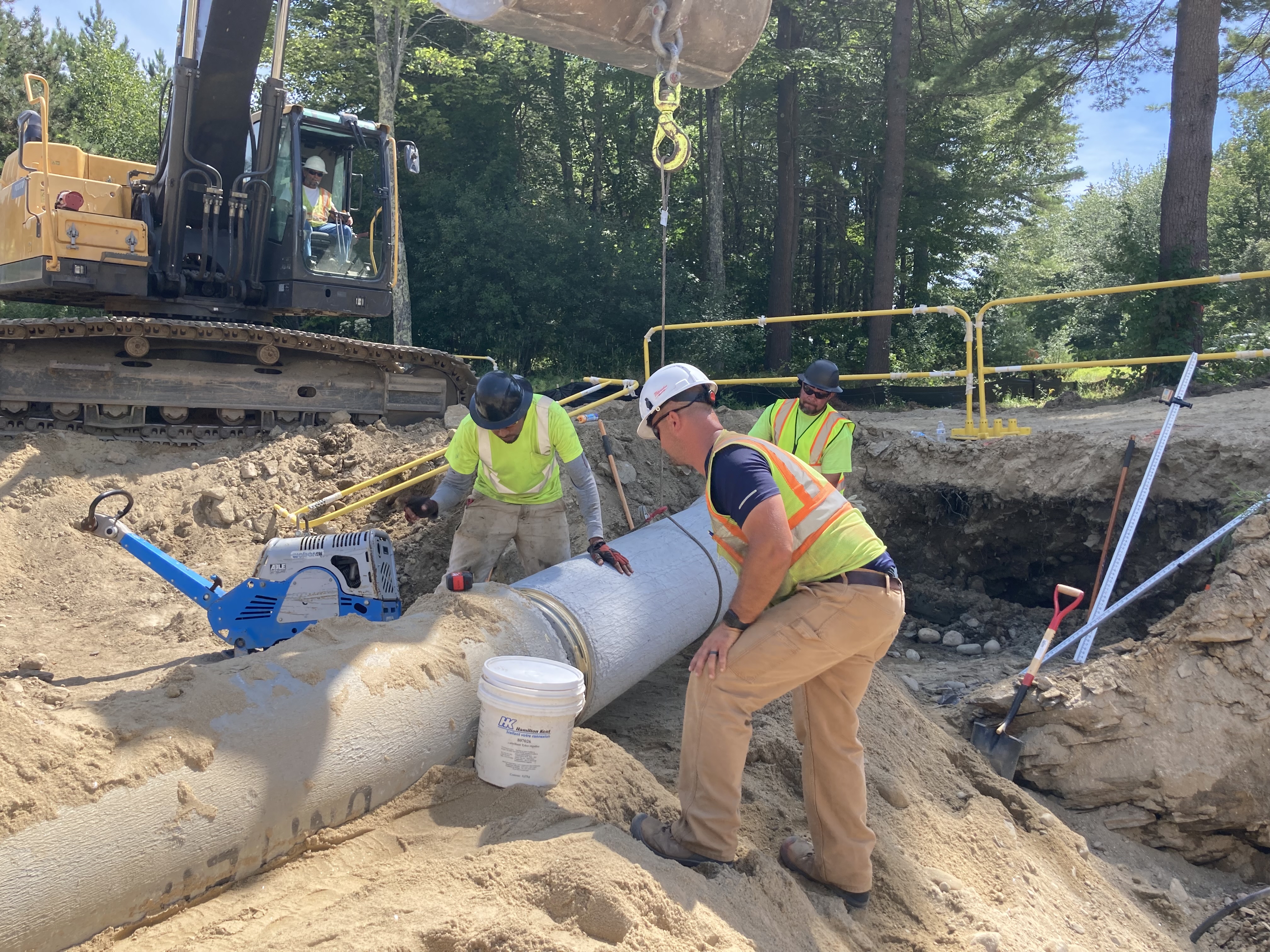

Drainage Pipe Installation
Drainage Pipe Placement

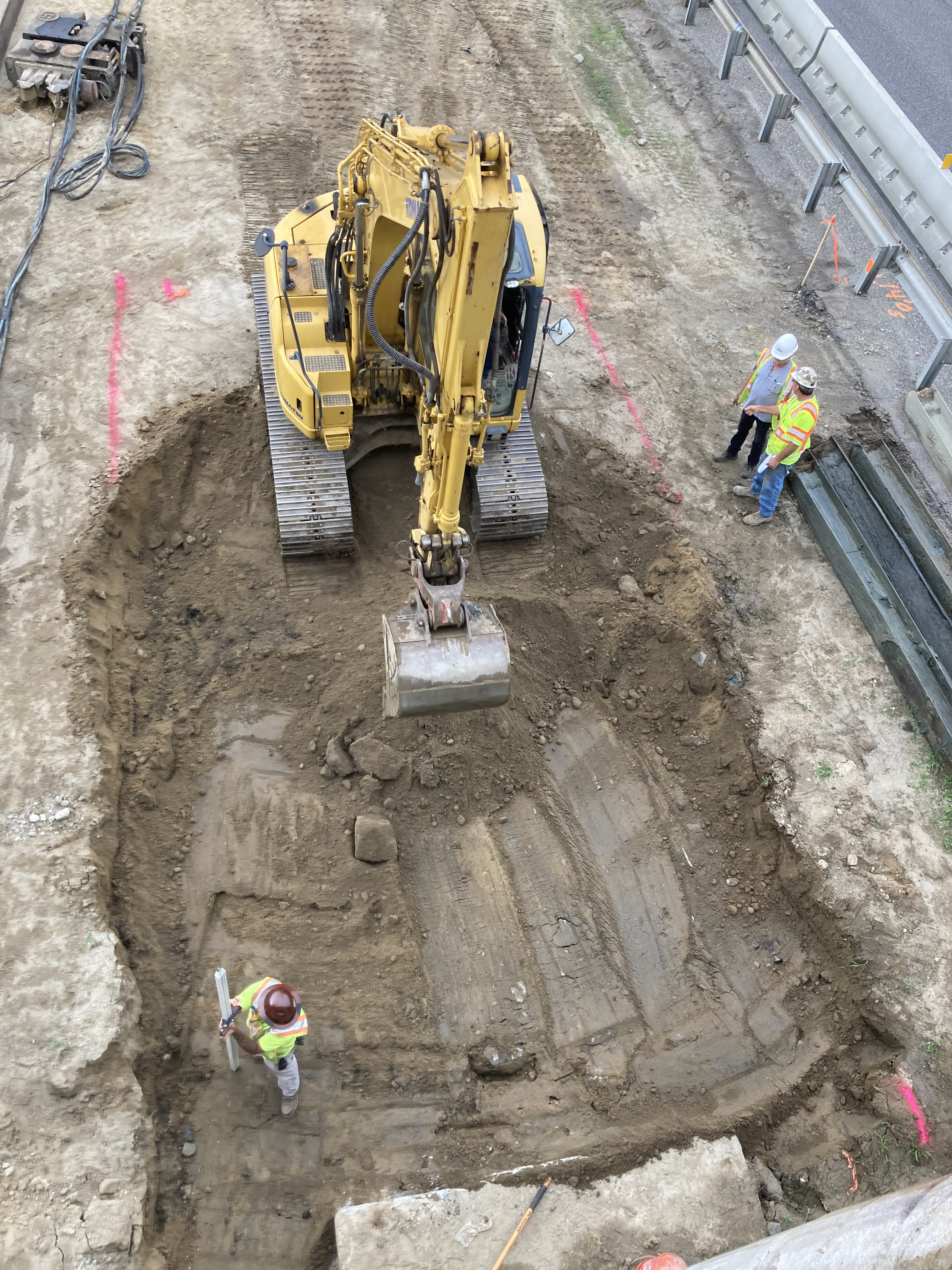

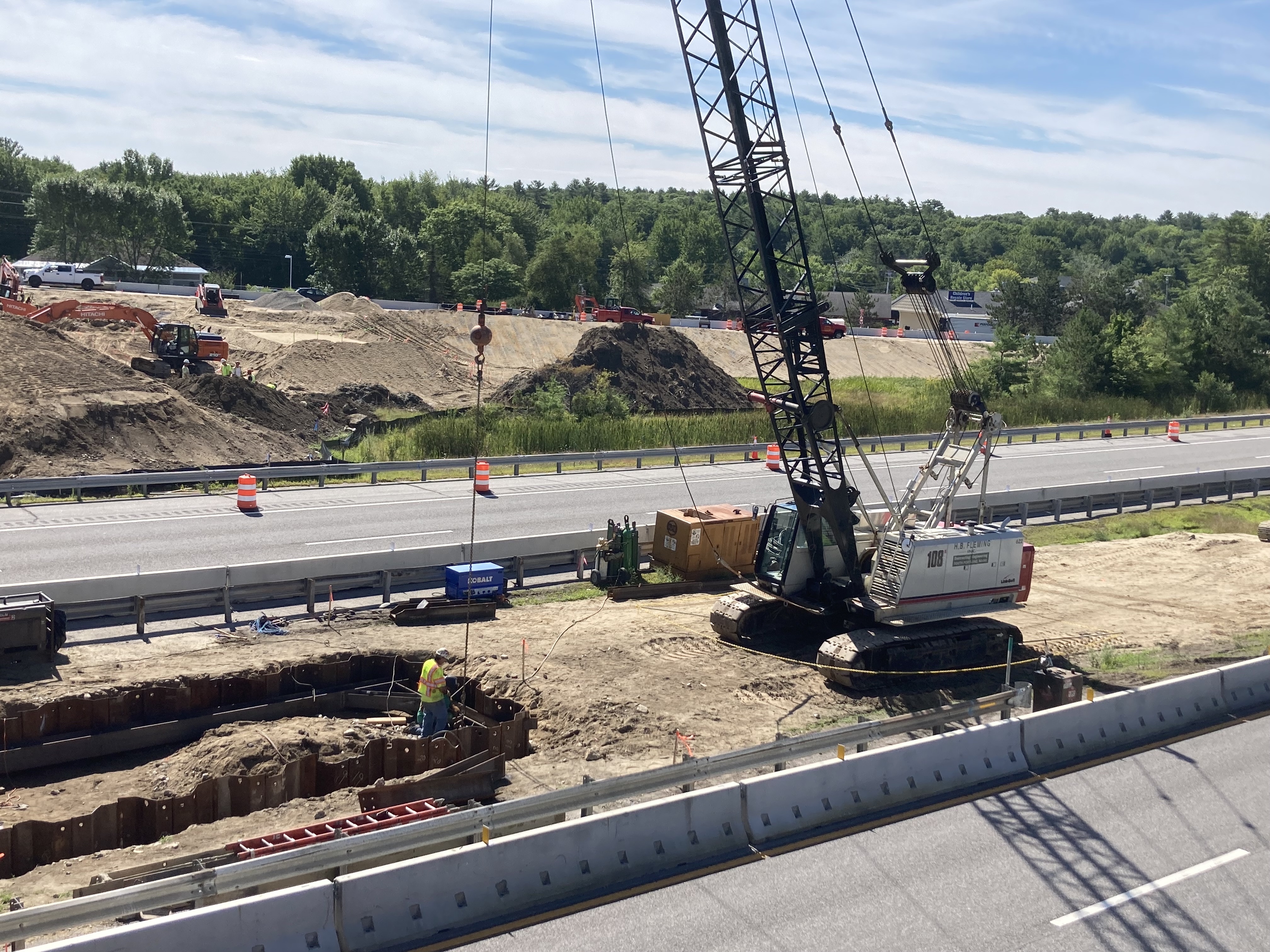

Pier Cofferdam
Pier Cofferdam

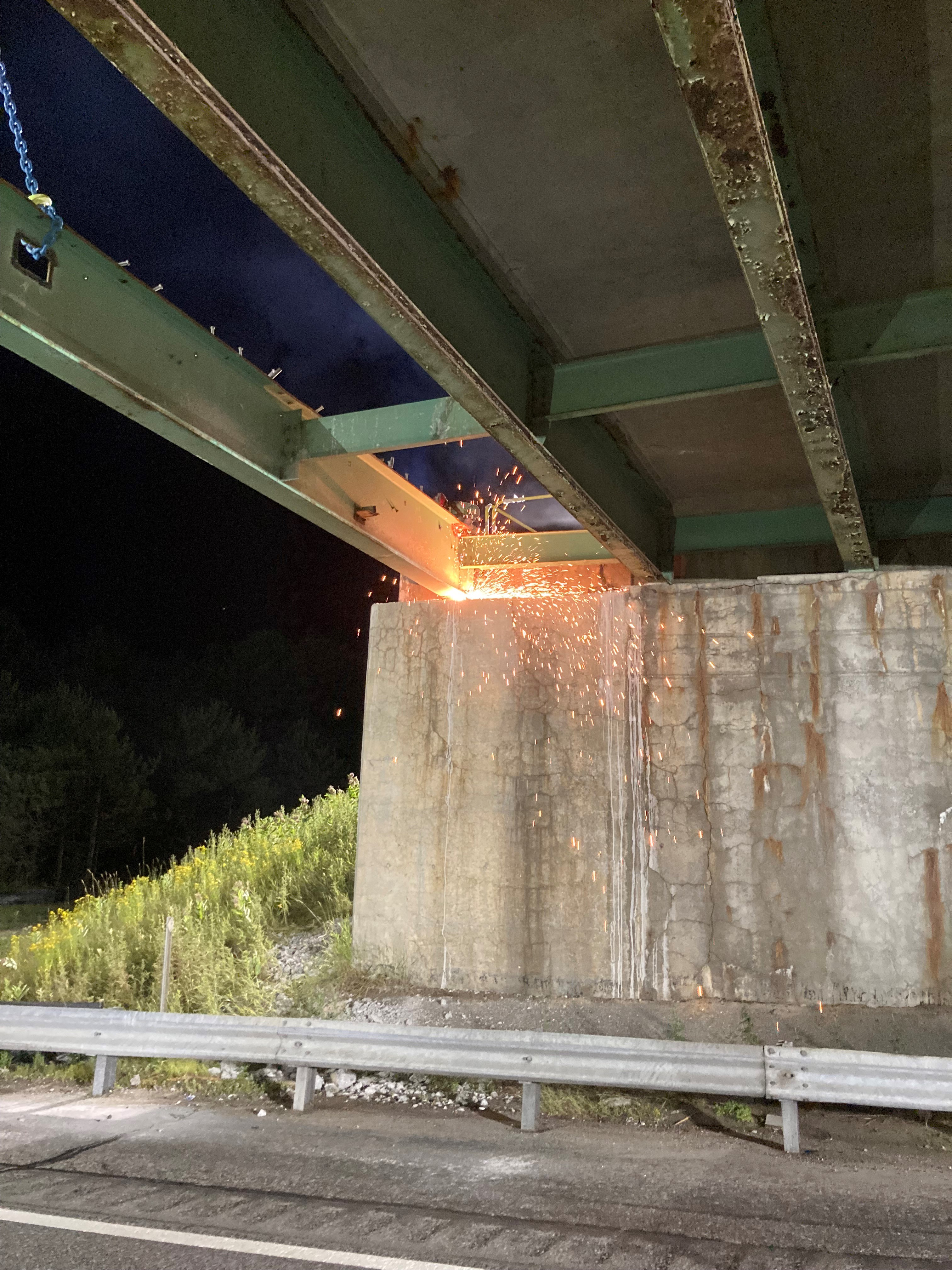

Cutting Diaphragms - Underside of Bridge

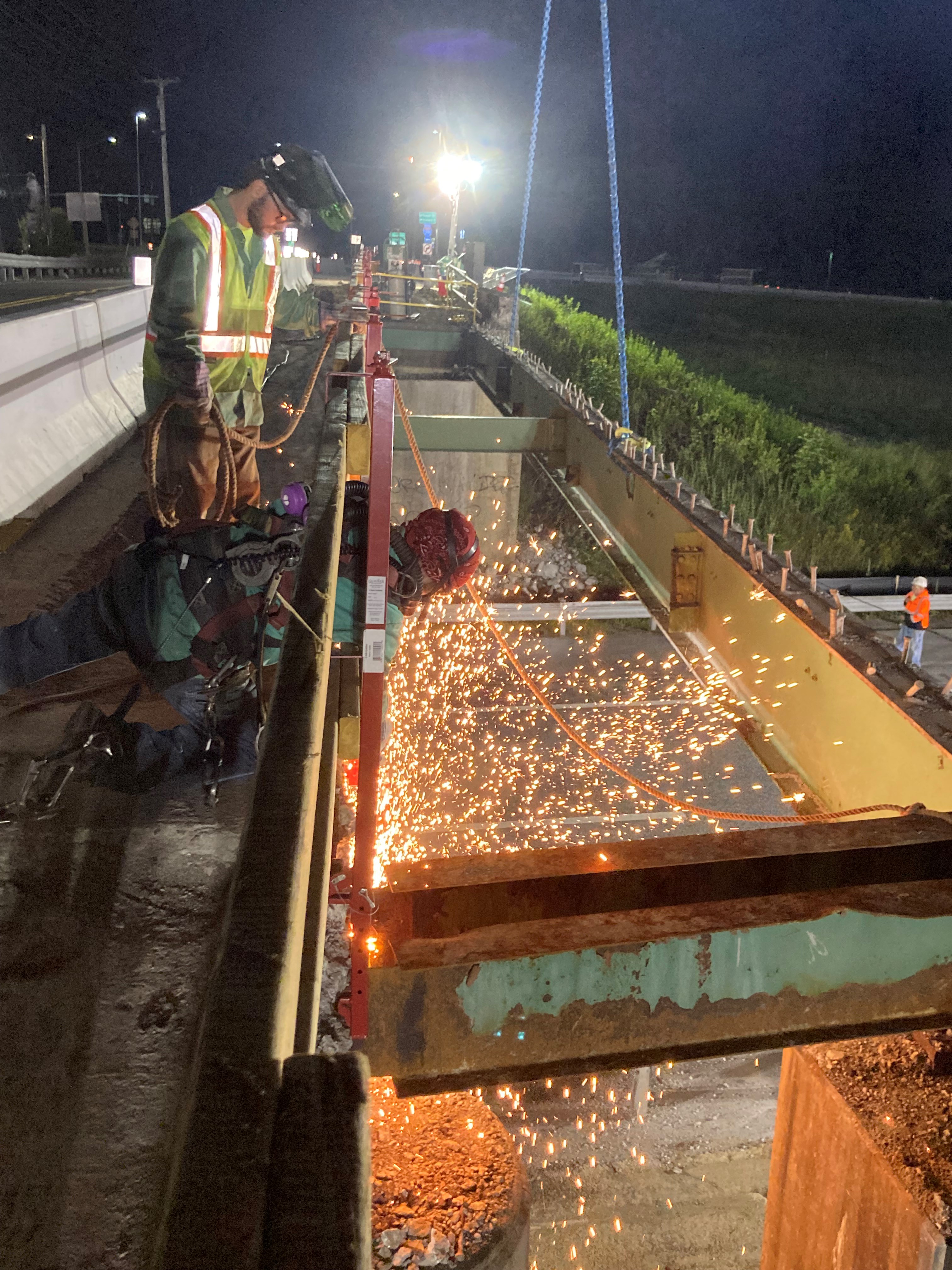

Cutting Diaphragms - Top of Bridge
Beam Removal - Street View
Beam Removal
Deck Removed
Removing False Work

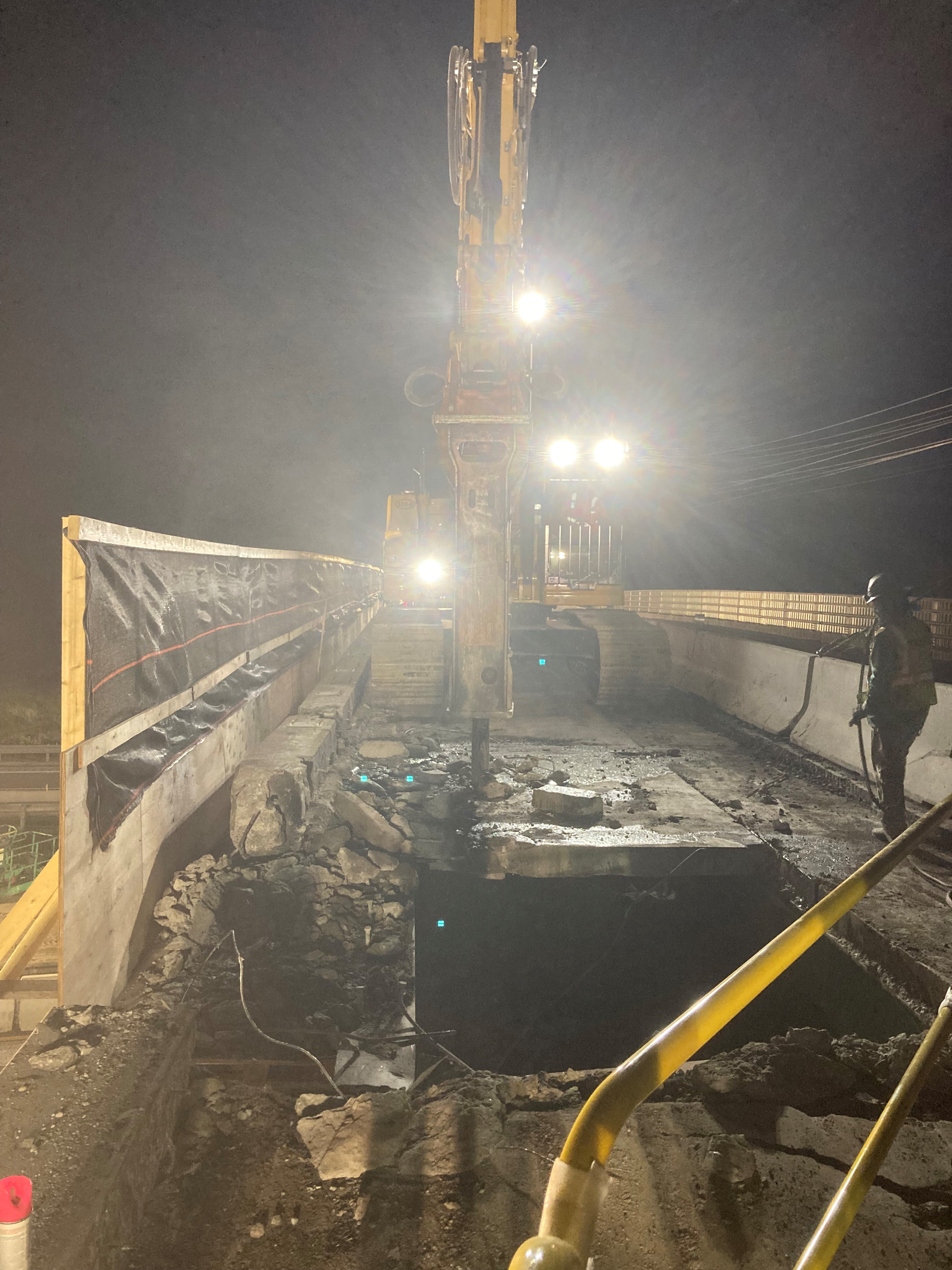

Removing Deck

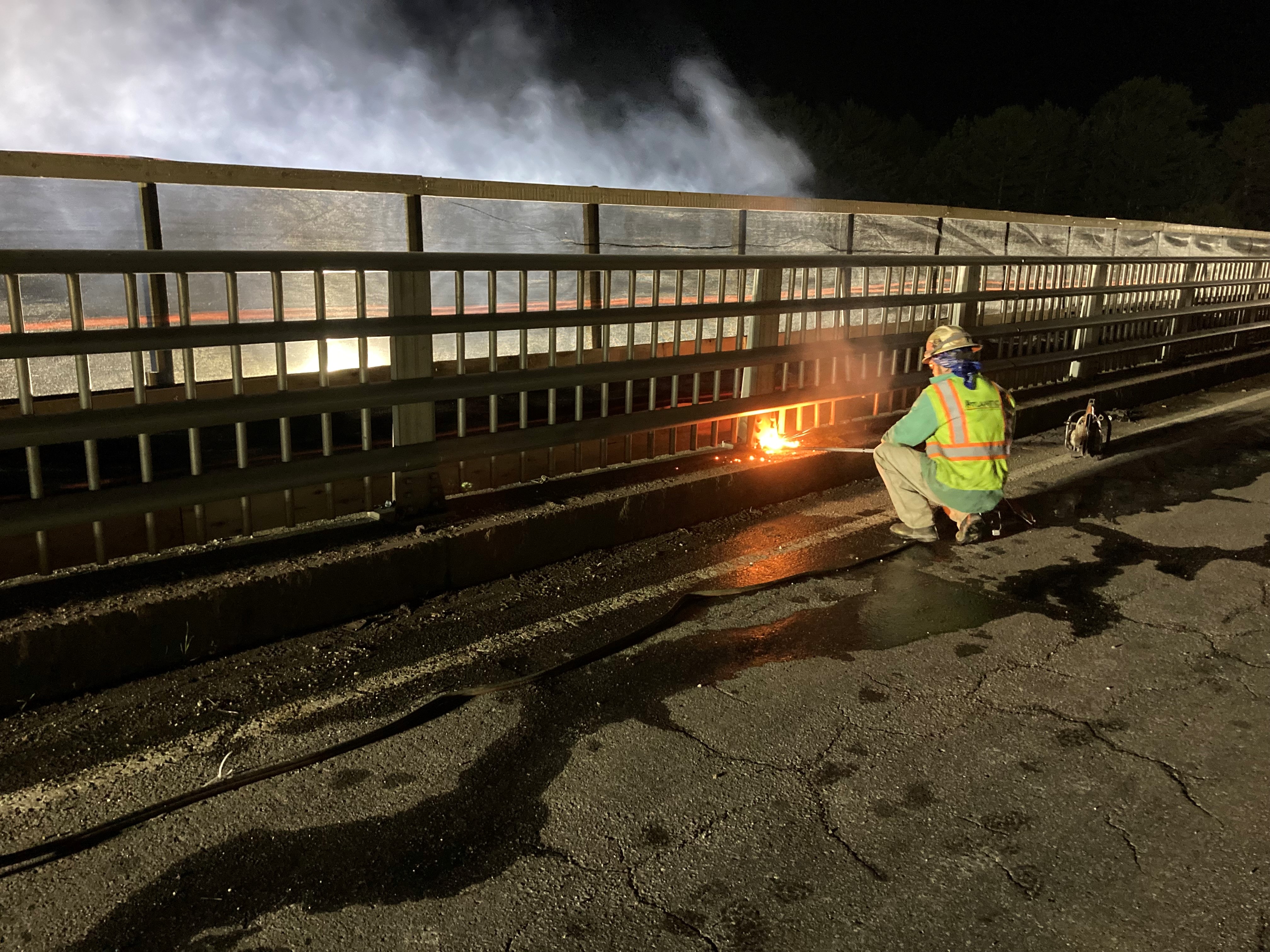

Removing Bridge Rail

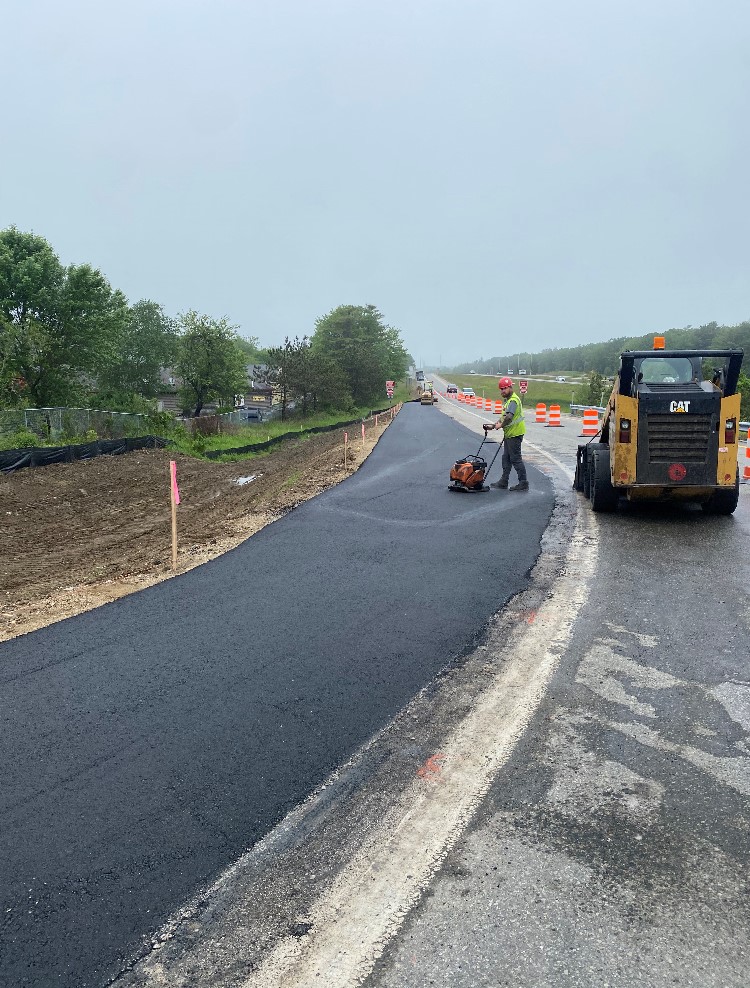

Temporary Ramp Paving

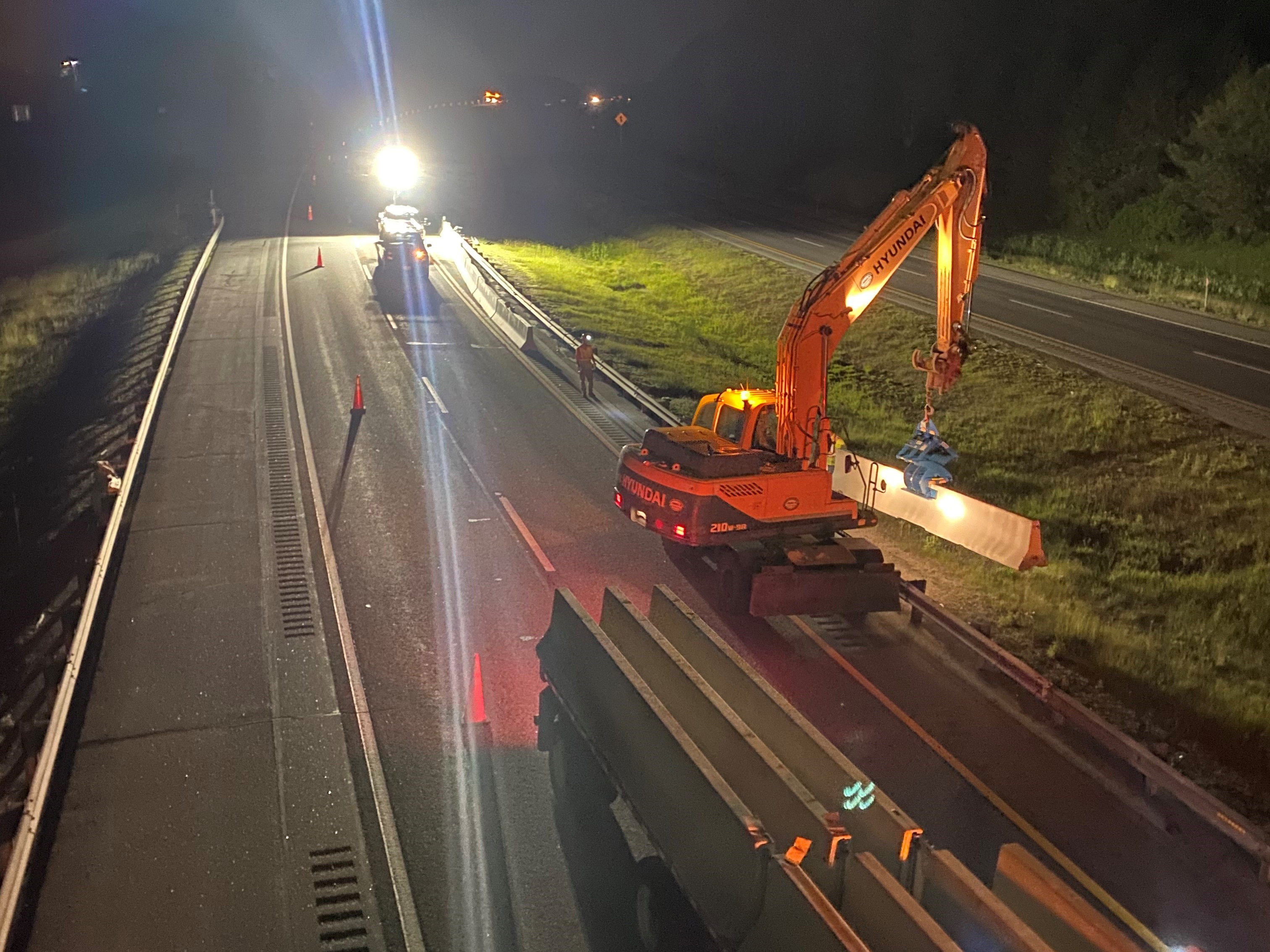

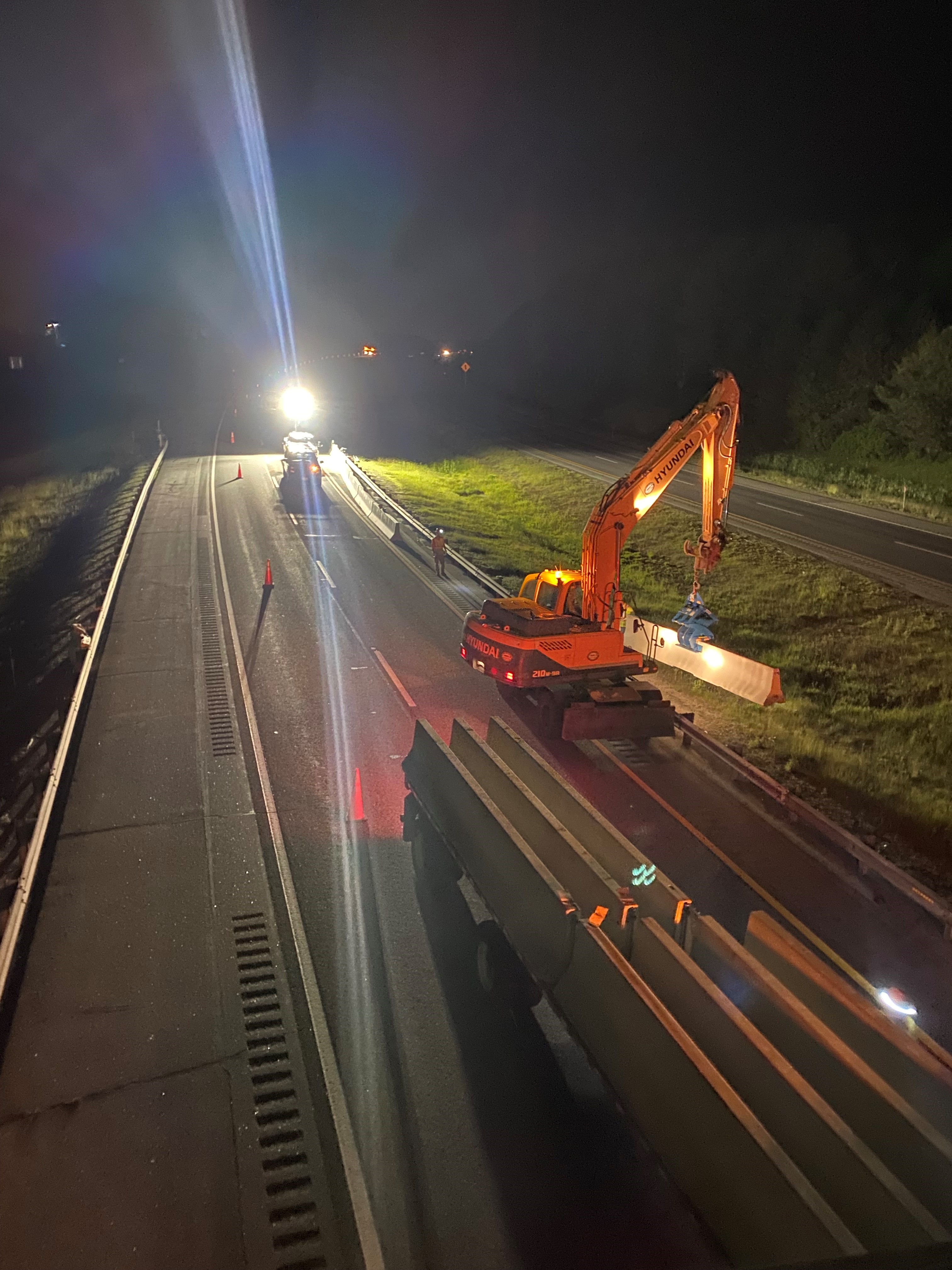

Northbound temporary barrier installation

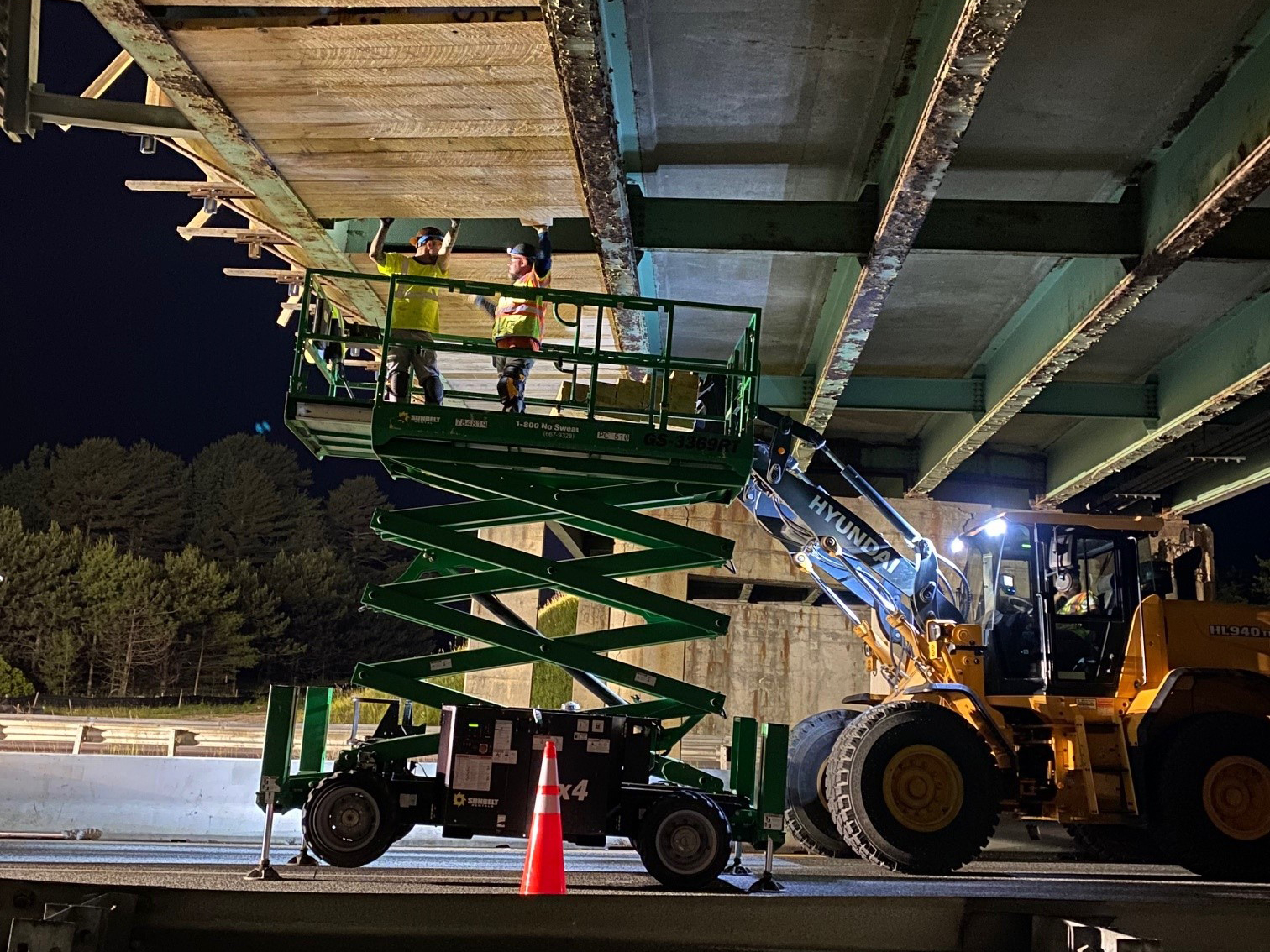

Northbound phase 1 shielding installation

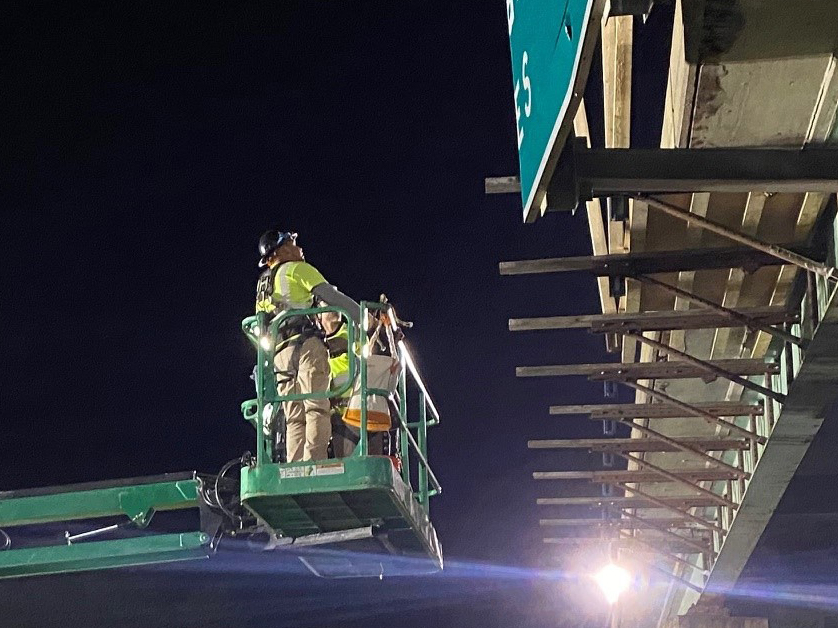

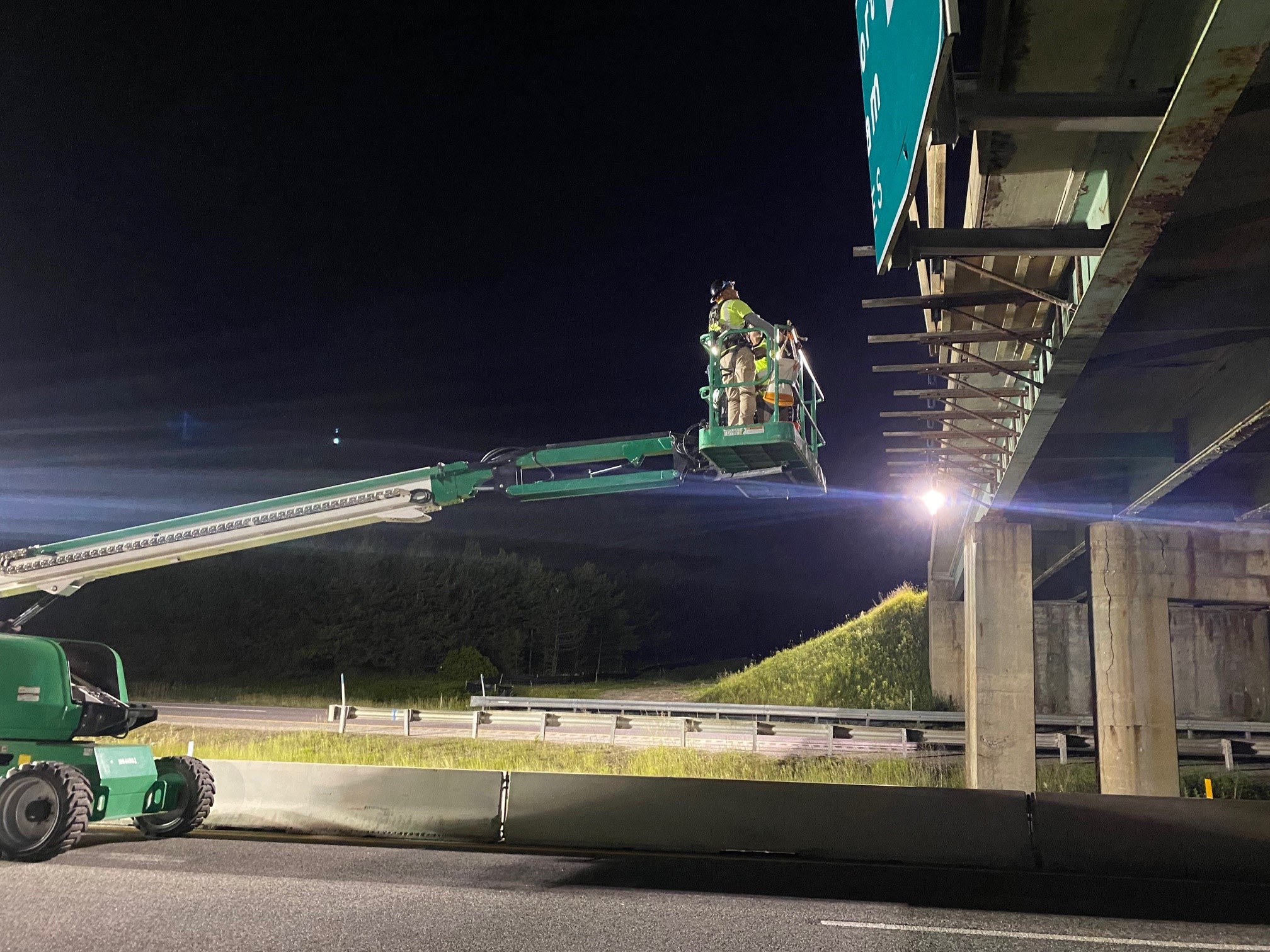

Northbound overhang bracket installation
Widening northbound off-ramp

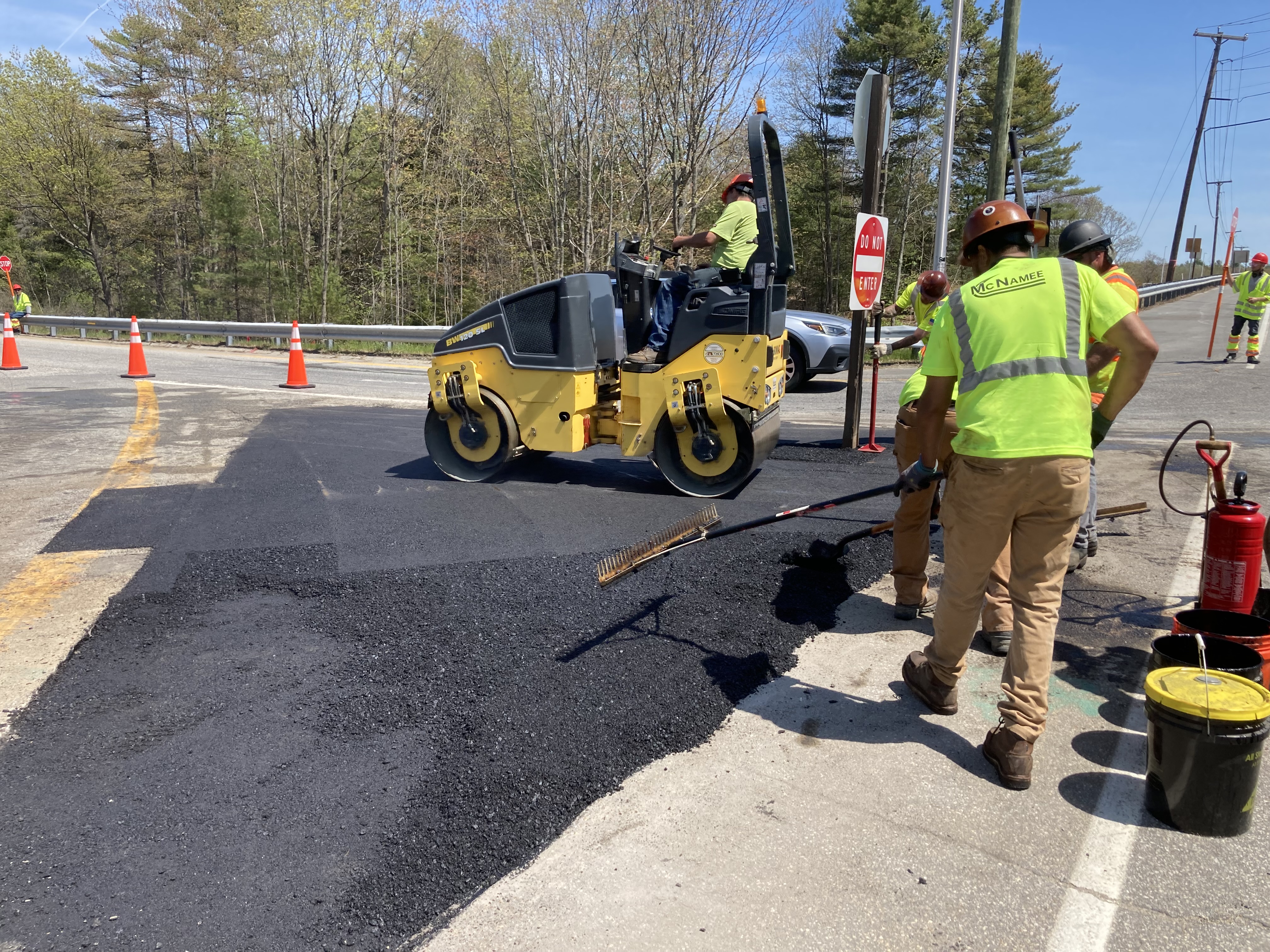

Temporary lane paving
Temporary median painting

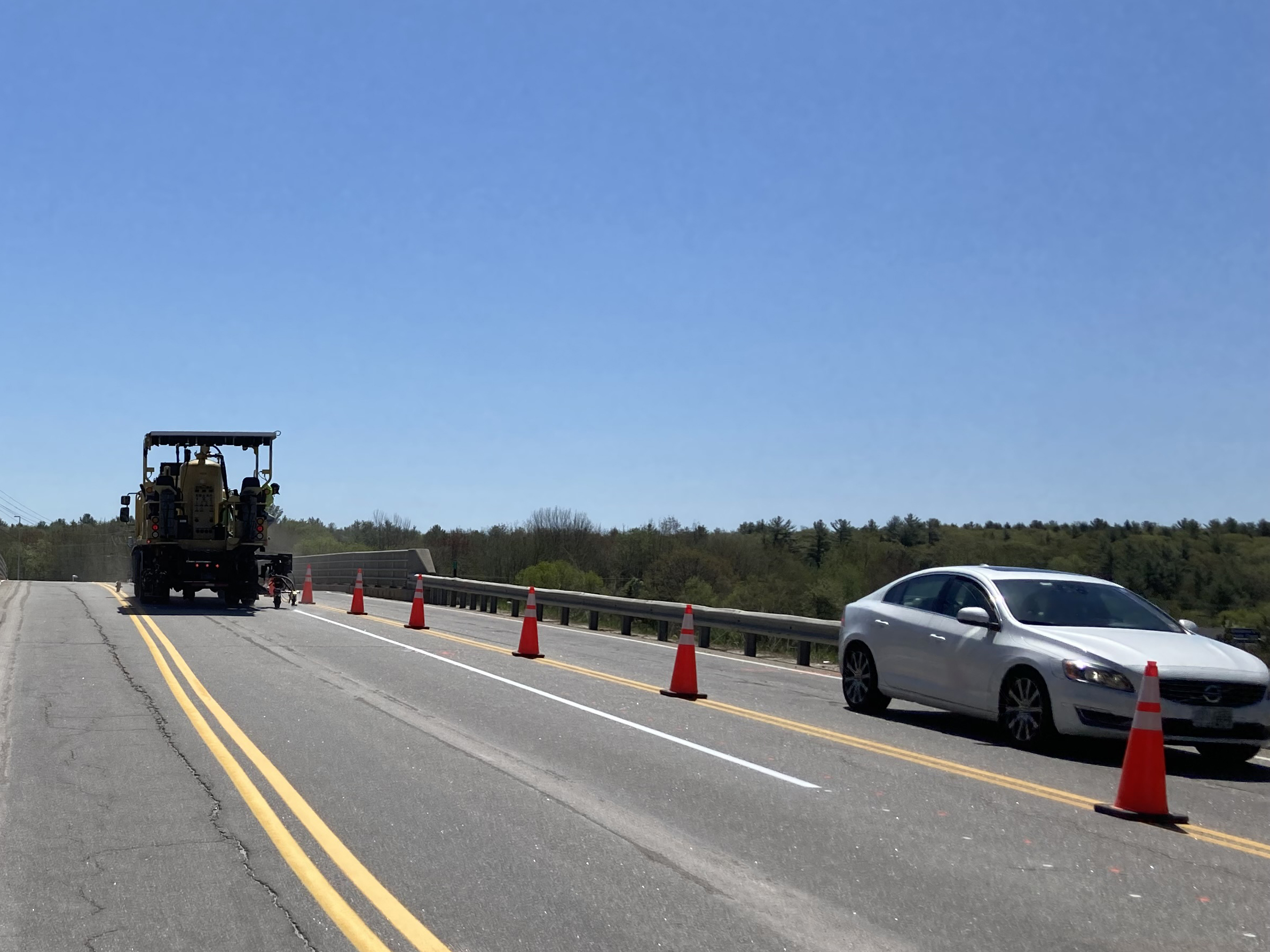

Temporary lane striping

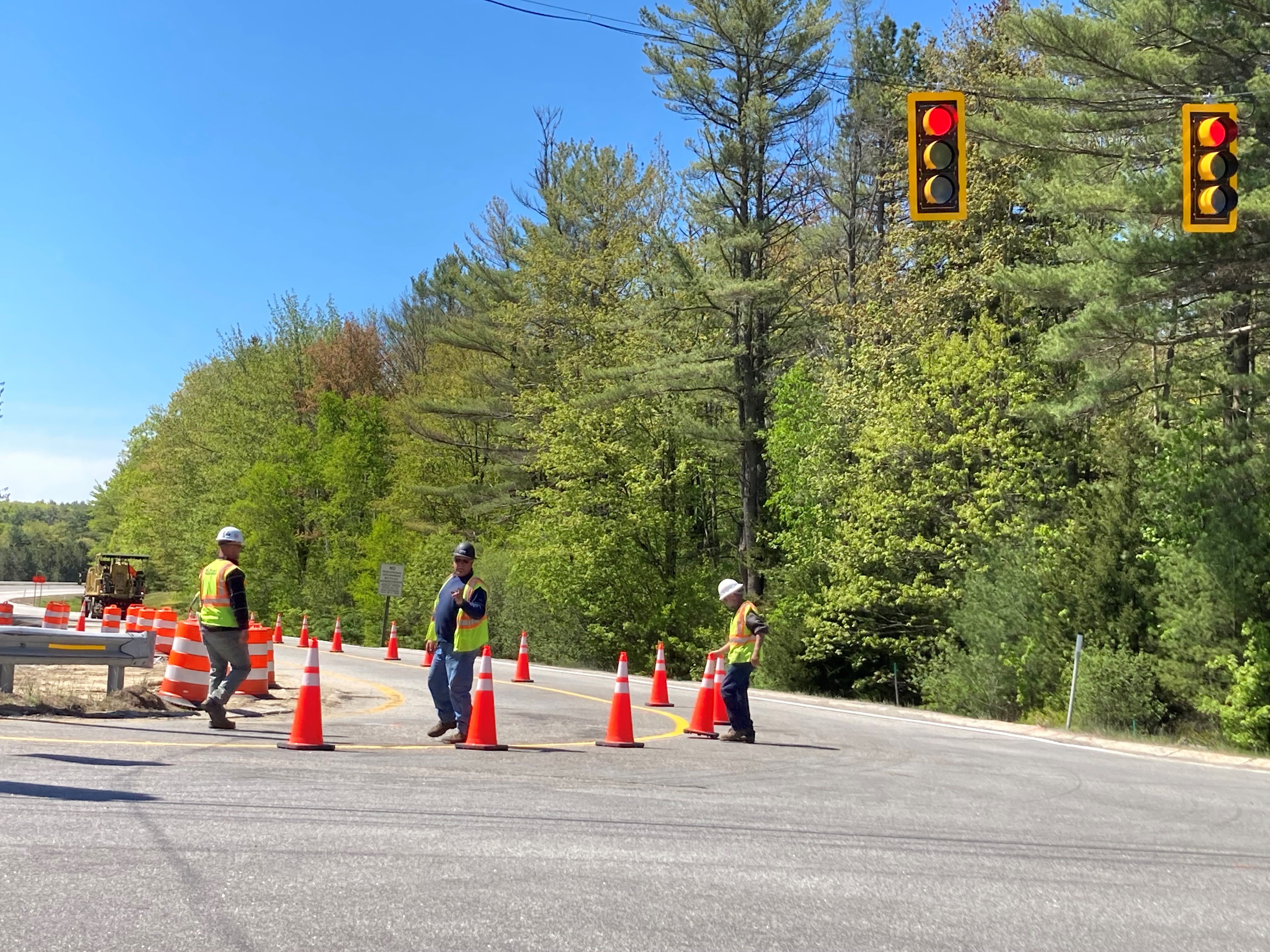

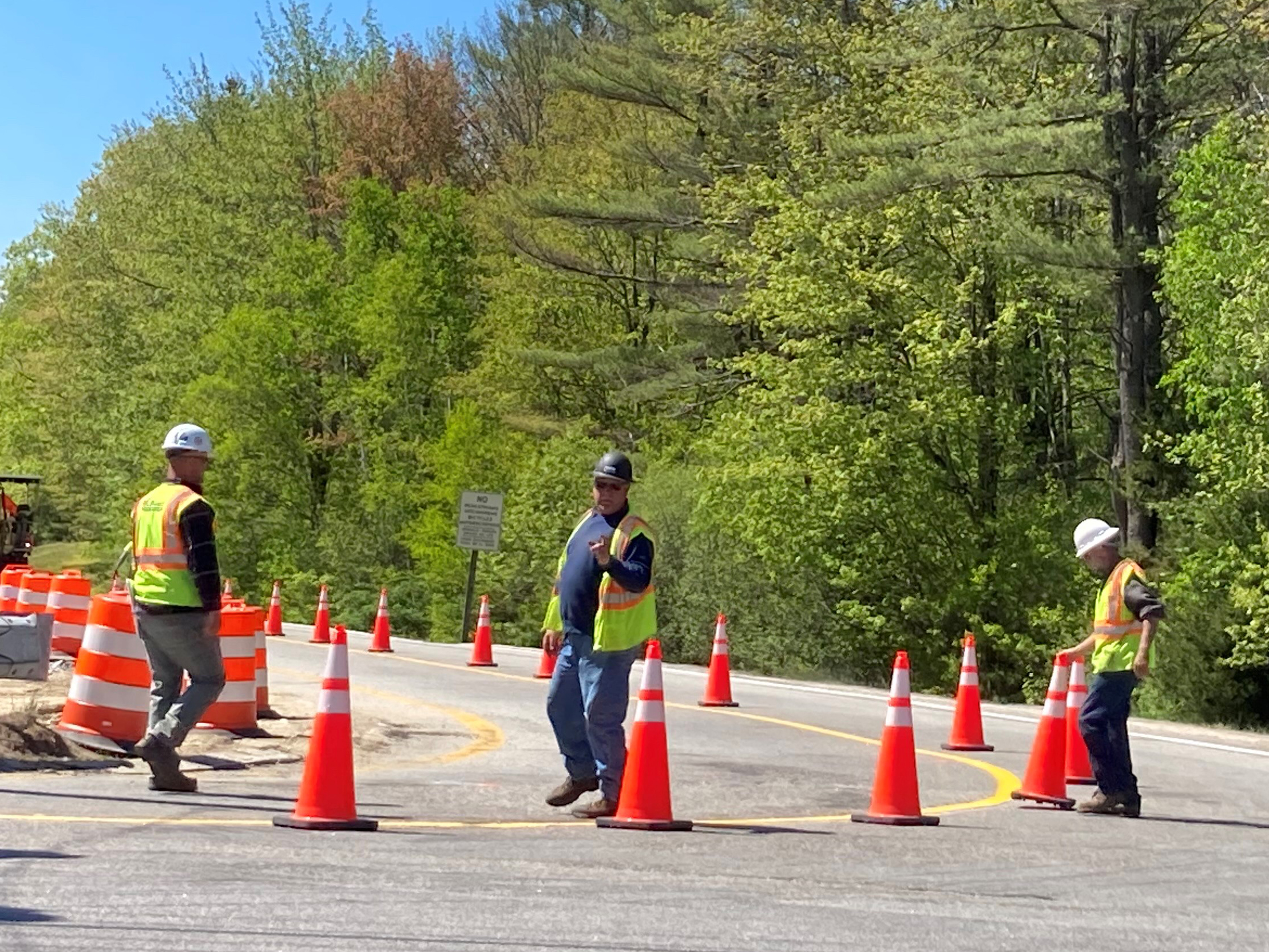

Setting up temporary lanes

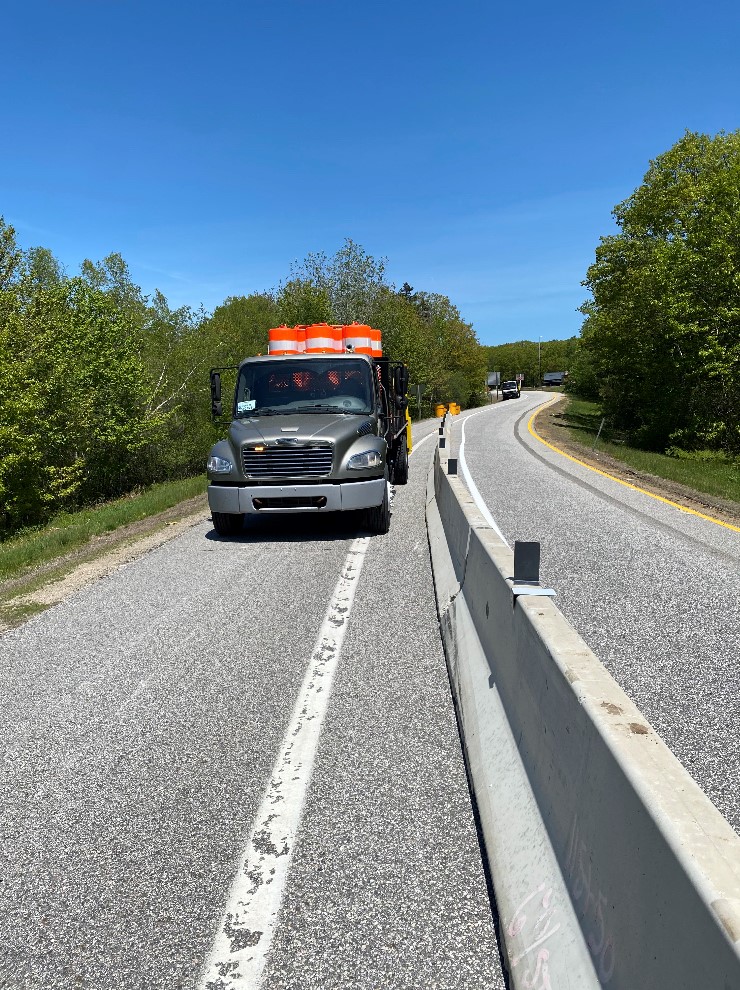

Setting temporary barriers

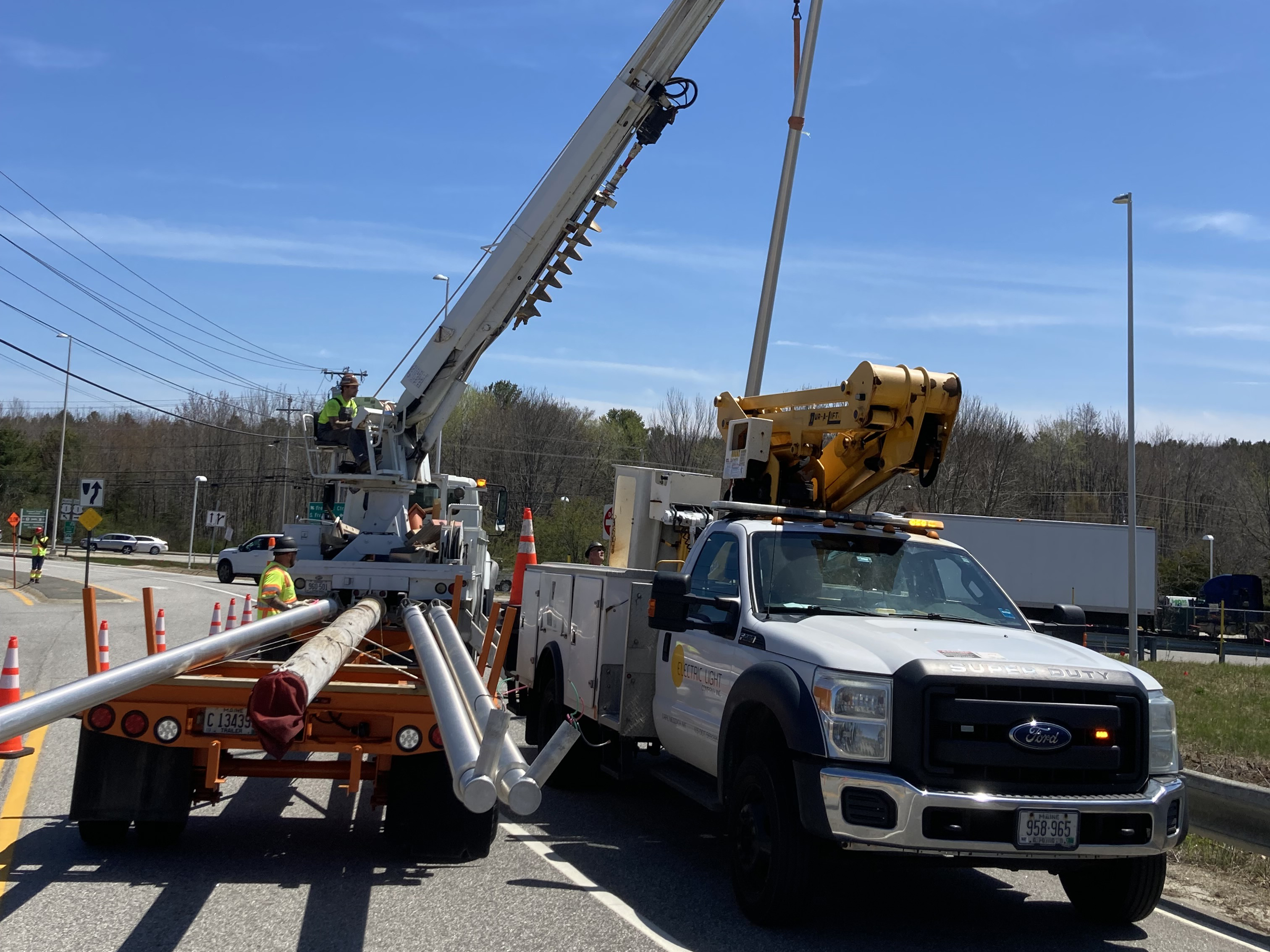

Removing light poles
Placing temporary barricades near bridge

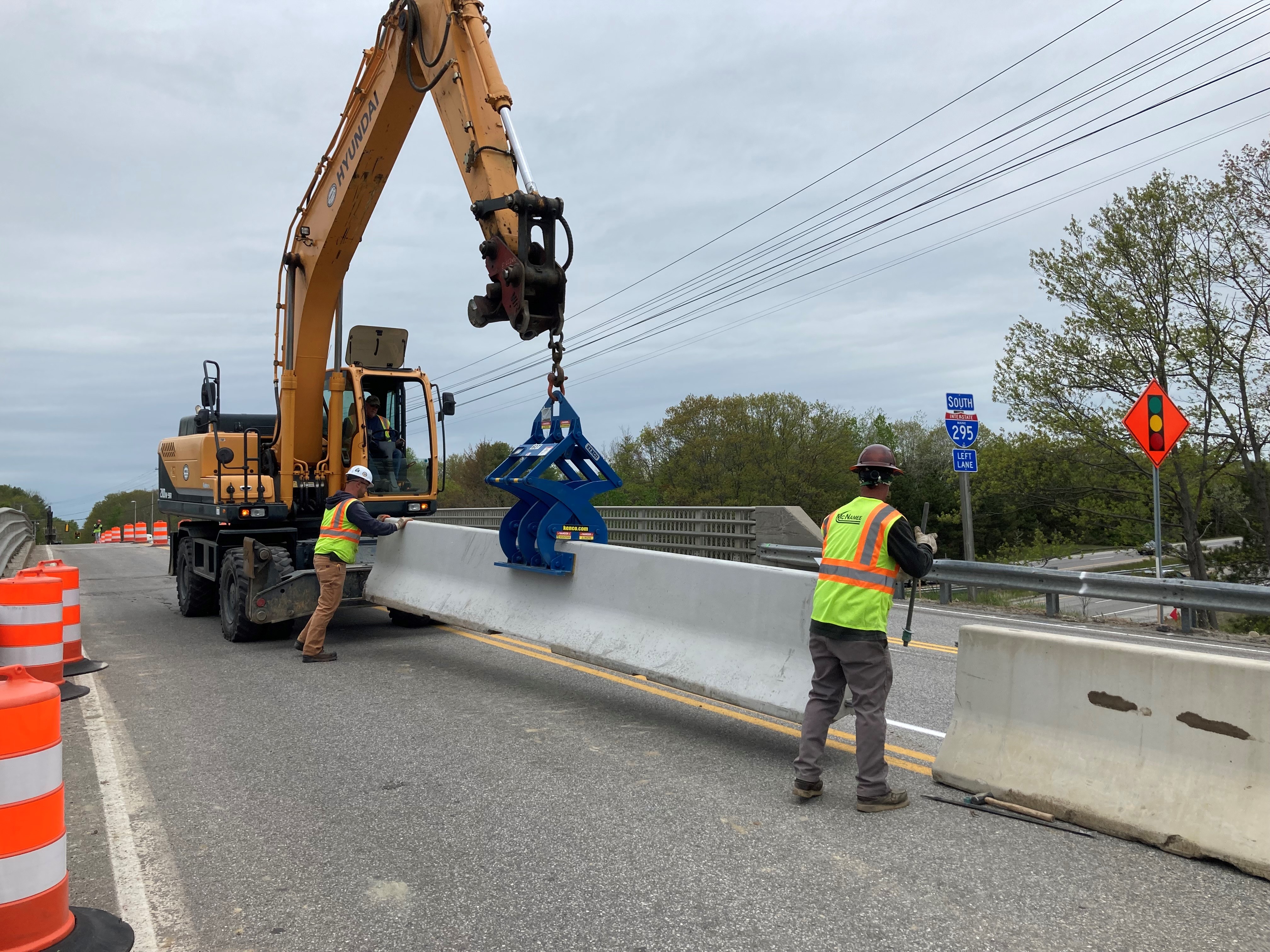

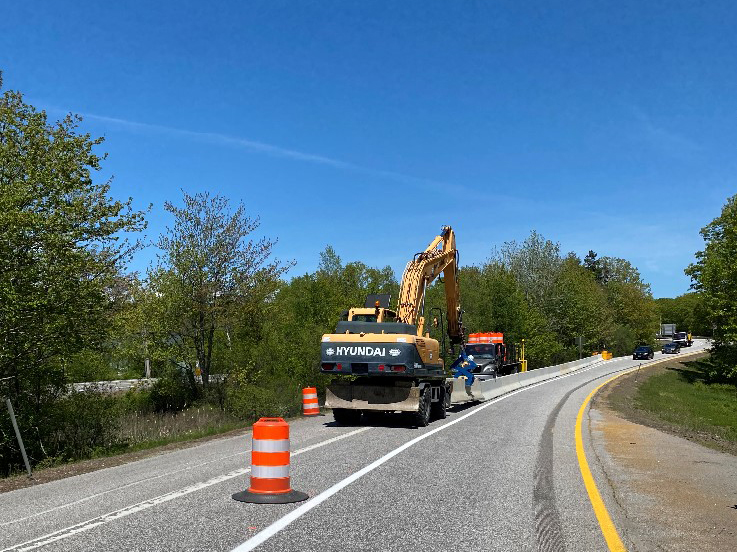

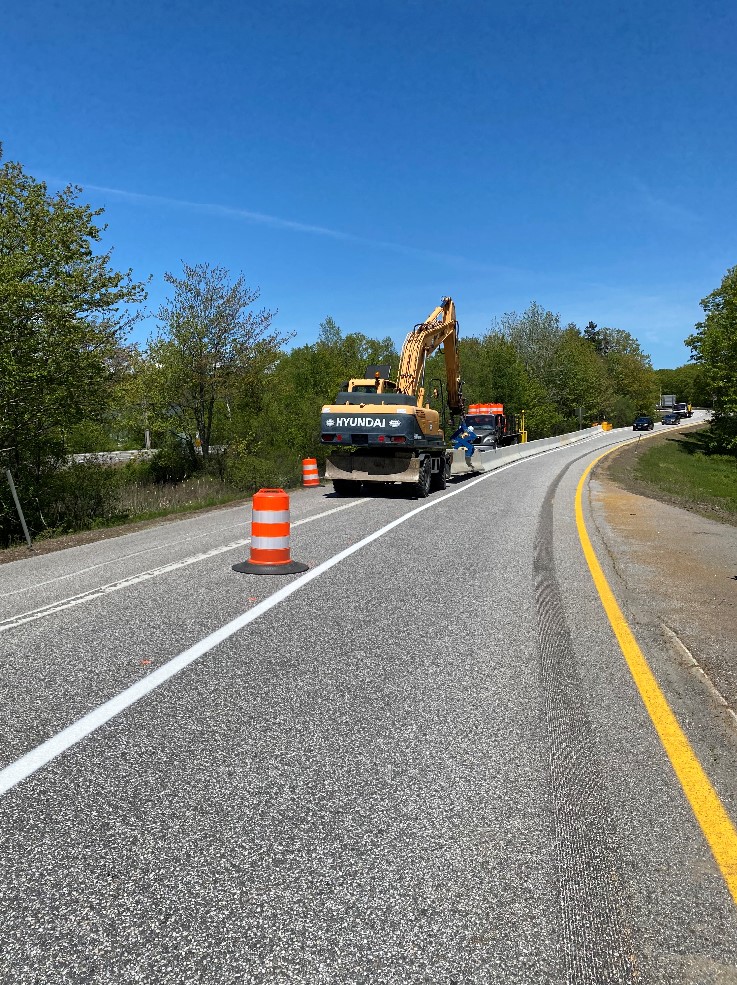

Placing temporary barricades

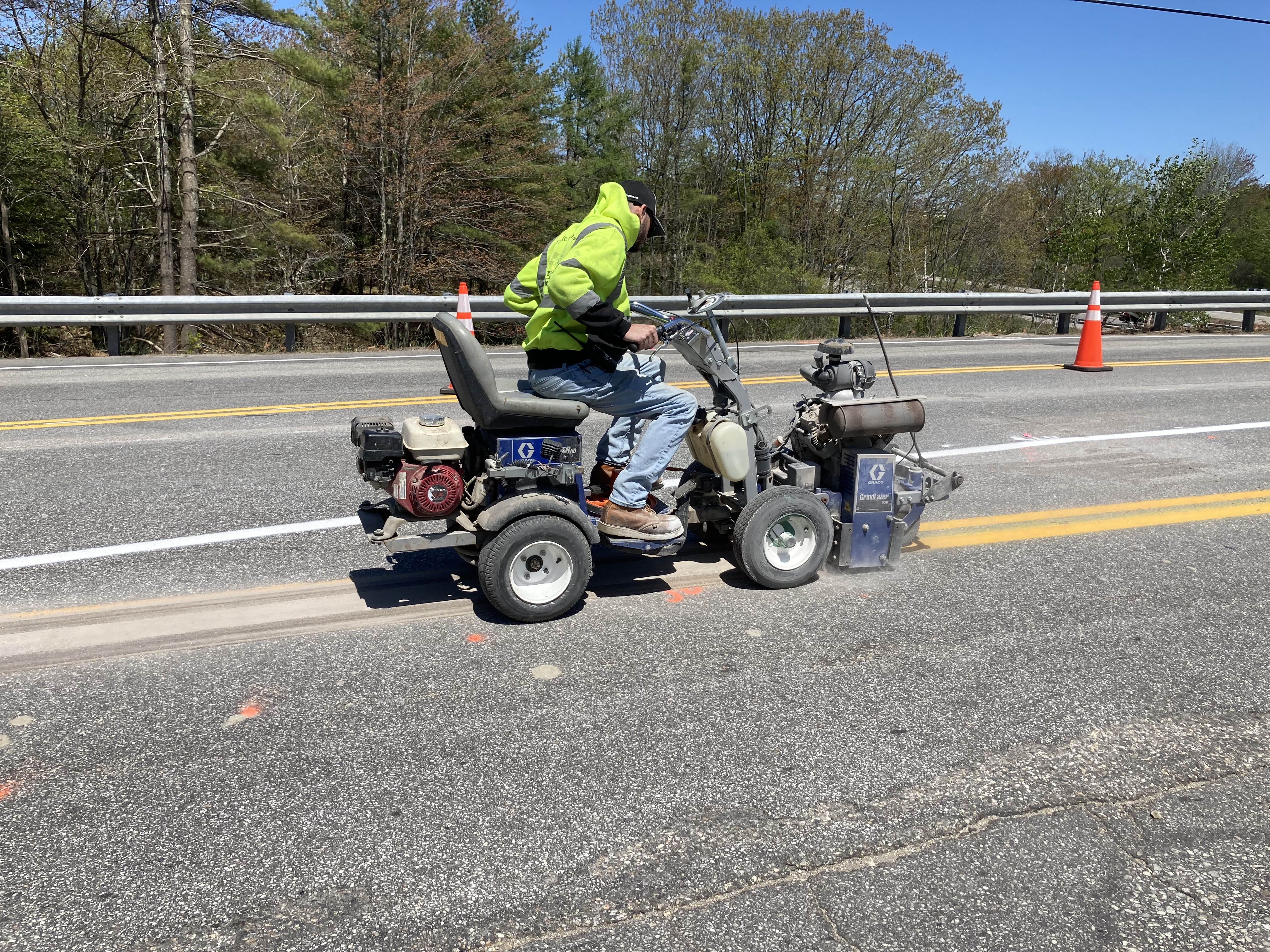

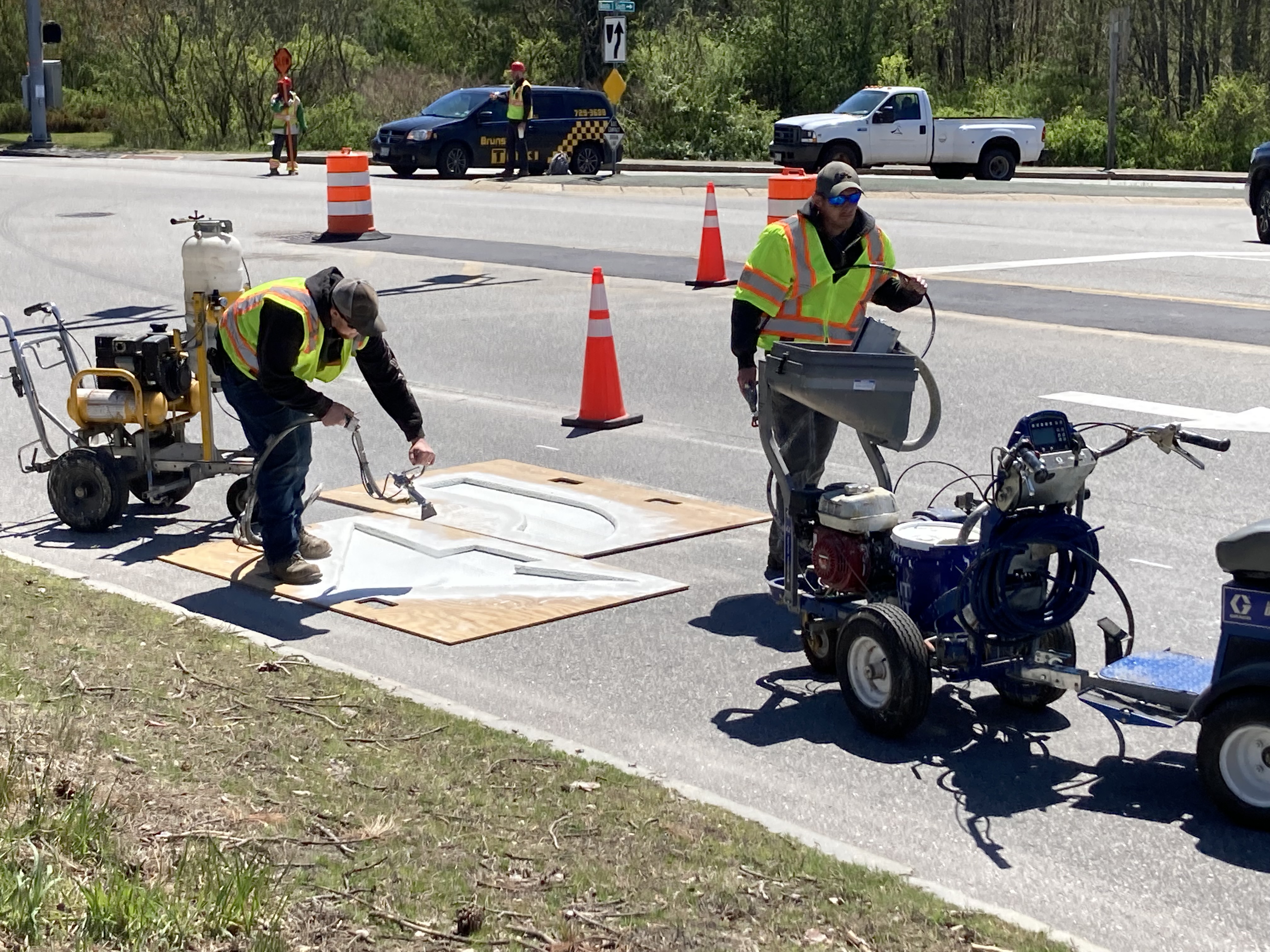

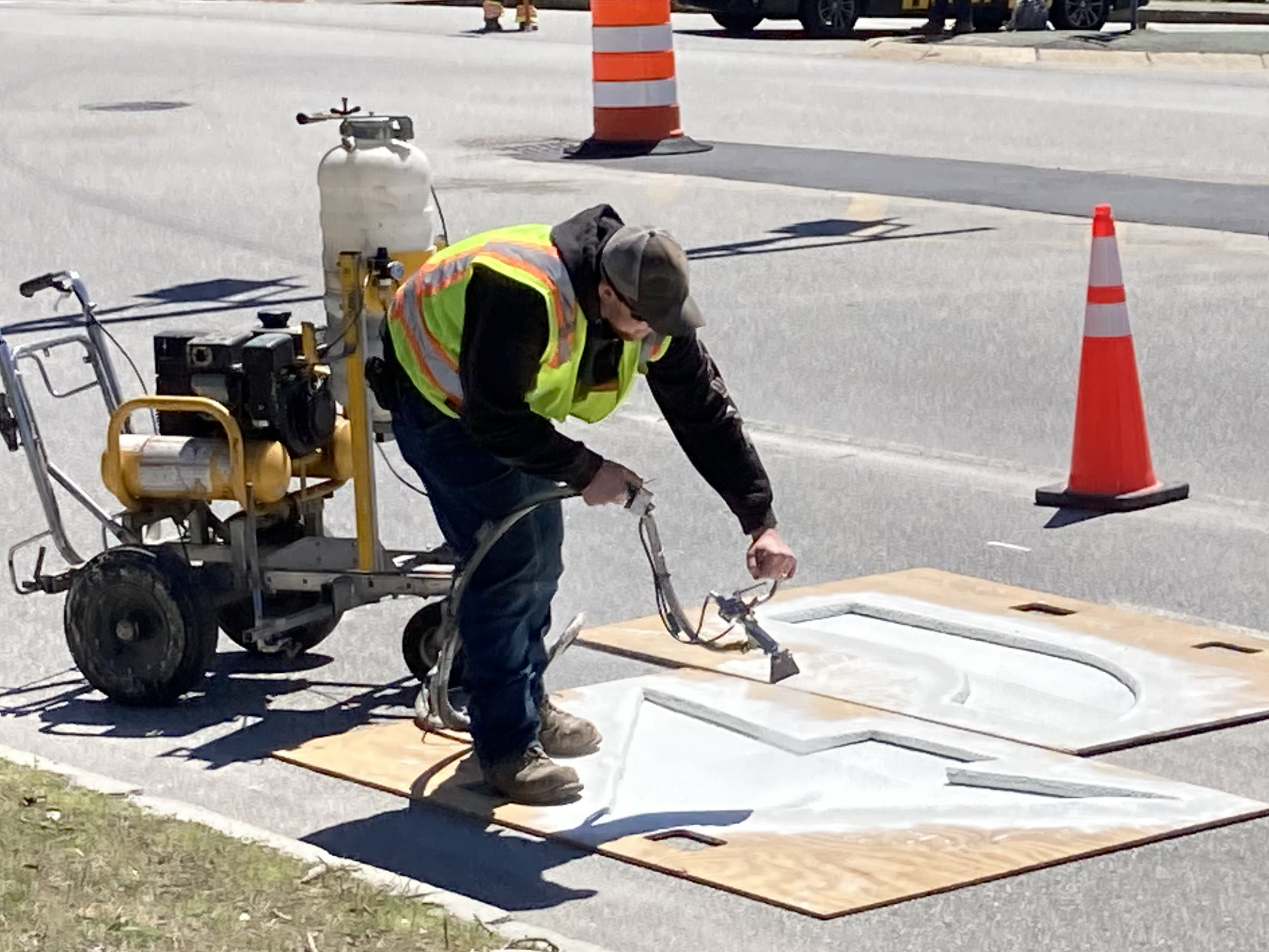

Painting temporary pavement markings

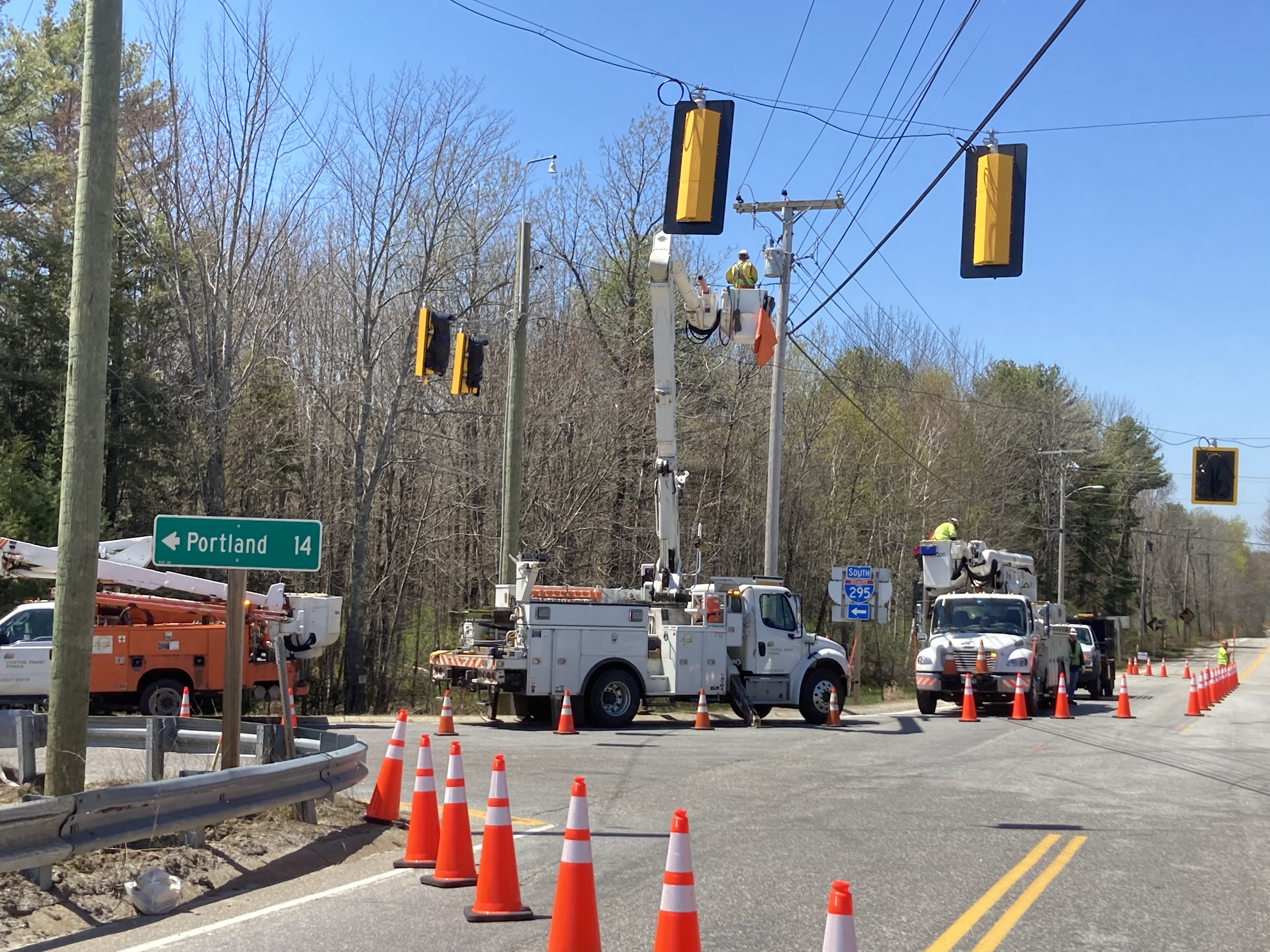

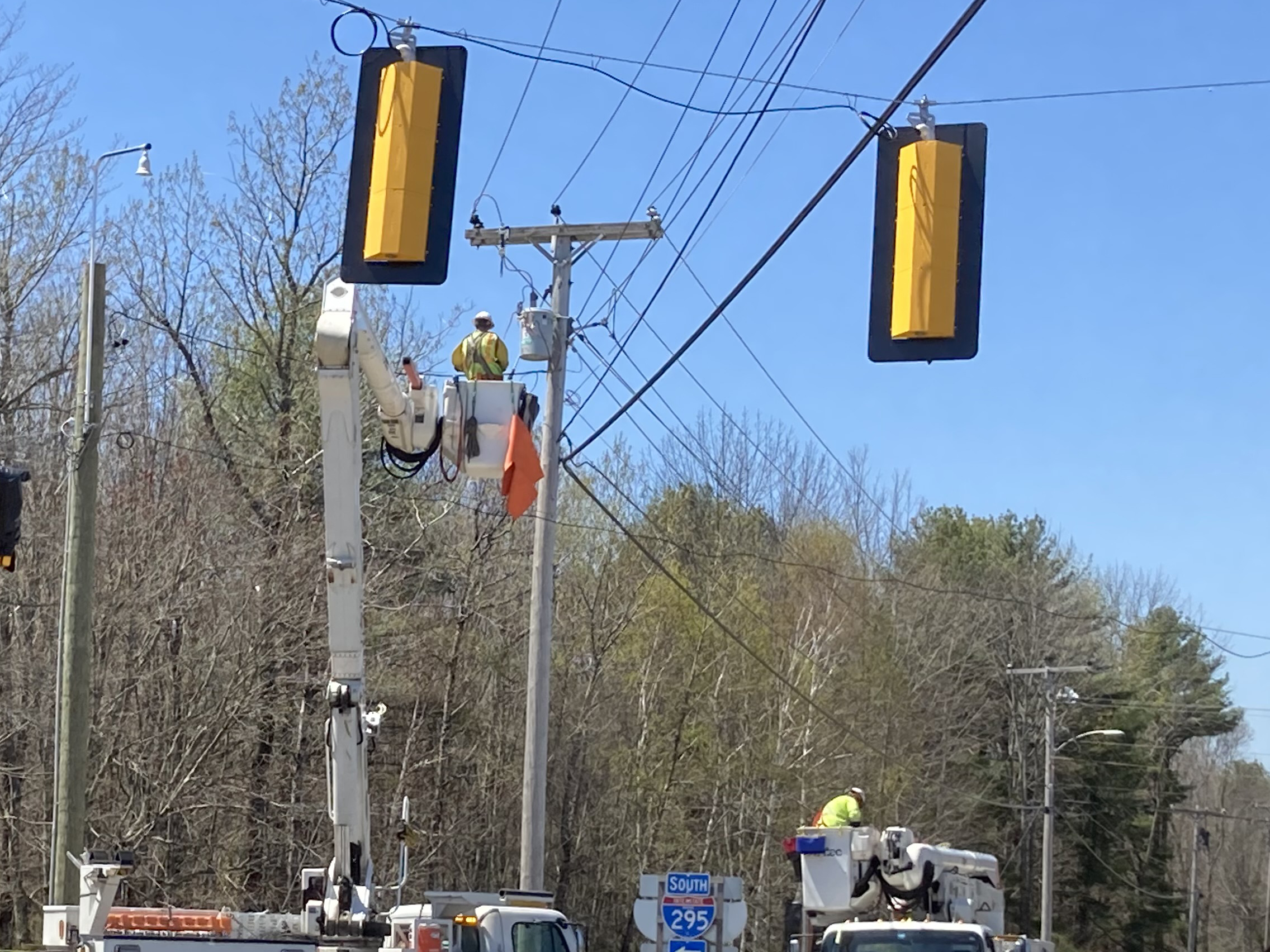

Hooking power to a temporary signal

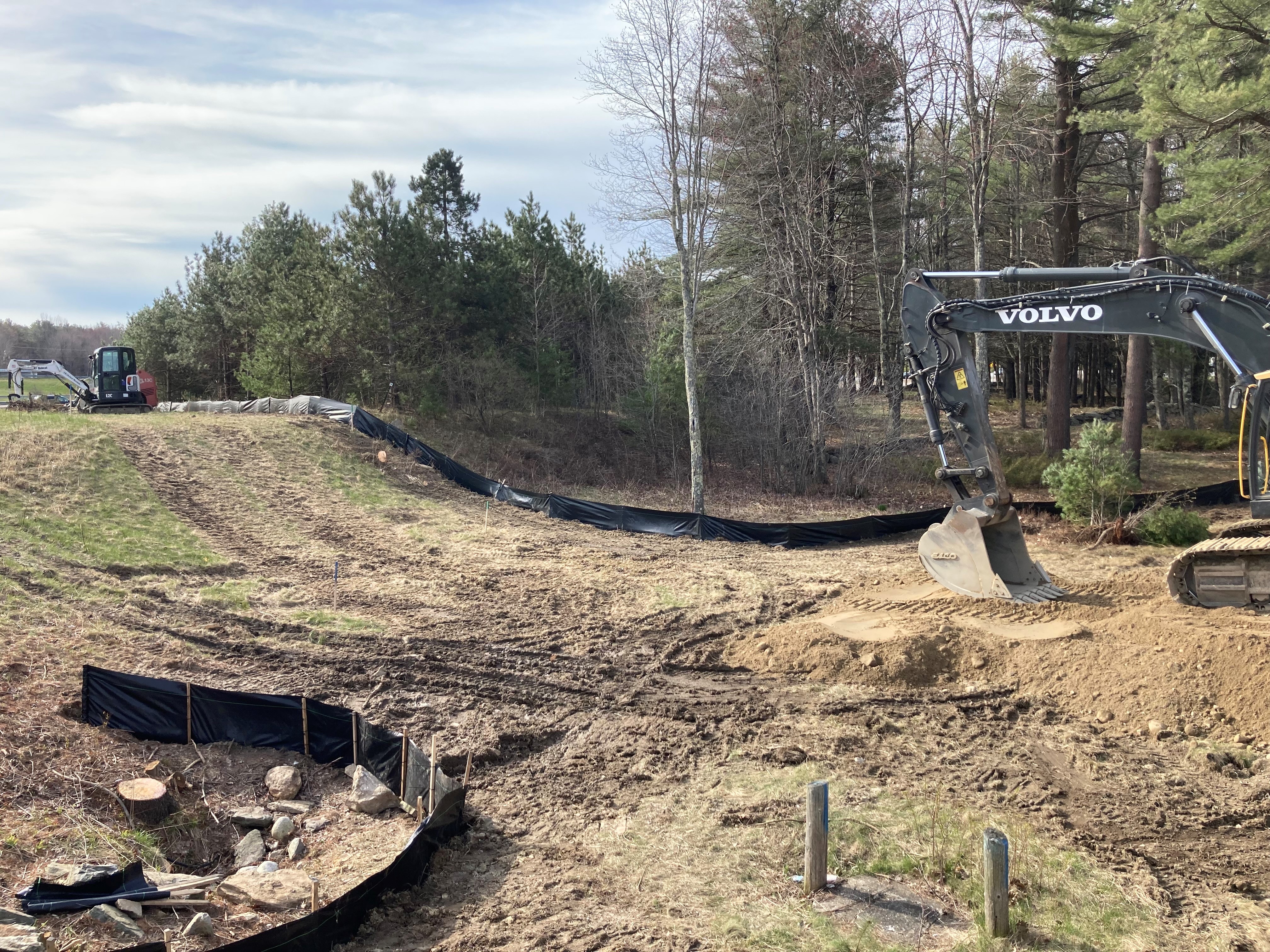

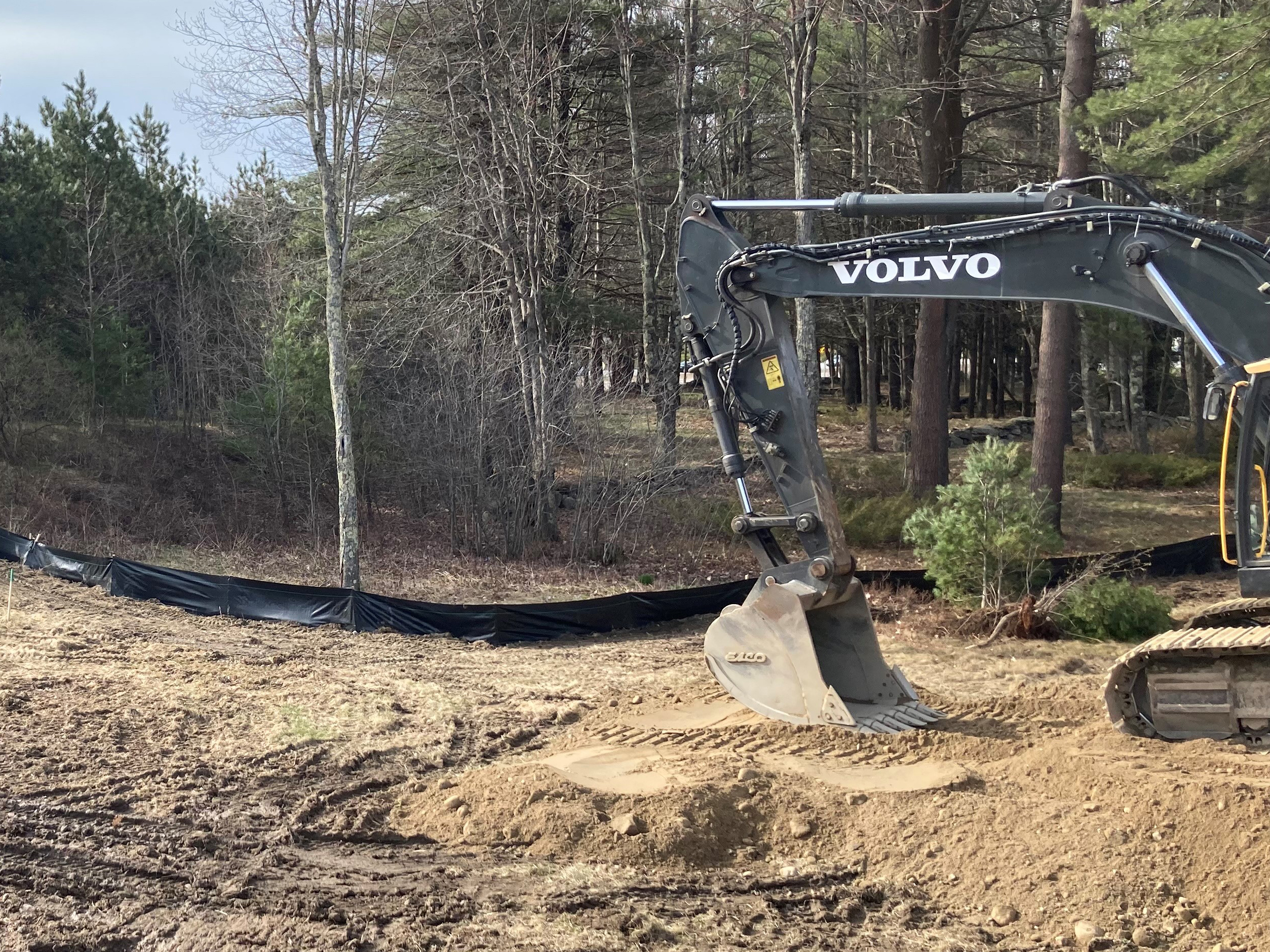

Installing silt fence
Continued clearing of site

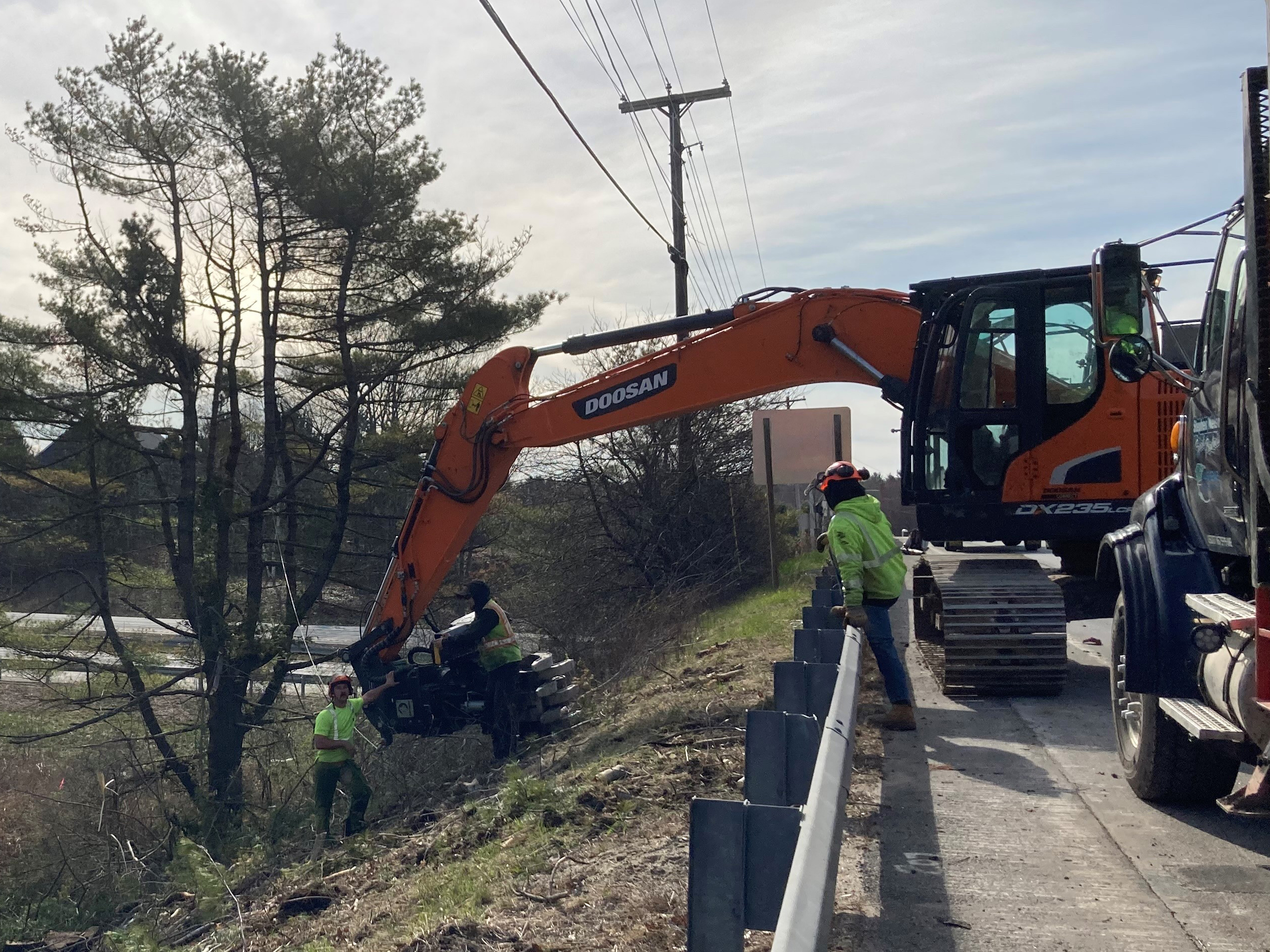

Site clearing

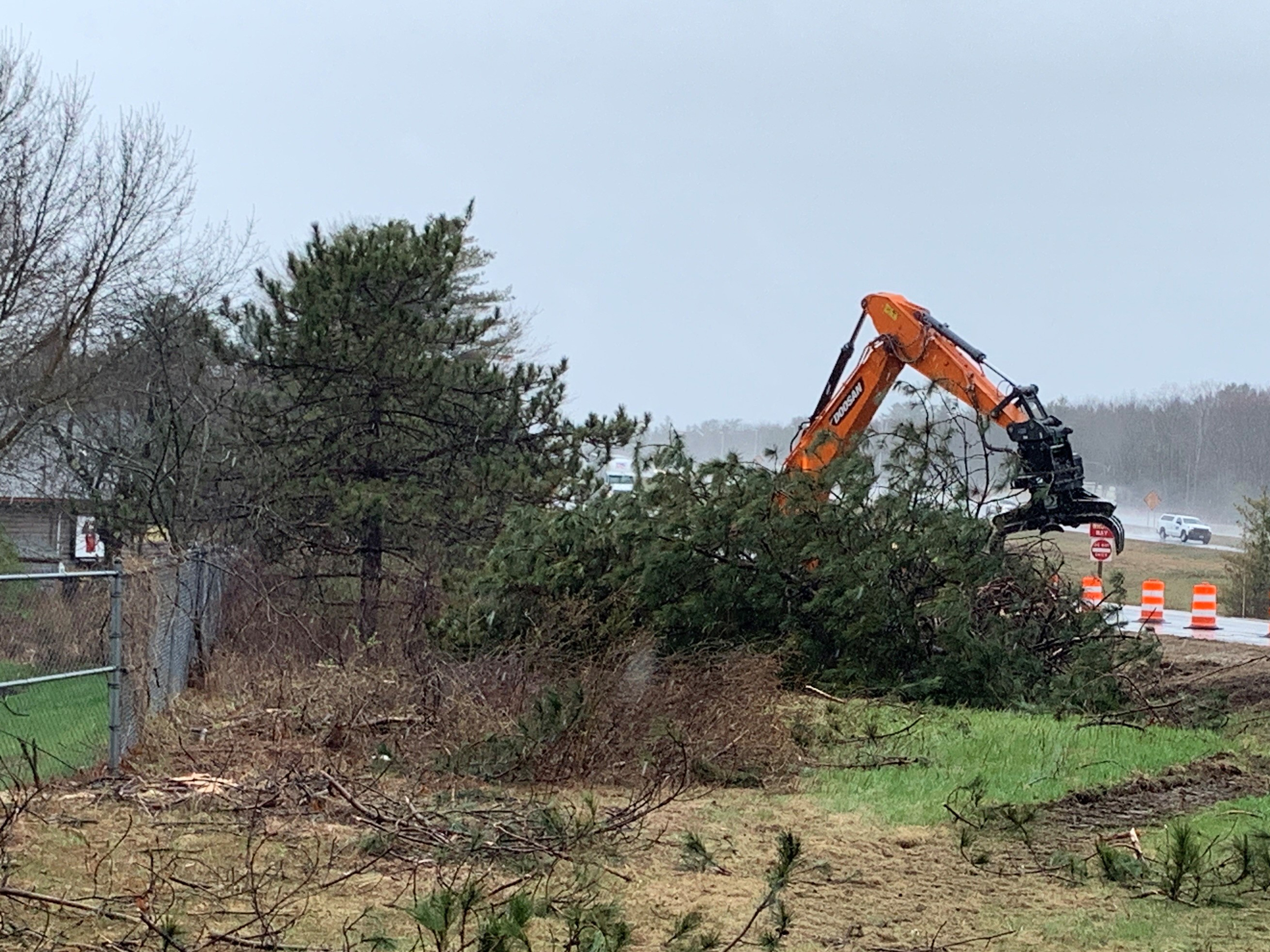

Beginning to clear project site
